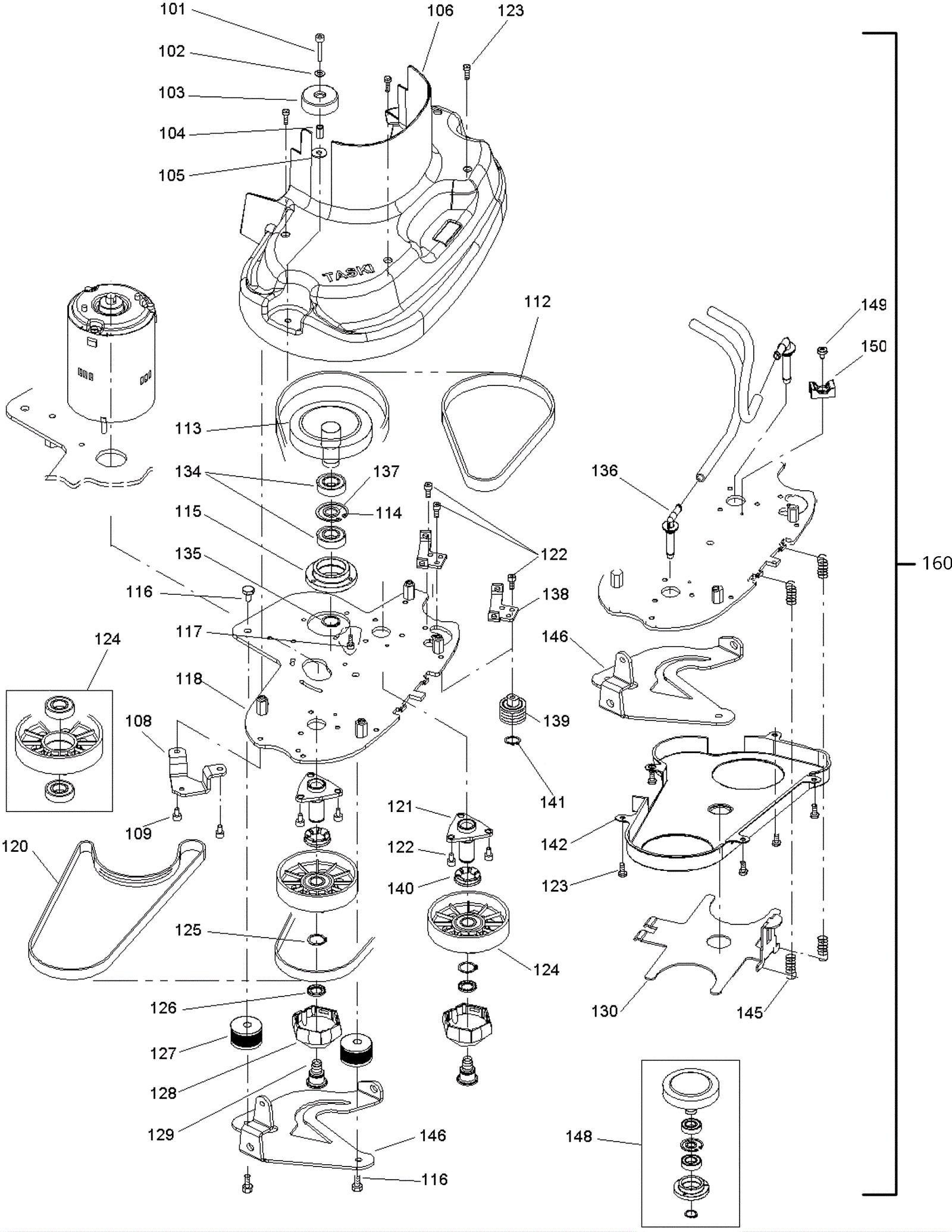

SWINGO 1255B Brush Drive Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-1289 Screw M8 x 35mm socket head cap $4.52 1 ships same day
102 192-0105 Washer M8 $2.44 1 ships same day
103 192-0329 Bumper wheel $3.49 1 ships same day
104 192-1290 Bushing $5.20 1 ships same day
105 192-0604 Washer M8 $2.44 1 ships same day
106 192-9566 Brush housing $62.47 1 ships same day
108 292-5103 Supporting angle $17.17 1 usually ships 30-75 days
109 192-0364 Screw M8 x 12mm socket head $2.52 2 usually ships 30-75 days
112 192-5626 Poly v-belt $21.62 1 usually ships 30-75 days
113 192-4607 Intermediate pulley $45.18 1 ships same day
114 192-0483 Retaining ring $2.44 1 ships same day
115 192-0484 Flanged bearing $74.26 1 usually ships 30-75 days
116 192-1455 Screw M10 x 16mm hex head $4.22 4 ships same day
117 192-1285 Screw M6 x 25mm hex head $2.44 3 ships same day
118 192-9567 Base plate $205.99 1 usually ships 30-75 days
120 192-5623 Poly v-belt $87.96 1 ships same day
121 192-0590 Pulley axle $12.69 2 ships same day
122 192-0364 Screw M8 x 12mm socket head $2.52 9 usually ships 30-75 days
123 192-0348 Screw M8 x 12mm truss head $2.44 9 ships same day
124 192-5814 Pulley with bearings (bearings not available separate) $31.50 2 ships same day
125 192-0503 Retaining ring $2.44 2 ships same day
126 192-6320 Sealing ring $2.44 2 ships same day
127 192-0492 Buffer $9.23 2 ships same day
128 192-3032 Drive hub $15.99 2 ships same day
129 192-2728 Flanged bushing $5.37 2 ships same day
130 192-9568 Bracket $57.83 1 usually ships 30-75 days
134 192-0481 Ball bearing $10.21 2 ships same day
135 192-0485 Retaining ring $5.08 1 usually ships 30-75 days
136 192-1677 Angled nipple $2.44 2 ships same day
137 192-0482 Spacer $2.44 1 ships same day
138 192-2826 Clamp $18.39 1 ships same day
139 192-4543 Axle idler kit $48.30 1 (includes 141) ships same day
140 192-6321 Sealing ring $3.74 2 ships same day
141 192-0075 Retaining ring $5.81 1 ships same day
142 192-9569 Protective cover $10.01 1 usually ships 30-75 days
145 192-9265 Tension spring $2.44 2 usually ships 30-75 days
146 192-9570 Bracket $66.86 1 usually ships 30-75 days
148 292-0068 Pulley kit (includes bearings and clips) $183.15 2 usually ships 30-75 days
149 192-0162 Screw M5 x 8 self tapping forming $2.88 1 ships same day
150 292-8039 Clamp $2.76 1 ships same day
160 292-9104 Brush drive $718.68 1 (includes 101-150) ships same day
N/S 192-1872 Grease $11.99 1 ships same day
