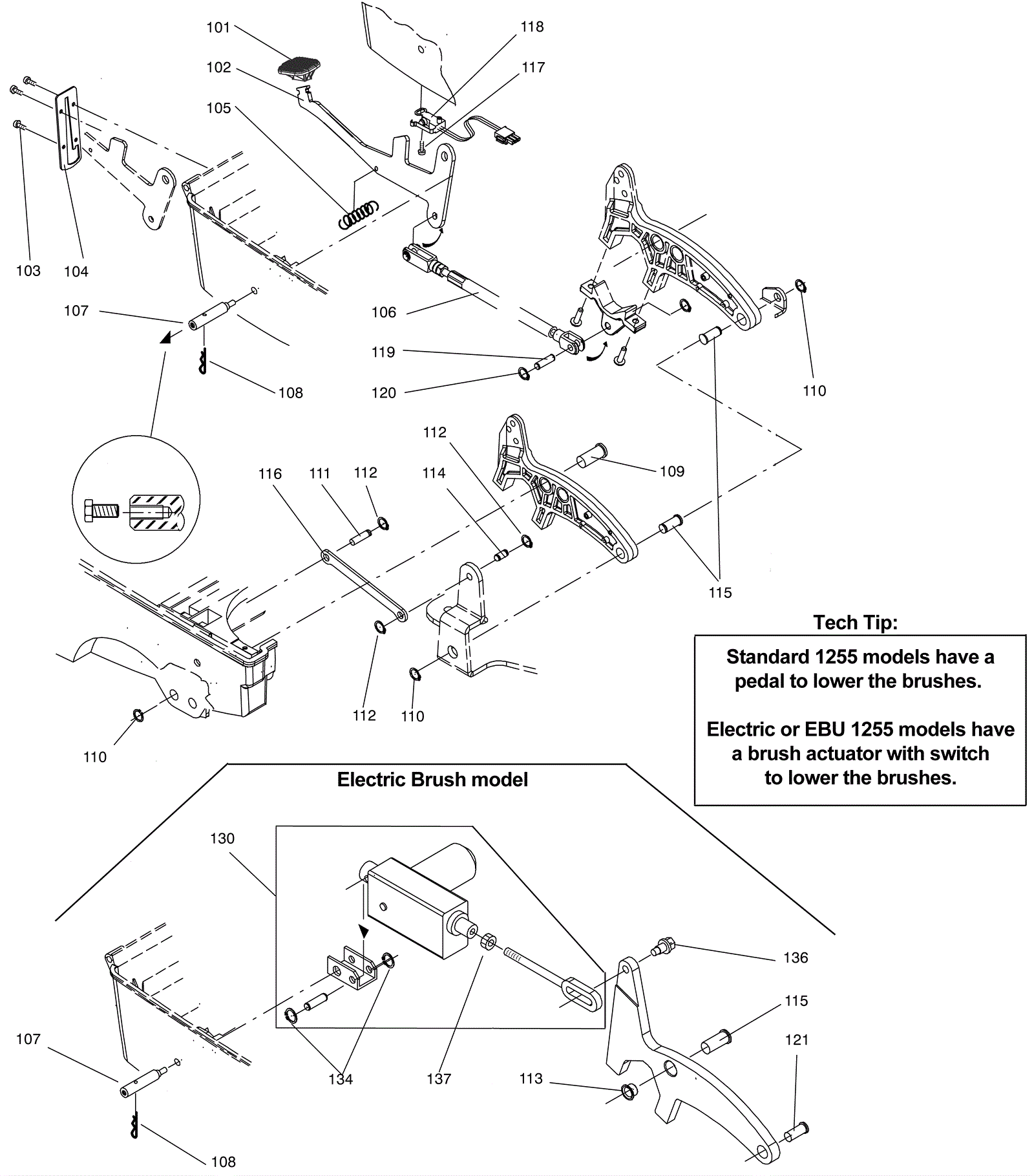

SWINGO 1255B Tool Lowering Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-8903 Pedal pad $2.44 1 ships same day
102 192-3822 Foot lever $31.09 1 ships same day
103 192-1571 Screw M50 x 16mm $2.44 4 ships same day
104 192-4018 Bracket $8.25 1 usually ships 30-75 days
105 192-7071 Tension spring $5.86 1 usually ships 30-75 days
106 192-5894 Rack pusher $96.66 1 usually ships 30-75 days
107 192-8754 Clevis pin $13.67 1 usually ships 30-75 days
108 192-9246 Cotter pin $2.44 1 usually ships 30-75 days
109 192-1775 Axle $8.99 2 (qty 1 for EBU model) ships same day
110 192-0075 Retaining ring $5.81 4 ships same day
111 192-1774 Axle $5.81 1 usually ships 30-75 days
112 192-0086 Snap ring $2.44 3 ships same day
113 192-0074 Slide bearing $2.44 1 usually ships 30-75 days
114 192-1778 Axle $5.25 1 ships same day
115 192-1776 Axle $8.79 2 usually ships 30-75 days
116 192-4761 Lever $17.90 1 usually ships 30-75 days
117 192-1595 Screw M40 x 16mm torx head $2.44 1 ships same day
118 192-4799 Limit switch $64.35 1 ships same day
119 192-1779 Axle $5.20 2 ships same day
120 192-6050 Retaining ring $3.25 4 ships same day
121 192-9255 Bolt $8.67 1 (EBU model) usually ships 30-75 days
130 192-4803 Actuator $485.86 1 (includes 134, 137) usually ships 30-75 days
134 192-6050 Retaining ring $3.25 2 ships same day
136 192-6546 Screw $13.67 1 usually ships 30-75 days
137 192-0347 Nut M8 hex $0.89 1 ships same day
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 (included with 130) ships same day
