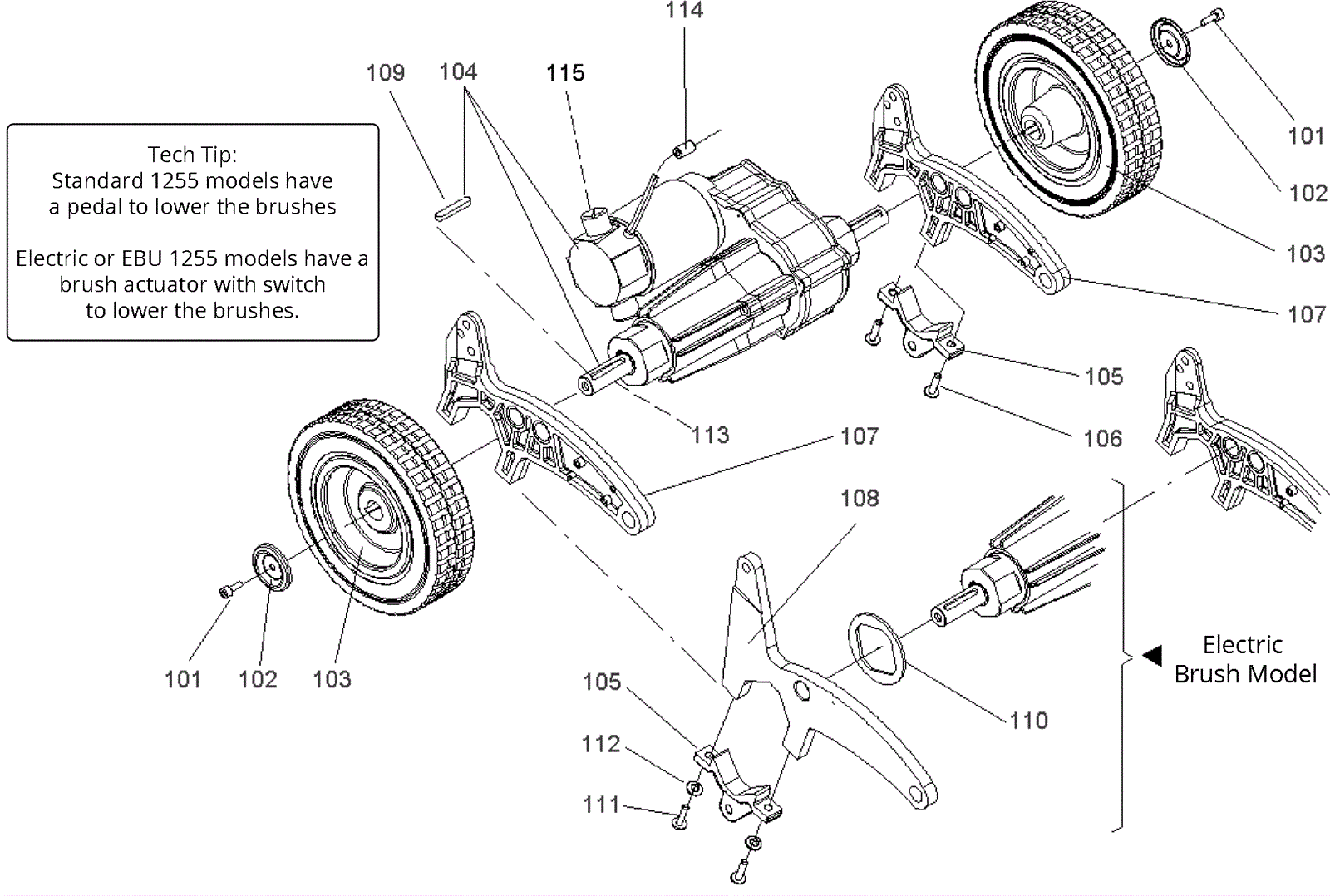

SWINGO 1255B Drive Assembly

#PartDescriptionPriceReqNotesAvailability
101 999-0783 Screw M8-1.25 x 16mm hex head $0.99 2 ships same day
102 192-3077 Disk $4.03 2 ships same day
103a 192-7505 Drive wheel (standard) (gray) $147.50 2 ships same day
103b 192-3397 Nonmarking drive wheel (gray) $118.07 2 (optional) ships same day
103c 192-7160 Traction drive wheel (brown) $151.16 2 (optional) usually ships 30-75 days
104 192-1500 Transaxle drive unit $1,206.25 1 ships same day
105 192-2168 Bracket $8.91 2 ships same day
106 192-1509 Screw 60 x 25 torx head $4.35 4 (qty 2 for EBU model) ships same day
107 192-3209 Cradle $14.29 2 (qty 1 for EBU model) ships same day
108 192-3208 Cradle $296.73 1 (EBU model) usually ships 1-5 days
109 192-4651 Square keyway $2.44 2 usually ships 30-75 days
110 192-3297 Spacer $3.25 1 (EBU model) usually ships 1-5 days
111 192-0158 Screw M6 x 20mm socket head cap $0.89 2 (EBU model) ships same day
112 192-0200 Washer M6 $3.12 2 (EBU model) ships same day
113 192-1872 Grease $11.99 1 ships same day
114 192-1153 Toroidal choke $9.41 1 usually ships 30-75 days
115 192-2665 Carbon brush (pkg of 2) $64.91 1 usually ships 30-75 days
N/S 192-0102 7 3/4 inch cable tie $2.44 2 usually ships 30-75 days
