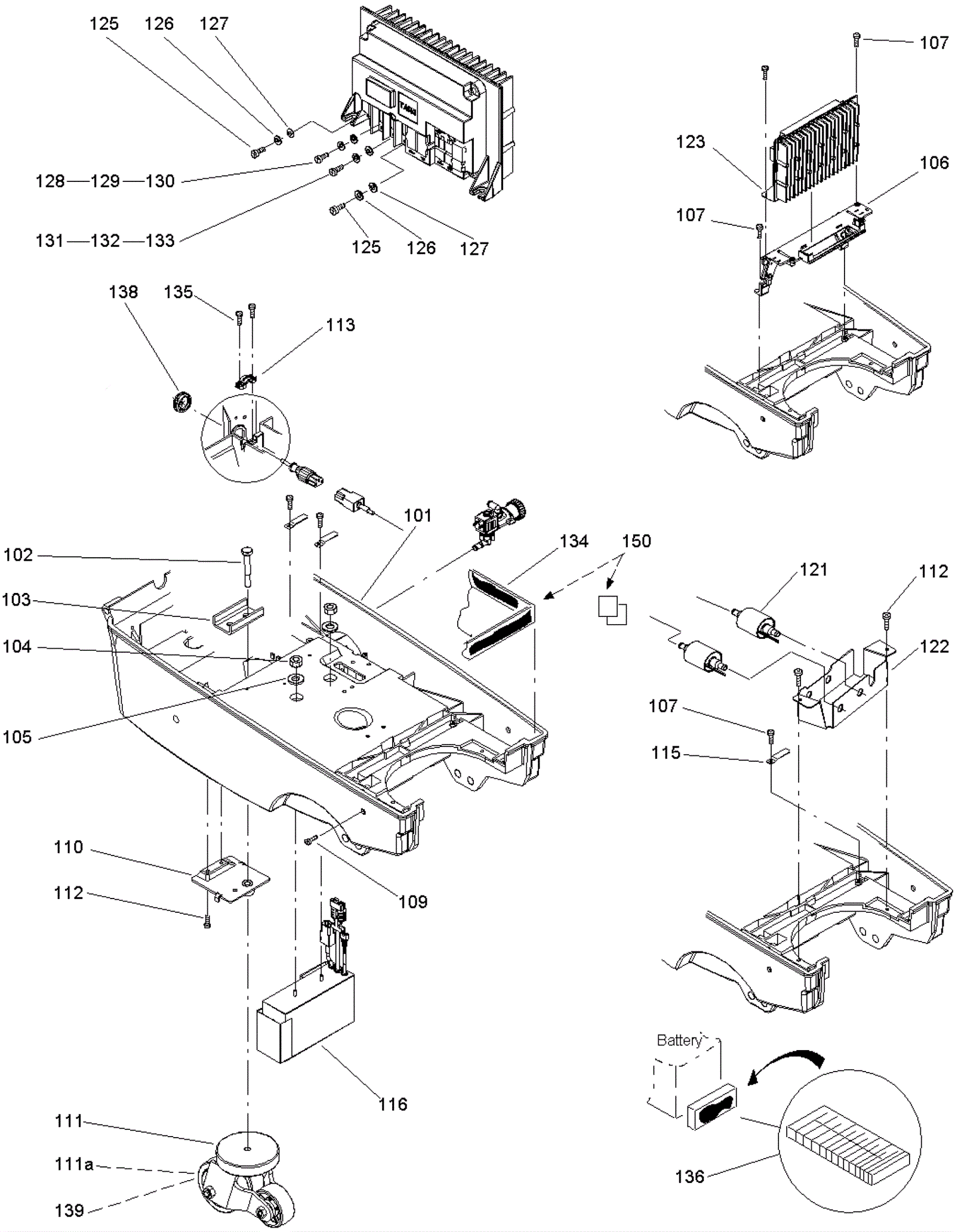

SWINGO 1255B Lower Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-2756 Chassis $523.61 1 ships same day
102 192-4218 Screw M12 x 30mm hex head $2.44 1 ships same day
103 192-1517 Reinforcement plate $3.49 1 usually ships 30-75 days
104 192-0563 Nut M6 self-locking $2.44 2 ships same day
105 192-0216 Washer $1.22 2 ships same day
106 192-9309 Electronic support bracket $12.69 1 ships same day
107 192-1571 Screw M50 x 16mm $2.44 7 ships same day
109 192-1524 Screw M8 x 20mm flange socket head $2.44 2 ships same day
110 192-2167 Bracket $15.21 1 usually ships 30-75 days
111a 192-1521 Caster wheel assembly (brown) $192.12 1 ships same day
111b 192-6380 Caster replacement wheel (brown) (pkg of 2) $133.83 1 (optional) ships same day
112 192-1561 Screw 60 x 20 torx head $2.44 4 ships same day
113 192-2496 Cable clamp $2.44 1 usually ships 30-75 days
115 192-2791 Clamp $2.44 3 usually ships 1-5 days
116 292-5286 24V 25amp onboard battery charger $678.12 1 ships same day
121 192-5845 24V pump $157.47 1 ships same day
122 192-5865 Pump bracket $16.24 1 usually ships 30-75 days
123 192-9532 Power electronics with wiring harness $1,007.18 1 usually ships 30-75 days
125 192-0407 Screw M5 x 10mm socket head cap $0.89 2 ships same day
126 192-1537 Washer M5 serrated lock $2.44 2 ships same day
127 192-0880 Washer M5 $0.89 2 ships same day
128 192-0289 Screw M6 x 10mm socket head $2.44 1 ships same day
129 192-0179 Washer M6 serrated lock $2.44 1 usually ships 30-75 days
130 192-0200 Washer M6 $3.12 1 ships same day
131 192-0425 Screw M4 x 10mm socket head cap $2.44 1 usually ships 30-75 days
132 999-0315 Washer #8 external star lock zinc plated $0.99 1 ships same day
133 192-1195 Washer M4 $2.44 1 ships same day
134 192-7168 Battery tray $74.97 1 usually ships 30-75 days
135 192-5462 Screw M3.5 x 20mm pan head tap $2.44 2 usually ships 30-75 days
136 192-9238 Spacer set $17.27 1 ships same day
138 292-5561 Membrane $4.59 1 usually ships 30-75 days
139 292-0506 Wheel $36.75 2 (optional) usually ships 30-75 days
150 292-5395 1255 wet battery kit $238.15 1 (series 1) usually ships 30-75 days
N/S 192-2790 Clamp $57.09 1 (series 1) usually ships 30-75 days
N/S 192-1589 Fuse (slow blow) $2.44 1 (series 1) ships same day
