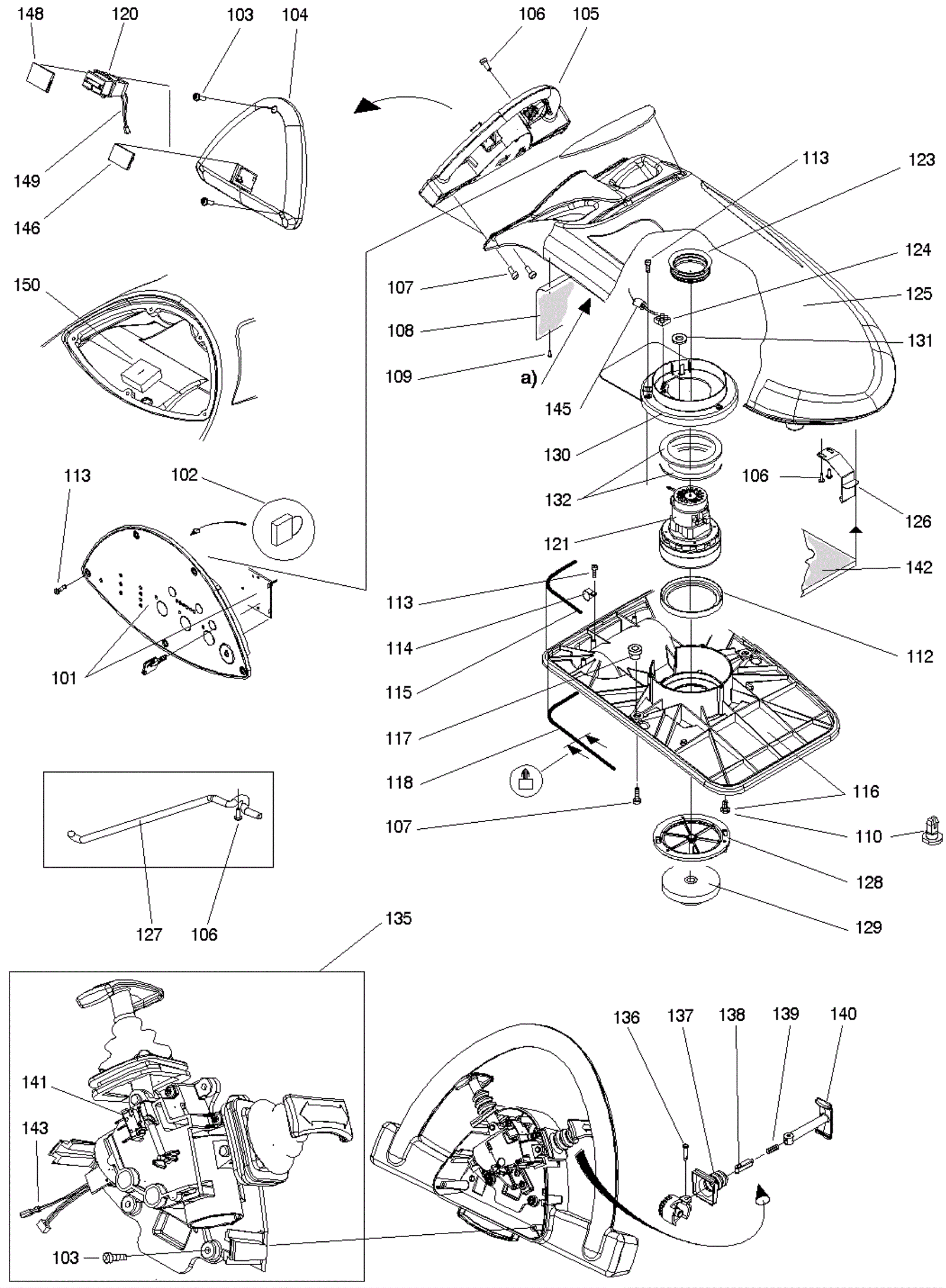

SWINGO 1255B Upper Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-9499 Electronic dashboard assembly (power) $377.97 1 usually ships 30-75 days
102 192-9328 Jumper (OBSOLETE) $2.44 1 (series 1) usually ships 30-75 days
103 192-1595 Screw M40 x 16mm torx head $2.44 7 ships same day
104 192-8941 Handle cover $21.37 1 usually ships 30-75 days
105 192-1587 Handle $92.99 1 ships same day
106 192-1561 Screw 60 x 20 torx head $2.44 6 ships same day
107 192-1557 Screw 60 x 35 torx head $2.44 6 ships same day
108 192-8942 Protection shield $7.45 1 ships same day
109 192-1559 Retaining rivet $4.52 4 ships same day
110 192-8753 Flange bolt $2.44 2 ships same day
112 192-1562 Guide ring $7.39 1 ships same day
113 192-1571 Screw M50 x 16mm $2.44 9 ships same day
114 192-2501 P clamp $4.59 1 ships same day
115 192-6310 Seal strip (sold by the inch) $0.99 61 in ships same day
116 192-1908 Base plate $170.82 1 ships same day
117 192-1575 Buffer $2.44 2 ships same day
118 192-6334 Sealing profile (sold by the inch) $0.99 80 in usually ships 30-75 days
120 192-0033 24V hour meter $81.88 1 (optional) usually ships 30-75 days
121a 192-0770 24V 2 stage vacuum motor $257.63 1 (series 1) ships same day
121b 292-8095 24V 16amp vacuum motor $95.00 1 (series 2) ships same day
123 192-1569 Sealing ring $6.79 1 ships same day
124 192-0260 2-way connection block $2.81 1 ships same day
125 192-9555 Tank cover $330.75 1 usually ships 30-75 days
126 192-4812 Locking lever $24.78 1 usually ships 30-75 days
127 192-9502 Prop rod $7.21 1 ships same day
128 192-3617 Filter $6.91 1 ships same day
129 192-1490 Float $31.38 1 ships same day
130 192-1570 Protection plate $22.34 1 ships same day
131 192-8948 Bushing $2.44 1 usually ships 30-75 days
132 192-1573 Gasket $2.44 2 ships same day
135 192-5014 Mechanic hall sensor assembly $254.53 1 (includes 103, 141, 143) ships same day
136 192-1582 Bolt $2.44 2 ships same day
137 192-1977 Bellows $9.11 2 ships same day
138 192-1584 Grid lever $2.44 2 ships same day
139 192-1585 Pressure spring $5.37 2 ships same day
140 192-6954 Switch lever $6.89 2 ships same day
141 192-8721 Microswitch $27.98 1 ships same day
142 192-5255 Noise absorbing plate $28.18 1 usually ships 30-75 days
143 192-8892 6-way ribbon cable $10.21 1 ships same day
145 192-0732 Ferrite bushing $3.00 1 usually ships 30-75 days
146 192-3548 False cover $4.10 1 ships same day
148 192-8944 Cover $2.52 1 (optional) ships same day
149 192-9486 Wiring harness $7.28 1 (optional) usually ships 30-75 days
150 292-8608 Gasket $2.44 1 usually ships 30-75 days
N/S 192-0973 3 1/4 inch cable tie $2.44 1 usually ships 30-75 days
