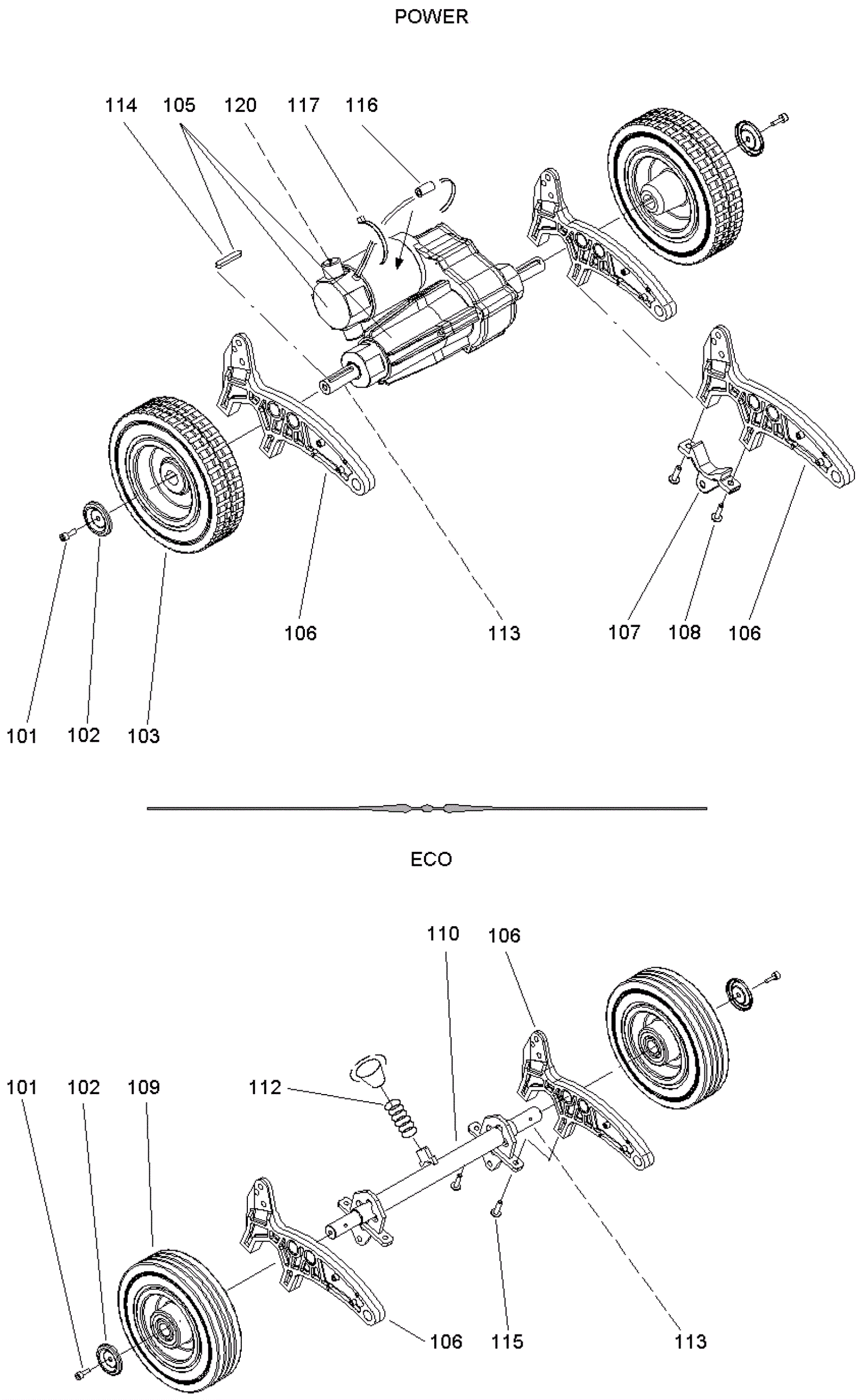

SWINGO 855B Drive Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
101 999-0783 Screw M8-1.25 x 16mm hex head $0.99 2 ships same day
102 192-3077 Disk $4.03 2 ships same day
103a 192-7505 Drive wheel (standard) (gray) $147.50 2 ships same day
103b 192-3397 Nonmarking drive wheel (gray) $118.07 2 (optional) ships same day
103c 192-7160 Traction drive wheel (brown) $151.16 2 (optional) usually ships 30-75 days
105 192-1500 Transaxle drive unit $1,206.25 1 ships same day
106 192-3209 Cradle $14.29 2 ships same day
107 192-2168 Bracket $8.91 2 ships same day
108 192-1509 Screw 60 x 25 torx head $4.35 4 ships same day
109a 192-2672 Wheel $85.59 2 ships same day
109b 192-9975 Wheel $136.09 2 (option) ships same day
110 192-1782 Axle $102.93 1 ships same day
112 192-5689 Pressure spring $11.11 1 usually ships 30-75 days
113 192-1872 Grease $11.99 1 ships same day
114 192-4651 Square keyway $2.44 2 usually ships 30-75 days
115 192-1561 Screw 60 x 20 torx head $2.44 4 ships same day
116 192-1153 Toroidal choke $9.41 1 usually ships 30-75 days
117 192-0102 7 3/4 inch cable tie $2.44 2 usually ships 30-75 days
120 192-2665 Carbon brush (pkg of 2) $64.91 1 usually ships 30-75 days
