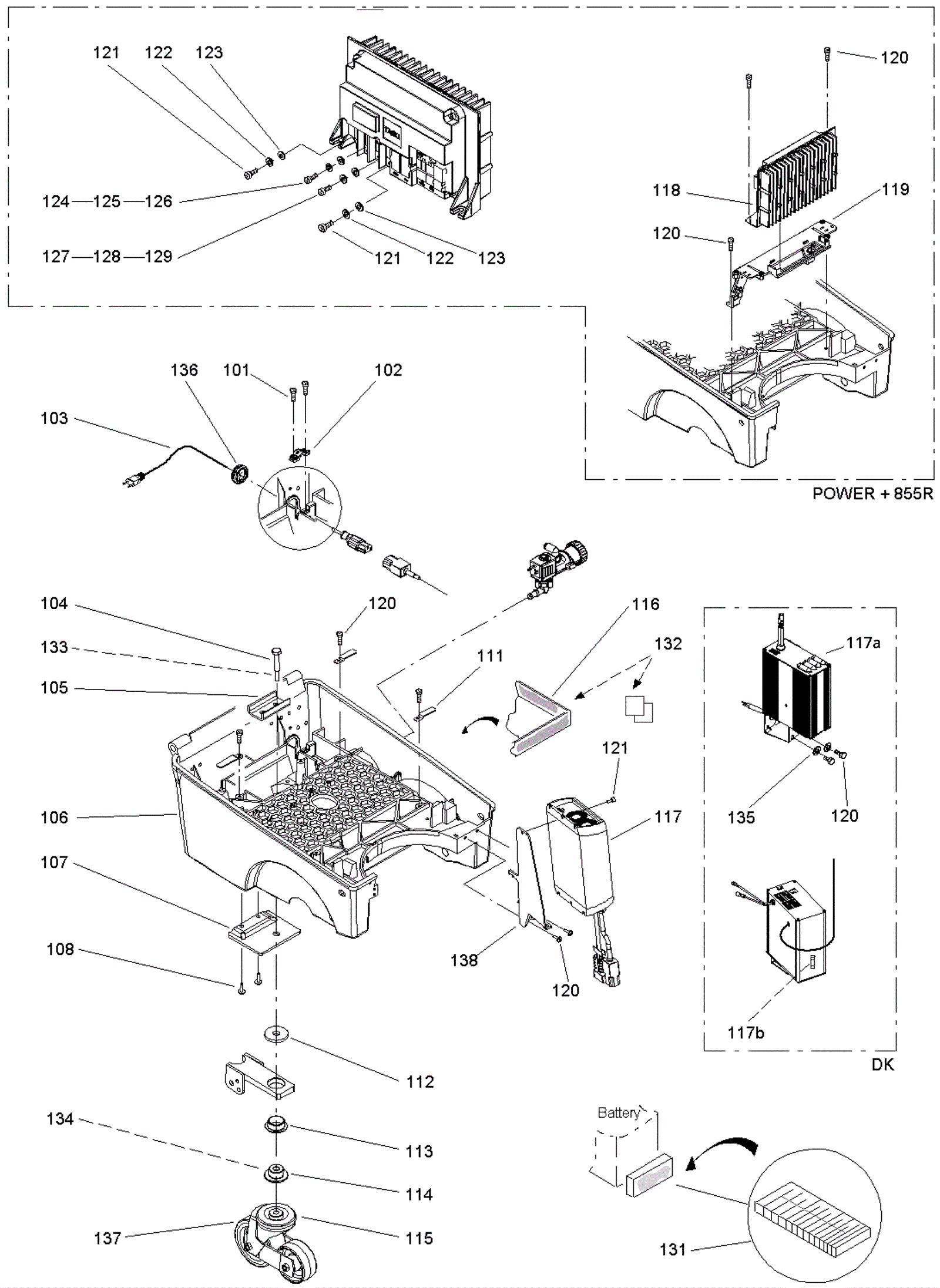

SWINGO 855B Lower Assembly

#PartDescriptionPriceReqNotesAvailability
101a 192-1595 Screw M40 x 16mm torx head $2.44 2 (series 1 and series 2) ships same day
101b 192-5462 Screw M3.5 x 20mm pan head tap $2.22 2 (series 3) usually ships 10-39 days
102 192-2496 Cable clamp $2.00 1 ships same day
103 192-9973 Onboard charger cord $55.31 1 usually ships 10-39 days
104 192-4218 Screw M12 x 30mm hex head $2.44 1 ships same day
105 192-1517 Reinforcement plate $3.49 1 usually ships 10-39 days
106 192-1518 Chassis $245.54 1 ships same day
107 192-9529 Bracket $9.59 1 usually ships 10-39 days
108 192-1561 Screw 60 x 20 torx head $2.44 2 ships same day
111 192-2791 Clamp $2.22 4 usually ships 1-5 days
112 192-7394 Washer M13 $18.56 1 ships same day
113 192-9507 Slide bearing $6.30 1 ships same day
114 192-9530 Bushing $19.36 1 ships same day
115 192-9000 Caster wheel assembly (rust) $116.85 1 ships same day
116 192-7167 Battery tray $45.69 1 ships same day
117a 292-8595 24V 13Ah onboard battery charger $547.01 1 ships same day
117b 192-8581 Slow blow fine wire fuse 25 amp $2.22 1 ships same day
118 192-9532 Power electronics with wiring harness $824.88 1 ships same day
119 192-9309 Electronic support bracket $11.54 1 ships same day
120 192-1571 Screw M50 x 16mm $2.44 10 ships same day
121 192-0407 Screw M5 x 10mm socket head cap $0.89 3 ships same day
122 192-1537 Washer M5 serrated lock $2.22 2 ships same day
123 192-0880 Washer M5 $0.89 2 ships same day
124 192-0289 Screw M6 x 10mm socket head $2.22 1 ships same day
125 192-0179 Washer M6 serrated lock $0.89 1 ships same day
126 192-0200 Washer M6 $3.12 1 ships same day
127 192-0425 Screw M4 x 10mm socket head cap $0.89 1 ships same day
128 999-0315 Washer #8 external star lock zinc plated $0.90 1 ships same day
129 192-1195 Washer M4 $2.22 1 ships same day
131 192-9238 Spacer set $17.27 1 ships same day
132 192-9533 Wet battery tray kit $128.58 1 (battery tray, spacers, and brackets) usually ships 1-5 days
133 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
134 192-1872 Grease $11.99 1 ships same day
135 192-1537 Washer M5 serrated lock $2.22 2 ships same day
136 292-5561 Membrane $4.17 1 usually ships 10-39 days
137 292-8621 Wheel $50.48 1 (option) ships same day
138 292-8607 Charger bracket (swingo 755B/855B) $53.80 1 ships same day
