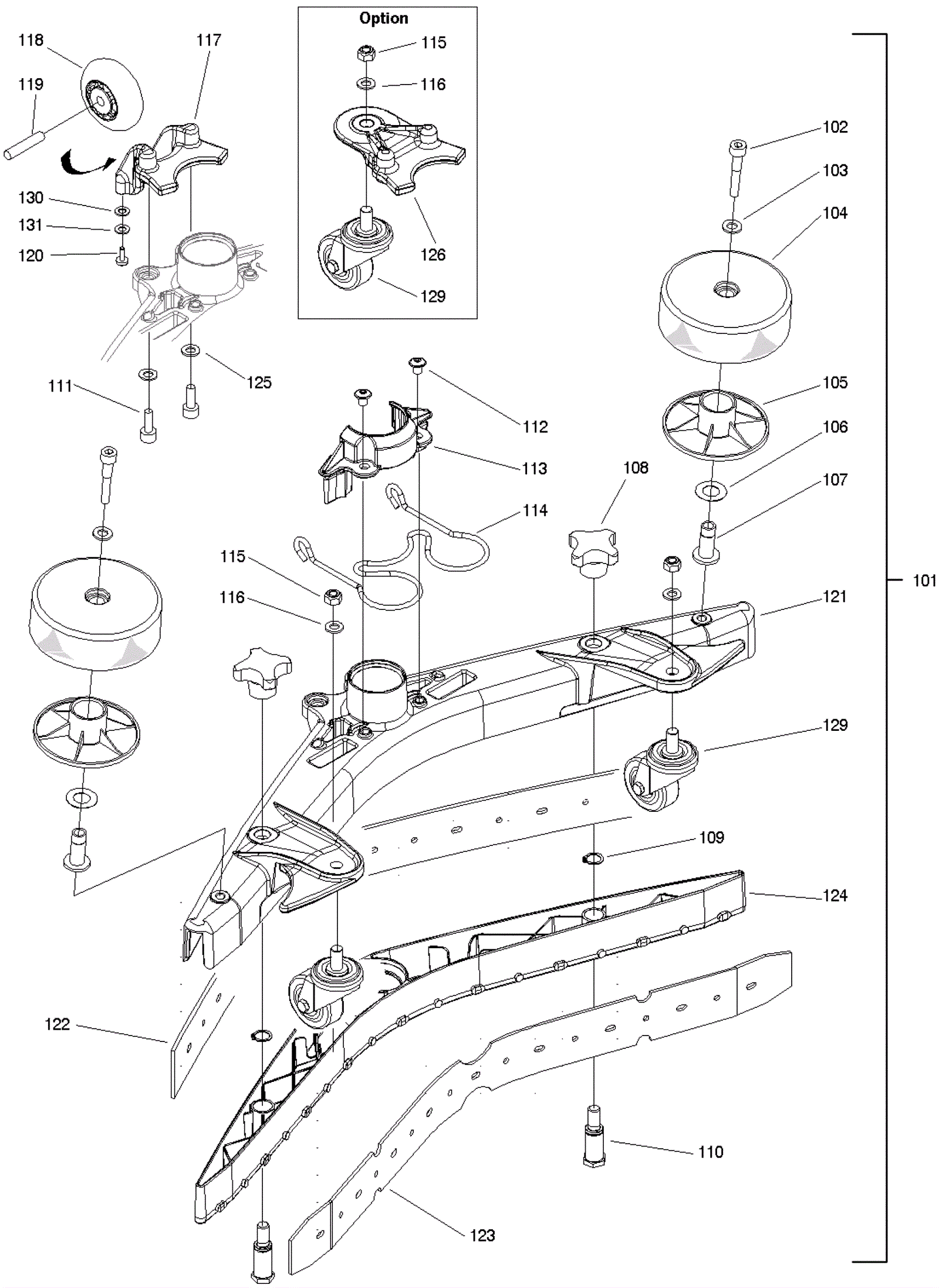

# | Part | Description | Price | Req | Notes | Availability |
101 |
192-3898
|
Squeegee assembly |
$485.96
|
1 |
(includes 102-131) |
ships same day |
102 |
192-0104
|
Screw M8 x 45mm socket head cap |
$2.44
|
2 |
|
ships same day |
103 |
192-0105
|
Washer M8 |
$2.44
|
2 |
|
ships same day |
104 |
192-1397
|
Guide wheel |
$5.25
|
2 |
|
ships same day |
105 |
192-0108
|
Retaining disc |
$4.71
|
2 |
|
ships same day |
106 |
192-1344
|
Wave washer |
$6.42
|
2 |
|
ships same day |
107 |
192-1354
|
Bushing |
$7.94
|
2 |
|
ships same day |
108 |
292-0004
|
Star knob |
$4.22
|
2 |
|
ships same day |
109 |
192-0075
|
Retaining ring |
$5.81
|
2 |
|
ships same day |
110 |
292-0005
|
Screw M10 hex head |
$23.52
|
2 |
|
usually ships 30-75 days |
111 |
192-0036
|
Screw M8 x 20mm socket head |
$2.44
|
2 |
|
ships same day |
112 |
192-1524
|
Screw M8 x 20mm flange socket head |
$2.44
|
2 |
|
ships same day |
113 |
192-9515
|
Cover |
$7.65
|
1 |
|
ships same day |
114 |
192-9516
|
Click spring |
$108.85
|
1 |
|
ships same day |
115 |
192-6339
|
Nut M10 self locking |
$2.44
|
2 |
|
ships same day |
116 |
192-0496
|
Washer M10 |
$2.44
|
2 |
|
ships same day |
117 |
292-5366
|
Adapter |
$24.66
|
1 |
|
ships same day |
118 |
192-8746
|
Wheel 2.5 x 1 inch |
$105.69
|
1 |
|
usually ships 30-75 days |
119a |
192-9215
|
Axle |
$19.00
|
1 |
|
usually ships 30-75 days |
119b |
292-8609
|
Bolt M8 x 10mm |
$7.57
|
1 |
(optional) |
usually ships 30-75 days |
120 |
192-0101
|
Screw M5 x 12mm self tapping form |
$2.44
|
2 |
|
ships same day |
121 |
292-5367
|
Upper squeegee body |
$217.20
|
1 |
|
ships same day |
122a |
192-1487
|
Squeegee blade 29-1/2 inch urethane rear |
$86.69
|
1 |
|
ships same day |
122b |
292-0920
|
Squeegee blade |
$23.28
|
1 |
(optional) |
ships same day |
123a |
192-1486
|
Squeegee blade 28 inch urethane front |
$45.42
|
1 |
|
ships same day |
123b |
192-9522
|
Squeegee blade 27 inch urethane (closed front blade) |
$111.19
|
1 |
(optional) |
ships same day |
123c |
292-8610
|
Squeegee blade 27 inch front |
$104.52
|
1 |
(optional) |
ships same day |
124 |
292-5368
|
Lower squeegee body |
$23.94
|
1 |
|
ships same day |
125 |
192-0105
|
Washer M8 |
$2.44
|
2 |
|
ships same day |
126 |
192-3899
|
Adapter |
$29.55
|
1 |
|
ships same day |
129 |
192-9520
|
Caster wheel |
$16.24
|
2 |
|
ships same day |
130 |
292-8611
|
Washer |
$2.44
|
2 |
|
ships same day |
131 |
192-0971
|
Washer |
$2.44
|
2 |
|
ships same day |
