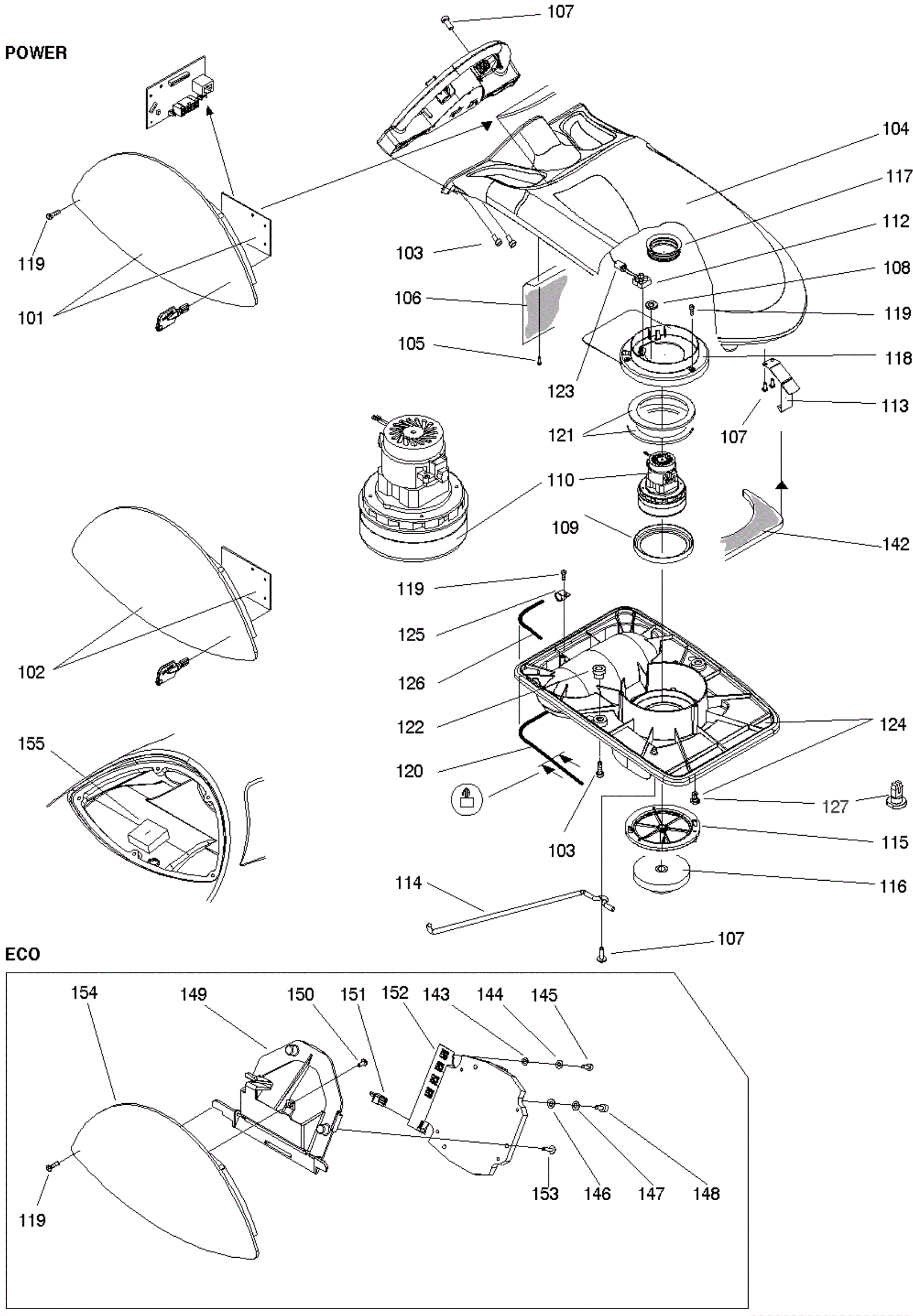

SWINGO 755B Upper Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-9499 Electronic dashboard assembly (power) $377.97 1 (power) (includes control board) usually ships 30-75 days
102 292-0480 Control board set $498.56 1 (855R) ships same day
103 192-1557 Screw 60 x 35 torx head $2.44 6 ships same day
104 192-9501 Tank cover $292.86 1 usually ships 30-75 days
105 192-1559 Retaining rivet $4.52 4 ships same day
106 192-8942 Protection shield $7.45 1 ships same day
107 192-1561 Screw 60 x 20 torx head $2.44 6 ships same day
108 192-8948 Bushing $2.44 1 usually ships 30-75 days
109 192-1562 Guide ring $7.39 1 ships same day
110 192-0770 24V 2 stage vacuum motor $257.63 1 ships same day
112 192-0260 2-way connection block $2.81 1 ships same day
113 192-4812 Locking lever $24.78 1 usually ships 30-75 days
114 192-9502 Prop rod $7.21 1 ships same day
115 192-3617 Filter $6.91 1 ships same day
116 192-1490 Float $31.38 1 ships same day
117 192-1569 Sealing ring $6.79 1 ships same day
118 192-1570 Protection plate $22.34 1 ships same day
119 192-1571 Screw M50 x 16mm $2.44 9 ships same day
120 192-6334 Sealing profile (sold by the inch) $0.99 67 in ships same day
121 192-1573 Gasket $2.44 2 ships same day
122 192-1575 Buffer $2.44 2 ships same day
123 192-0732 Ferrite bushing $3.00 1 usually ships 30-75 days
124 192-1564 Base plate $78.27 1 usually ships 30-75 days
125 192-2501 P clamp $4.59 1 ships same day
126 192-6310 Seal strip (sold by the inch) $0.99 54 in ships same day
127 192-8753 Flange bolt $2.44 2 ships same day
142 192-1591 Noise absorbing plate $16.49 1 usually ships 30-75 days
143a 192-1195 Washer M4 $2.44 1 (new style) (eco) ships same day
143b 192-0200 Washer M6 $3.12 1 (old style) (eco) ships same day
144a 999-0315 Washer #8 external star lock zinc plated $0.99 1 (new style) (eco) ships same day
144b 192-0179 Washer M6 serrated lock $2.44 1 (old style) (eco) usually ships 30-75 days
145a 192-0425 Screw M4 x 10mm socket head cap $2.44 1 (new style) (eco) usually ships 30-75 days
145b 192-0506 Screw M6 x 12mm socket head $2.44 1 (old style) (eco) usually ships 30-75 days
146 192-0880 Washer M5 $0.89 3 (eco) ships same day
147 192-1537 Washer M5 serrated lock $2.44 3 (eco) ships same day
148 192-0407 Screw M5 x 10mm socket head cap $0.89 3 (eco) ships same day
149 292-5373 Support $10.75 1 (eco) usually ships 30-75 days
150 192-8584 Screw 40 x 8 $2.44 1 (eco) usually ships 30-75 days
151 192-8806 Jumper $15.75 1 (eco) ships same day
152 192-8794 Control board (eco) $549.25 1 (eco) ships same day
153 192-1595 Screw M40 x 16mm torx head $2.44 2 (eco) ships same day
154 292-5372 Electronic dashboard (eco) $164.59 1 (eco) ships same day
155 292-8608 Gasket $2.44 1 usually ships 30-75 days
