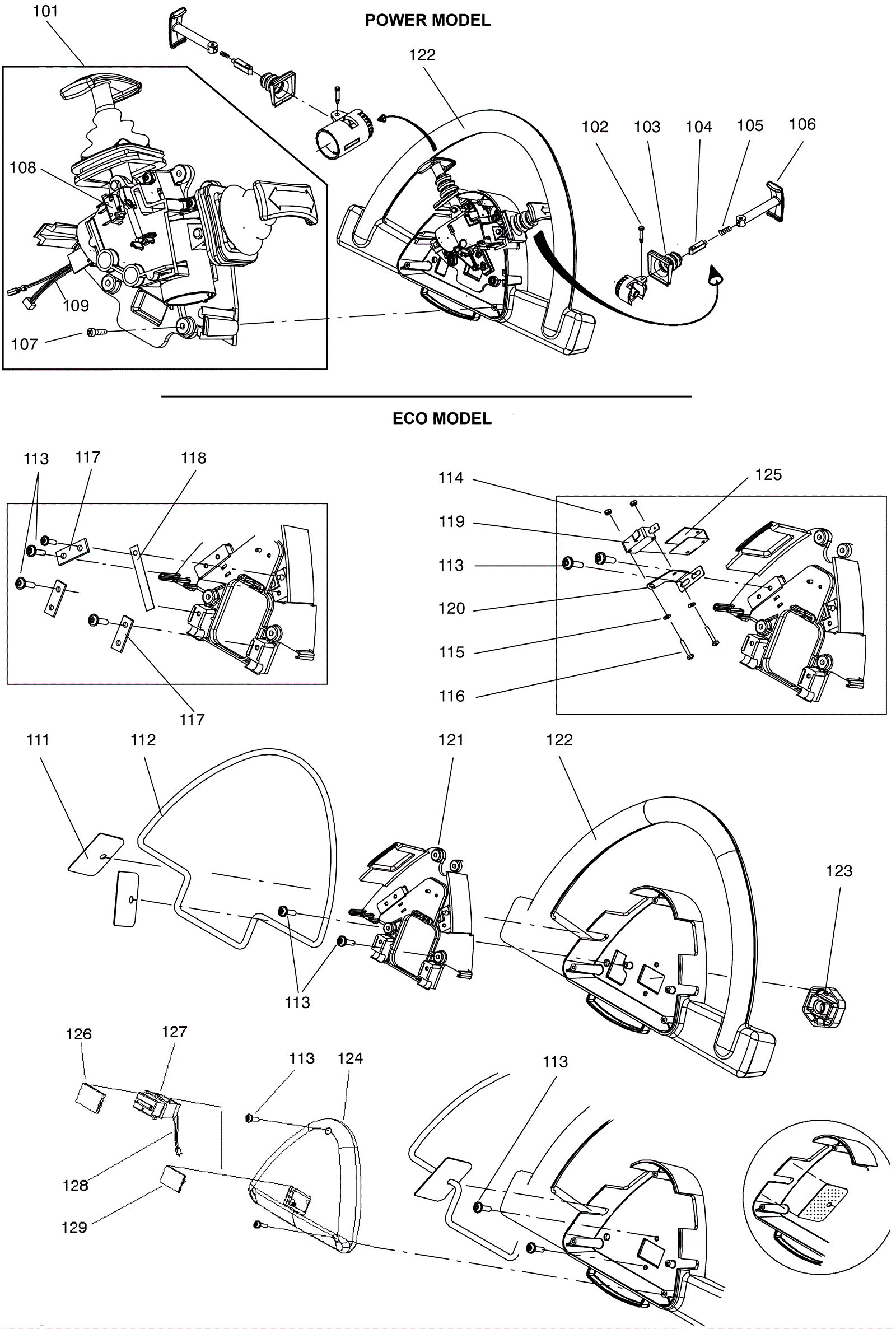

SWINGO 855B Handle Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-5014 Mechanic hall sensor assembly $254.53 1 (includes 107-109) ships same day
102 192-1582 Bolt $2.44 2 ships same day
103 192-1977 Bellows $9.11 2 ships same day
104 192-1584 Grid lever $2.44 2 ships same day
105 192-1585 Pressure spring $5.37 2 ships same day
106 192-6954 Switch lever $6.89 2 ships same day
107 192-1595 Screw M40 x 16mm torx head $2.44 4 ships same day
108 192-8721 Microswitch $27.98 1 ships same day
109 192-8892 6-way ribbon cable $10.21 1 ships same day
111 192-1593 Protection shield $2.44 2 usually ships 1-5 days
112 192-1594 Switching bow $17.09 1 usually ships 30-75 days
113 192-1595 Screw M40 x 16mm torx head $2.44 15 ships same day
114 192-0048 Nut M3 hex $2.44 2 usually ships 30-75 days
115 192-0677 Washer M3 $2.44 2 usually ships 30-75 days
116 192-0054 Screw M3 x 16mm raised cheese head $4.76 2 ships same day
117 192-1596 Clamp $5.20 3 usually ships 30-75 days
118 192-1597 Spring $6.84 1 usually ships 30-75 days
119 192-0681 Microswitch $13.51 1 ships same day
120 192-1598 Switch bracket $4.59 1 usually ships 1-5 days
121 192-2166 Bracket $11.35 1 ships same day
122 192-1587 Handle $92.99 1 ships same day
123 192-1600 Cable inlet $2.44 1 usually ships 1-5 days
124 192-8941 Handle cover $21.37 1 usually ships 30-75 days
125 192-6951 Switch insulation $3.66 1 usually ships 30-75 days
126 192-3548 False cover $4.10 1 ships same day
127 192-0033 24V hour meter $81.88 1 (optional) usually ships 30-75 days
128 192-9486 Wiring harness $7.28 1 (optional) usually ships 30-75 days
129 192-8944 Cover $2.52 1 (optional) ships same day
