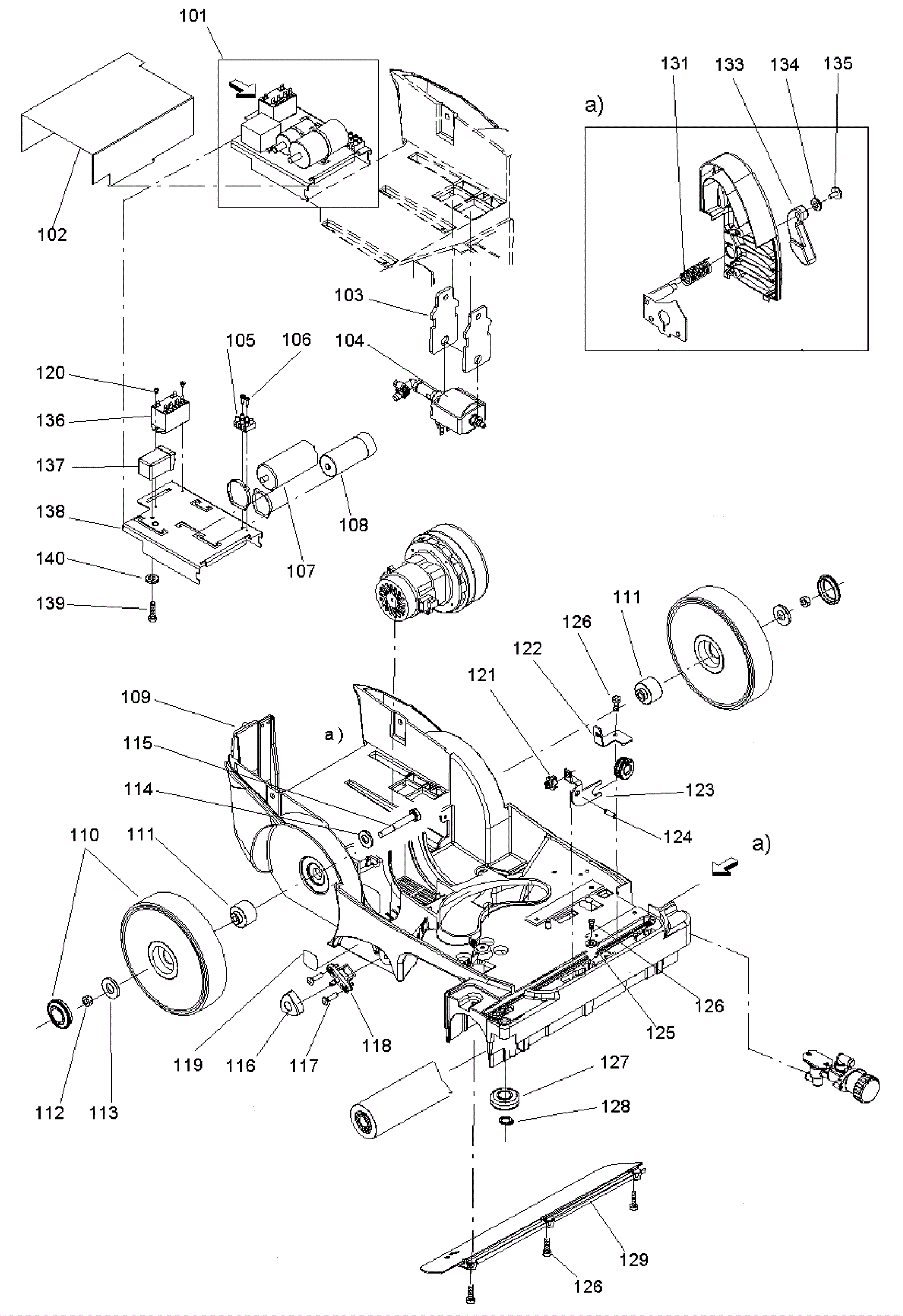

| # | Part | Description |
Req | Notes | Availability |
|---|
101 |
292-9096
|
Electric panel |
1 |
(version 2) |
|
102 |
292-0110
|
Cover |
1 |
|
|
103 |
292-0111
|
Plate |
1 |
|
|
104 |
292-0112
|
120V pump |
1 |
|
|
105 |
192-0954
|
3 way connection block |
1 |
|
|
106 |
192-8252
|
Screw 3-1/2 x 16 pan head tap screw |
2 |
|
|
107 |
292-0338
|
Run capacitor |
1 |
|
|
108 |
192-0664
|
Start capacitor (black) |
1 |
|
|
109 |
192-8837
|
Chassis |
1 |
|
|
110 |
192-8838
|
Wheel |
2 |
(includes hubcap) |
|
111 |
192-8839
|
Bushing |
2 |
|
|
112 |
192-6339
|
Nut M10 self locking |
2 |
|
|
113 |
192-0496
|
Washer M10 |
2 |
|
|
114 |
192-0619
|
Washer |
2 |
|
|
115 |
192-0865
|
Screw M10 x 70 hex head |
2 |
|
|
116 |
192-8819
|
Squeegee knob without plug |
1 |
|
|
117 |
192-2994
|
Screw M5 x 10 countersunk head |
2 |
|
|
118 |
292-0114
|
Dosing control |
1 |
|
|
119 |
292-0115
|
Water regulation decal |
1 |
|
|
120 |
192-5450
|
Screw B 4 13/64 x 9 1/2 pan head tap |
2 |
|
|
121 |
192-1883
|
Ball socket |
1 |
|
|
122 |
192-8841
|
Bracket |
1 |
|
|
123 |
192-8842
|
Lever |
1 |
|
|
124 |
192-9183
|
Axle |
1 |
|
|
125 |
192-0149
|
Washer |
1 |
|
|
126a |
192-0767
|
Screw KA 40 x 10 |
4 |
(before 02.2014) |
|
126b |
192-1066
|
Screw 40 x 12 |
5 |
(after 02.2014) |
|
127 |
192-8823
|
Guide wheel |
1 |
|
|
128 |
192-2776
|
Snap ring |
1 |
|
|
129 |
192-8843
|
Protection shield |
1 |
|
|
131 |
292-0116
|
Torsion spring |
1 |
|
|
133 |
292-0117
|
Lever |
1 |
|
|
134 |
192-0325
|
Washer |
1 |
|
|
135 |
192-0148
|
Screw M4 x 10mm raised cheese head |
1 |
|
|
136 |
292-0118
|
120V contactor |
1 |
|
|
137 |
192-0942
|
Relay |
1 |
|
|
138 |
292-0119
|
Support |
1 |
|
|
139 |
192-0160
|
Screw M5 x 10mm raised head |
1 |
|
|
140 |
192-1537
|
Washer M5 serrated lock |
1 |
|
|
143 |
292-8528
|
.5ml capsule loctite medium strength thread lock (red) |
1 |
|
|
N/S |
192-0973
|
3 1/4 inch cable tie |
3 |
|
|
N/S |
192-0102
|
7 3/4 inch cable tie |
5 |
|
|
