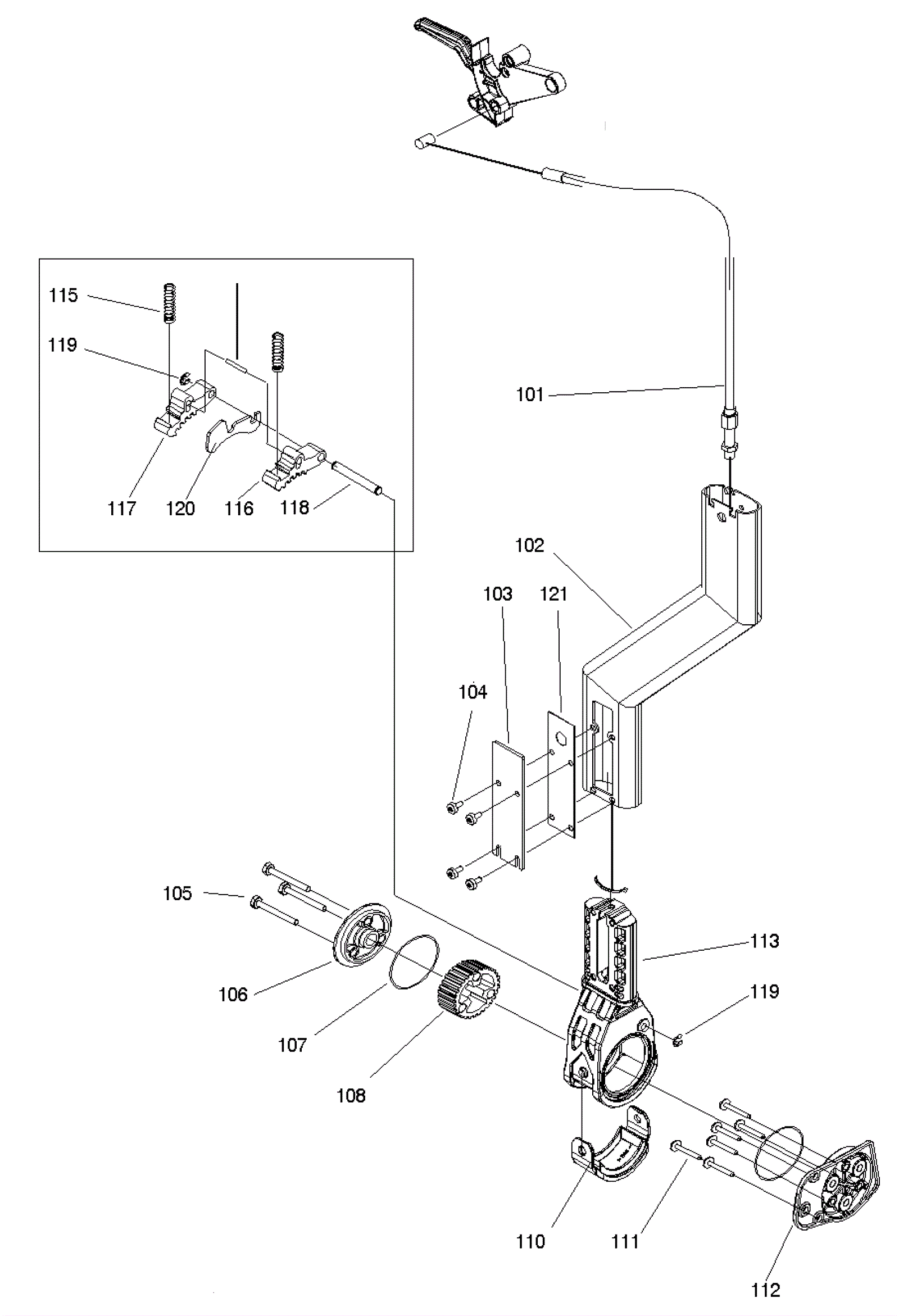

| # | Part | Description |
Req | Notes | Availability |
|---|
101 |
292-0107
|
Cable |
1 |
|
|
102 |
292-0108
|
Guide bar |
1 |
|
|
103 |
192-8809
|
Plate |
1 |
|
|
104 |
192-9592
|
+ |
4 |
|
|
105a |
192-9262
|
Screw M8 x 65mm socket head |
3 |
(version 1) |
|
105b |
192-1039
|
Screw M8 x 60mm hex head |
3 |
(version 2) |
|
106 |
192-8810
|
Retaining plate |
1 |
|
|
107 |
192-8912
|
O-ring |
2 |
|
|
108a |
192-9965
|
Toothed wheel |
1 |
|
|
108b |
292-8602
|
Toothed wheel (T30) |
1 |
(version 2) |
|
110 |
192-9966
|
Cover |
1 |
|
|
111 |
192-1557
|
Screw 60 x 35 torx head |
6 |
|
|
112 |
292-0109
|
Support |
1 |
|
|
113a |
292-9454
|
Articulation |
1 |
(version 1) |
|
113b |
292-9454
|
Articulation |
1 |
(version 2) |
|
115 |
192-9955
|
Pressure spring |
2 |
|
|
116 |
192-9958
|
Toothed rocker |
1 |
|
|
117 |
192-9956
|
Toothed rocker |
1 |
|
|
118 |
192-9959
|
Axle |
1 |
|
|
119 |
192-0902
|
Snap ring |
2 |
|
|
120 |
192-9957
|
Plate |
1 |
|
|
121 |
292-8603
|
Gasket |
1 |
(version 2) |
|
N/S |
192-1872
|
Grease |
1 |
|
|
N/S |
292-8528
|
.5ml capsule loctite medium strength thread lock (red) |
1 |
(version 2) |
|
