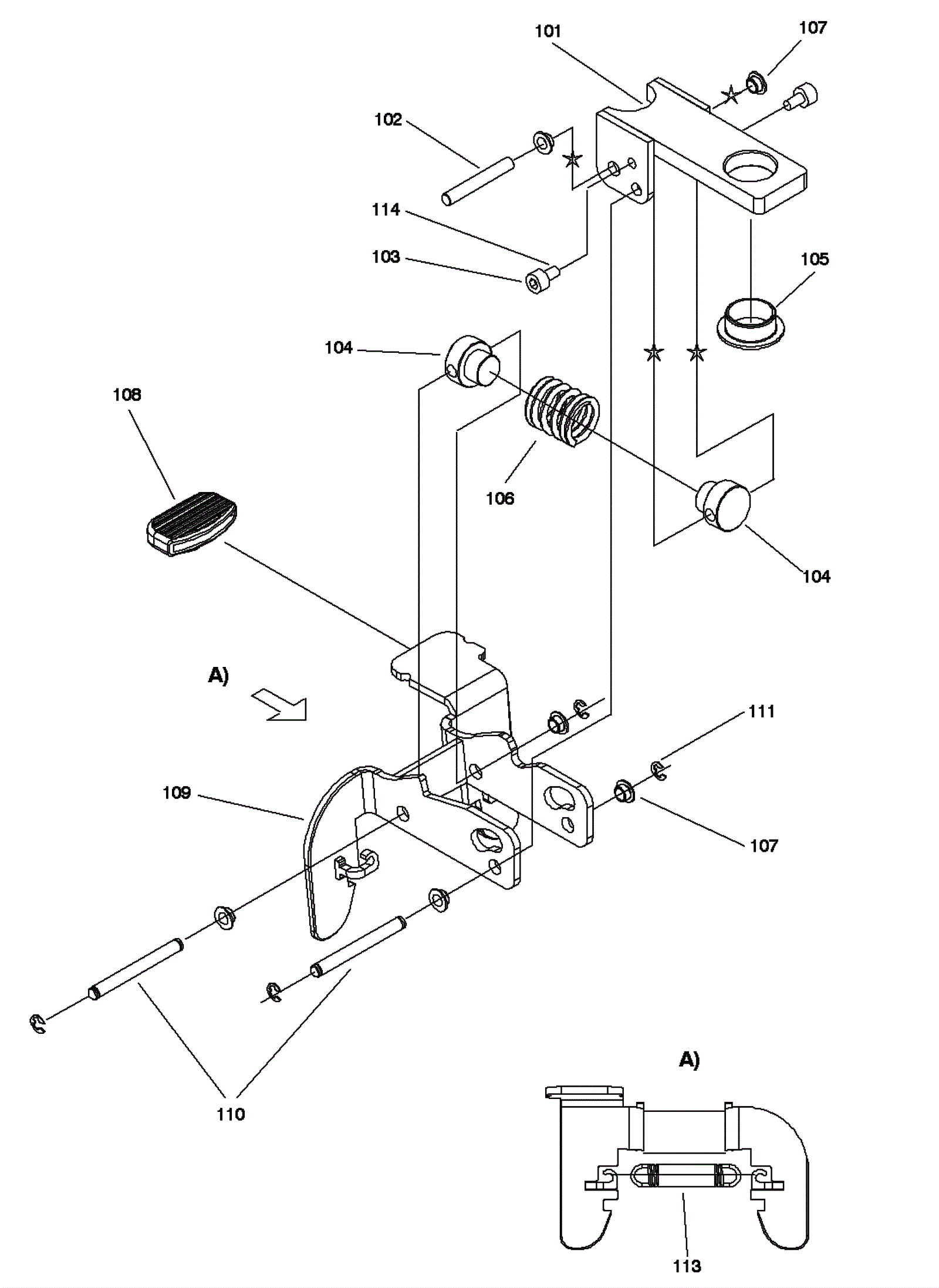

SWINGO 755B Squeegee Lift Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-9504 Swing arm $30.28 1 ships same day
102 192-9505 Axle $4.28 1 ships same day
103 192-0364 Screw M8 x 12mm socket head $2.52 2 usually ships 30-75 days
104 192-9506 Bolt $10.75 2 ships same day
105 192-9507 Slide bearing $6.30 1 ships same day
106 192-9508 Pressure spring $11.85 1 usually ships 30-75 days
107 192-6448 Slide bearing $6.42 6 ships same day
108 192-8983 Pedal pad $9.50 1 ships same day
109 192-9509 Pedal weldment $72.66 1 ships same day
110 192-9510 Axle $5.25 2 ships same day
111 192-0840 Snap ring $2.44 4 ships same day
113 192-9511 Tension spring $15.68 1 ships same day
114 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 ships same day
