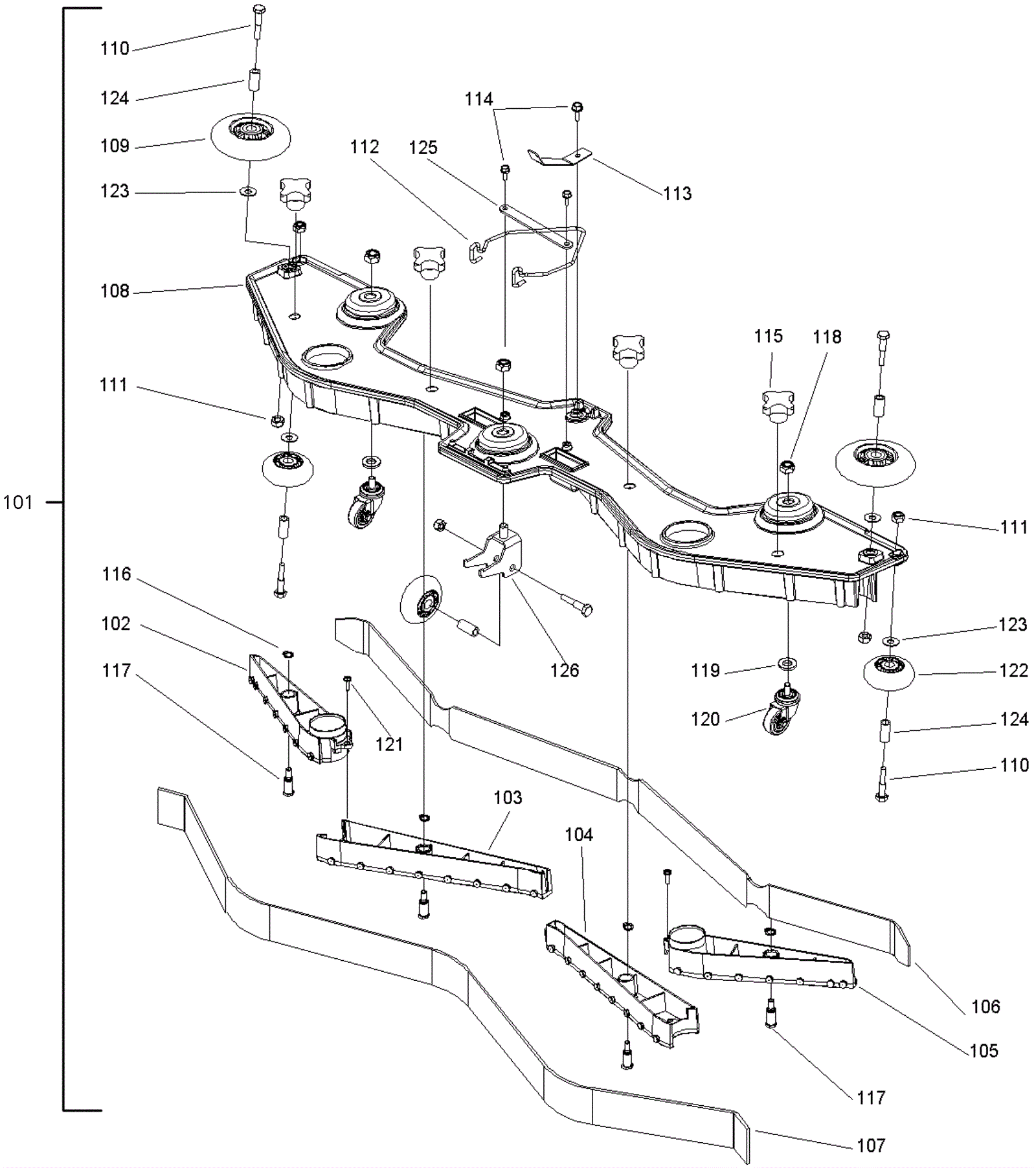

SWINGO 1850 Squeegee Assembly

#PartDescriptionPriceReqNotesAvailability
101 292-8552 Squeegee assembly $891.63 1 (includes 102-126) ships same day
102 192-8967 Right side blade retainer $9.89 1 ships same day
103 192-8966 Right side middle blade retainer $24.78 1 ships same day
104 192-8965 Left side middle blade retainer $18.68 1 ships same day
105 192-8964 Left side blade retainer $9.89 1 ships same day
106a 192-8968 Squeegee blade front $119.36 1 usually ships 30-75 days
106b 192-9804 Squeegee blade front solid $148.60 1 (option) ships same day
107a 192-8969 Squeegee blade rear $144.08 1 ships same day
107b 292-0926 Squeegee blade $63.86 1 (option) usually ships 30-75 days
108 292-0024 Squeegee weldment $129.50 1 usually ships 30-75 days
109 192-8744 Wheel $31.57 2 ships same day
110 192-9212 Screw M8 x 40/22mm hex $4.35 5 usually ships 30-75 days
111 192-0510 Nut M8 self locking $2.44 5 ships same day
112 292-0002 Wire spring $24.40 1 ships same day
113 292-0003 Flat spring $12.29 1 usually ships 30-75 days
114 192-9360 Screw M6 x 16mm self tapping $2.93 3 ships same day
115 292-0004 Star knob $4.22 4 ships same day
116 192-0075 Retaining ring $5.81 4 ships same day
117 292-0005 Screw M10 hex head $23.52 4 usually ships 30-75 days
118 192-6339 Nut M10 self locking $2.44 3 ships same day
119 192-0112 Washer $2.44 2 ships same day
120 192-9801 Castor wheel $33.17 2 ships same day
121 192-1571 Screw M50 x 16mm $2.44 2 ships same day
122 192-9802 Wheel $28.16 3 ships same day
123 192-7424 Washer 8.4/20 $2.44 4 usually ships 30-75 days
124 192-9803 Bushing $2.52 5 ships same day
125 292-0126 Holder bar $7.40 1 ships same day
126 292-8551 Bracket $32.85 1 usually ships 30-75 days
