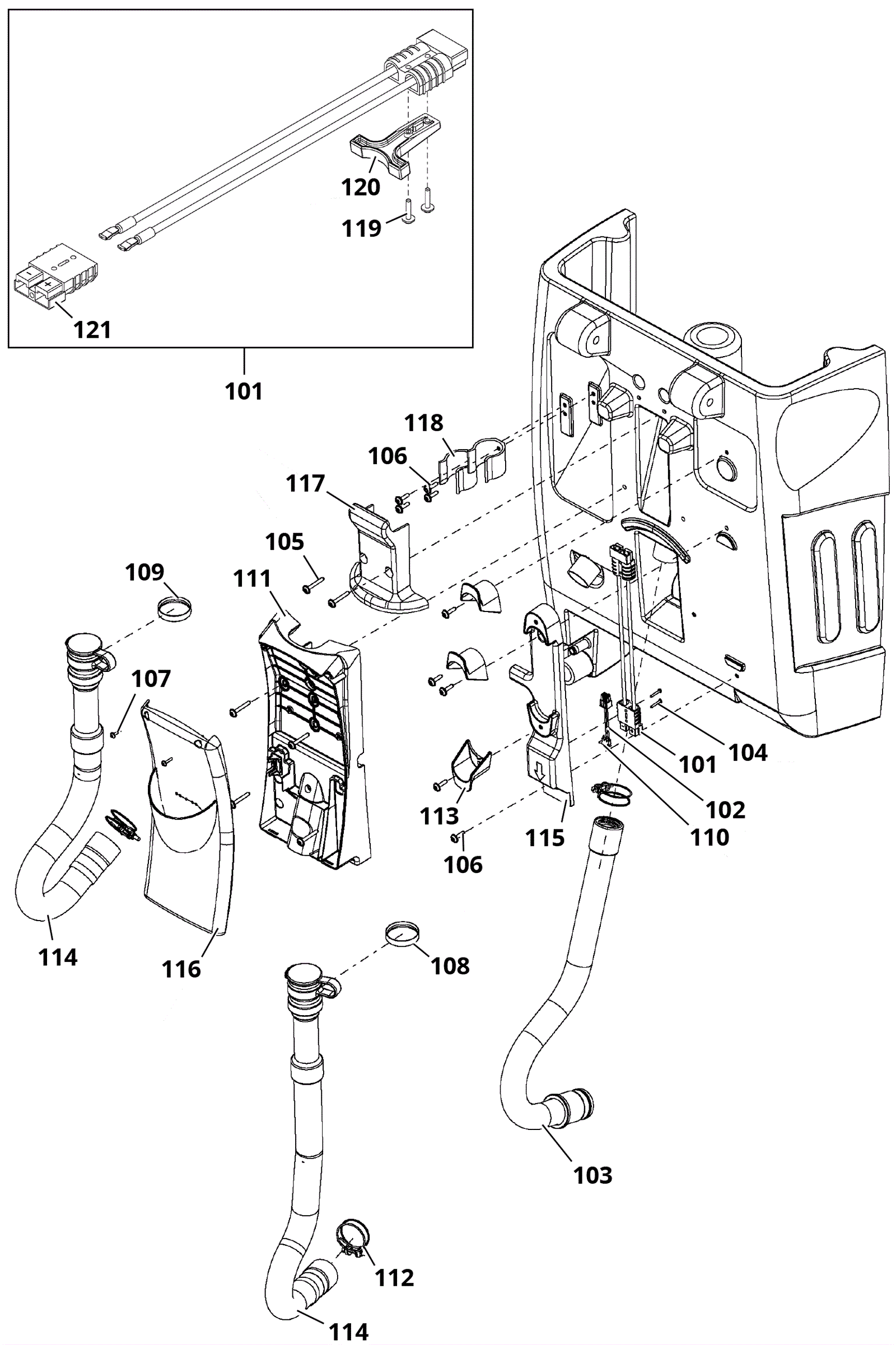

SWINGO 1850 Tube Assembly - After V4

#PartDescriptionPriceReqNotesAvailability
101 292-0417 Wire harness $59.05 1 (includes 119-121) (non-BMS) ships same day
102 192-9941 Wire harness with charger switch $63.01 1 (non-BMS) ships same day
103 192-8972 Suction hose $46.40 1 ships same day
104 192-0549 Screw KA 35 x 20 $2.44 2 (non-BMS) ships same day
105 192-1557 Screw 60 x 35 torx head $2.44 6 ships same day
106 192-1561 Screw 60 x 20 torx head $2.44 9 ships same day
107 192-1595 Screw M40 x 16mm torx head $2.44 2 ships same day
108 292-0271 Rubber ring (red) $2.44 1 ships same day
109 292-5284 Rubber ring (blue) $2.44 1 ships same day
110 192-8784 Switch lever $21.98 1 (non-BMS) ships same day
111 292-5408 Rear cover $34.39 1 usually ships 30-75 days
112 192-0130 Hose clamp $2.44 3 ships same day
113 192-2550 Holder $2.88 3 ships same day
114 192-8971 Drain hose with attached gray cap $99.22 2 ships same day
115 292-5411 Cover $11.23 1 ships same day
116 292-5410 Cover $26.00 1 usually ships 30-75 days
117 292-5409 Cover $28.33 1 usually ships 30-75 days
118 192-0099 Hose holder $1.79 2 ships same day
119 192-1595 Screw M40 x 16mm torx head $2.44 2 (option) ships same day
120 192-7083 T-handle $55.51 1 (option) ships same day
121 192-0389 50amp charger plug SB50 with hole (gray) $16.68 2 ships same day
