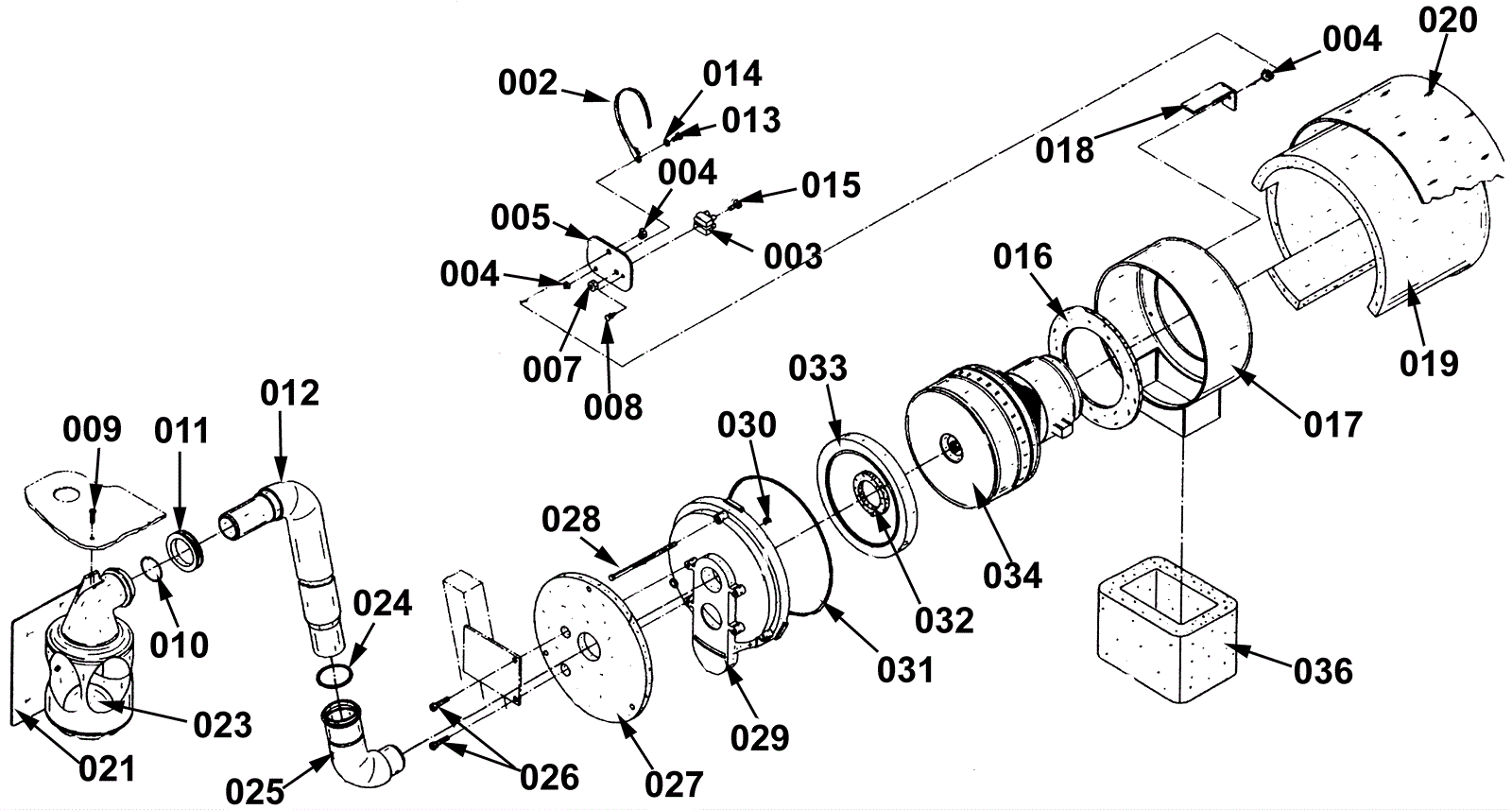

COMBIMAT 1000E Vacuum Unit Assembly - Series 02

#PartDescriptionPriceReqNotesAvailability
002 192-2579 Cable tie $2.44 1 usually ships 1-5 days
003 192-2895 2 way connection block $2.44 1 usually ships 30-75 days
004 192-0039 Nut M4 hex $4.10 5 usually ships 30-75 days
005 192-5551 Plate (OBSOLETE) $4.03 1 usually ships 1-5 days
007 192-0015 Nut M3 self locking $5.01 1 usually ships 1-5 days
008 192-6051 Retaining rivet (OBSOLETE) $2.20 2 usually ships 1-5 days
009 192-6285 Screw KA 40 x 16 $2.44 1 usually ships 1-5 days
010 192-8696 O-ring 32.3 x 6.2 $0.92 1 usually ships 1-5 days
011 N/A Not available Call for price 1 Sealing ring usually ships 3-26 days
012 N/A Not available Call for price 1 Pipe bend usually ships 3-26 days
013 192-0148 Screw M4 x 10mm raised cheese head $2.44 1 usually ships 30-75 days
014 192-7416 Washer 4. 3/8 $2.44 1 usually ships 30-75 days
015 192-0054 Screw M3 x 16mm raised cheese head $4.76 1 ships same day
016 192-0256 Gasket $2.60 1 ships same day
017 192-4485 Housing (OBSOLETE) $15.59 1 usually ships 30-75 days
018 192-2175 Bracket (OBSOLETE) $7.36 3 usually ships 1-5 days
019 192-9366 Noise absorbing mantle Call for price 1 usually ships 1-5 days
020 192-9367 Jacket Call for price 1 usually ships 1-5 days
021 192-9368 Valve body with plate Call for price 1 usually ships 1-5 days
023 192-1847 Ball (OBSOLETE) $12.47 1 usually ships 1-5 days
024 192-8697 O-ring 34 x 3 $0.92 1 usually ships 1-5 days
025 192-9369 Pipe bend Call for price 1 usually ships 1-5 days
026 192-0262 Screw M5 x 20mm socket head cap $3.54 2 usually ships 30-75 days
027 192-5246 Noise absorbing cover (OBSOLETE) $11.44 1 usually ships 1-5 days
028 192-0418 Screw 4mm cylindrical $11.01 3 usually ships 30-75 days
029 192-0411 Motor flange $27.18 1 usually ships 1-5 days
030 192-0383 Nut M5 hex $0.89 3 ships same day
031 192-0413 Gasket (sold by the inch) $0.99 23 in usually ships 30-75 days
032 192-3923 Gasket (OBSOLETE) $7.48 1 usually ships 1-5 days
033 192-0253 Gasket (OBSOLETE) $6.47 1 usually ships 30-75 days
034a 192-9372 Complete vac motor Call for price 1 usually ships 1-5 days
034b 192-2651 Carbon brush (sold individually) $19.12 1 usually ships 30-75 days
036 192-9370 Noise absorbing ring Call for price 1 usually ships 1-5 days
N/S 192-4581 Insulating tube 4 (OBSOLETE) $2.89 usually ships 1-5 days
N/S 192-6571 Splice 1/2-1 $2.44 usually ships 1-5 days
N/S 192-9371 Insulating tube Call for price usually ships 1-5 days
