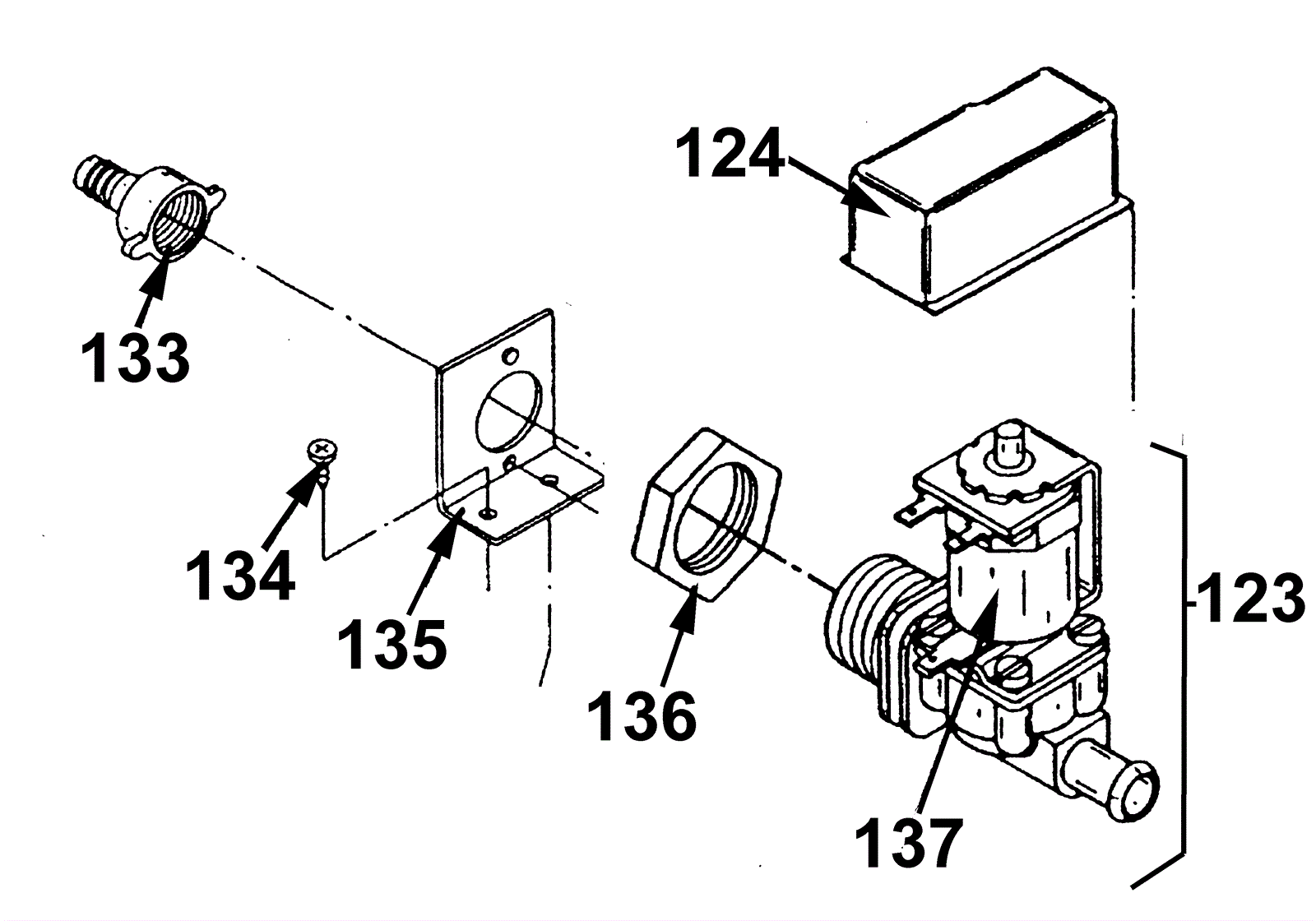

COMBIMAT 1000E Magnetic Valve and Filter Assembly - Series 02

#PartDescriptionPriceReqNotesAvailability
123 N/A Not available Call for price 1 Magnetic valve usually ships 3-26 days
124 192-9341 Protecting cap Call for price 1 usually ships 1-5 days
133 192-7951 Screwing socket 3/4 inch (OBSOLETE) Call for price 1 usually ships 1-5 days
134 192-5450 Screw B 4 13/64 x 9 1/2 pan head tap $2.52 2 usually ships 1-5 days
135 192-9345 Bracket Call for price 1 usually ships 1-5 days
136 192-9346 Nut hex 3/4 inch Call for price 1 usually ships 1-5 days
137a 192-9342 Coil (OBSOLETE) Call for price 1 usually ships 1-5 days
137b 192-9343 Pressure spring Call for price 1 usually ships 1-5 days
137c 192-9344 Diaphragm Call for price 1 usually ships 1-5 days
