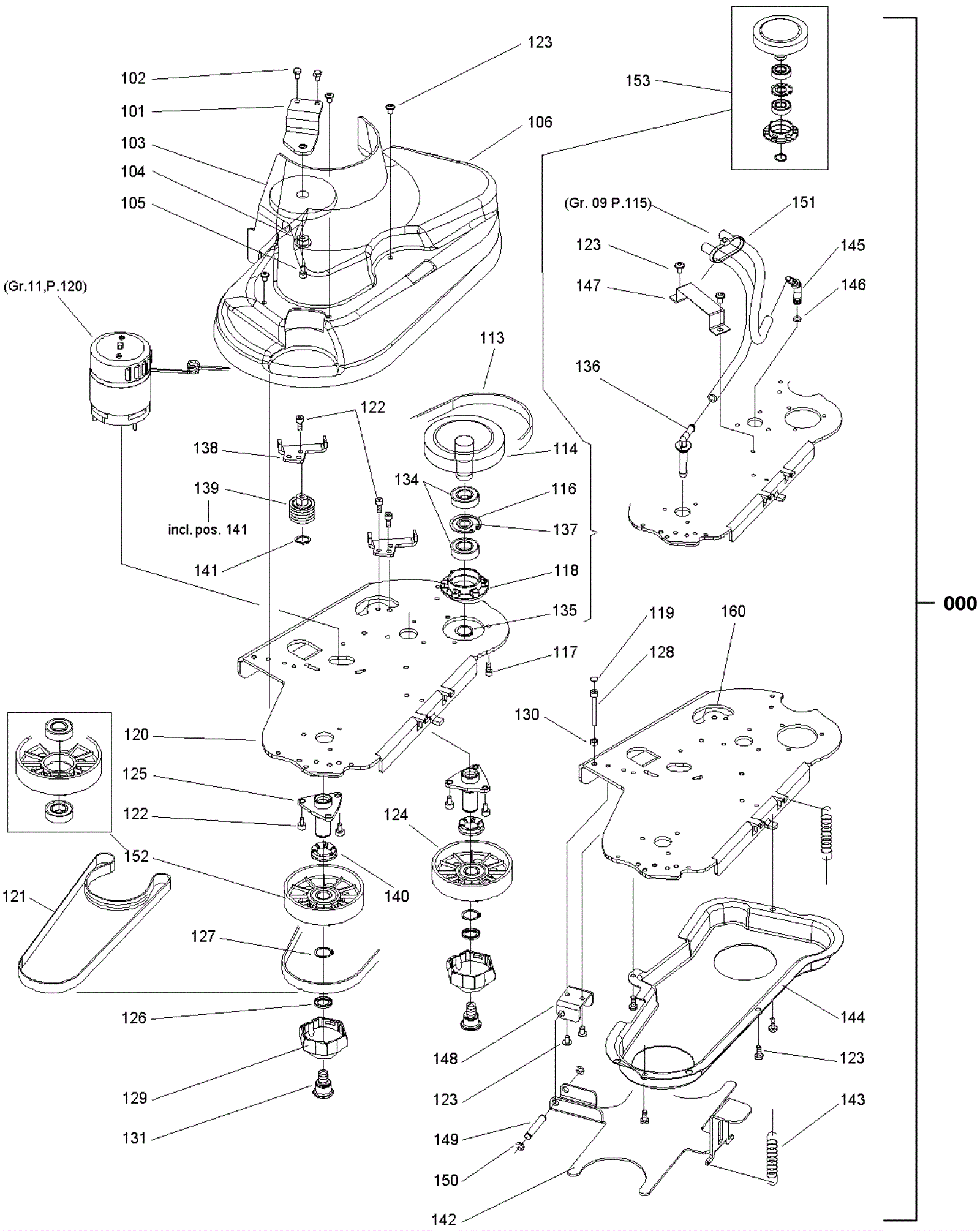

SWINGO 1650 Scrub Deck Assembly - Before V5

#PartDescriptionPriceReqNotesAvailability
000 292-8553 Brush deck assembly (OBSOLETE) $2,084.17 1 (includes usually ships 30-75 days
101 292-0134 Bracket $99.78 1 ships same day
102 192-0509 Screw M8 x 12mm hex head $2.52 2 usually ships 30-75 days
103 292-0135 Wheel $38.83 1 usually ships 30-75 days
104 292-0136 Flanged bushing $13.99 1 ships same day
105 192-0078 Screw M8 x 16mm socket head $2.44 1 ships same day
106 292-0345 Brush housing $278.71 1 ships same day
113 192-9258 Poly v belt $30.77 1 ships same day
114 192-4607 Intermediate pulley $45.18 1 ships same day
116 192-0483 Retaining ring $2.44 1 ships same day
117 192-1285 Screw M6 x 25mm hex head $2.44 3 ships same day
118 192-0484 Flanged bearing $38.65 1 usually ships 30-75 days
119 192-9259 Cap $2.44 1 usually ships 30-75 days
120 192-9260 Bracket $252.63 1 ships same day
121 192-9261 Poly v belt $62.34 1 ships same day
122 192-0364 Screw M8 x 12mm socket head $2.52 9 ships same day
123 192-0348 Screw M8 x 12mm truss head $2.44 12 ships same day
124 192-5814 Pulley with bearings (bearings not available separate) $31.50 1 ships same day
125 192-0590 Pulley axle $12.69 2 ships same day
126 192-6320 Sealing ring $2.44 2 ships same day
127 192-0503 Retaining ring $2.44 2 ships same day
128 192-9262 Screw M8 x 65mm socket head $2.44 1 usually ships 30-75 days
129 192-3032 Drive hub $15.99 2 ships same day
130 192-0347 Nut M8 hex $0.89 1 ships same day
131 192-2728 Flanged bushing $5.37 2 ships same day
134 192-0481 Ball bearing $10.21 2 ships same day
135 192-0485 Retaining ring $5.08 1 usually ships 30-75 days
136 192-1677 Angled nipple $2.44 1 ships same day
137 192-0482 Spacer $2.44 1 ships same day
138 192-2826 Clamp $18.39 1 ships same day
139 192-4543 Axle idler kit $48.30 1 ships same day
140 192-6321 Sealing ring $3.74 2 ships same day
141 192-0075 Retaining ring $5.81 1 ships same day
142 192-9264 Decoupling bow $72.12 1 usually ships 30-75 days
143 192-9265 Tension spring $2.44 2 ships same day
144 192-9266 Base plate cover $18.39 1 ships same day
145 192-9395 Hose nipple $2.44 1 ships same day
146 192-5358 O-ring $5.81 1 usually ships 30-75 days
147 192-9396 Bracket $8.43 1 ships same day
148 192-9269 Bracket $11.47 1 usually ships 30-75 days
149 192-9270 Axle $13.31 1 ships same day
150 192-0086 Snap ring $2.44 2 ships same day
151 192-0102 7 3/4 inch cable tie $2.44 2 usually ships 30-75 days
152 292-0137 Pulley $43.78 1 ships same day
153 292-0068 Pulley kit (includes bearings and clips) $183.15 2 (includes 114, 116, 118, 134-135, 137) usually ships 30-75 days
160 192-1872 Grease $11.99 1 ships same day
