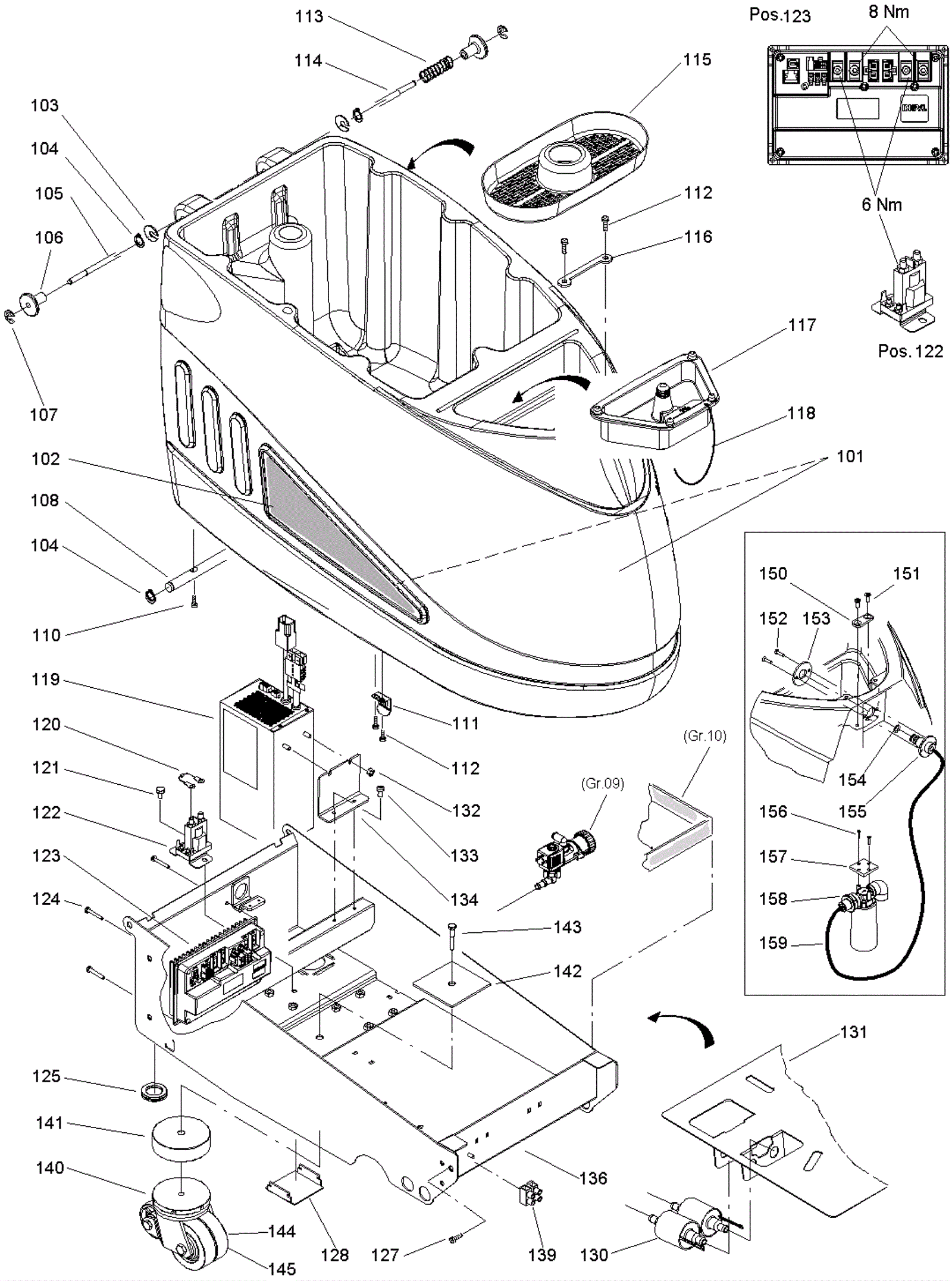

SWINGO 1850 Chassis and Tank Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-9361 Tank assembly $1,199.95 1 (includes 102a) usually ships 30-75 days
102a 192-9278 Decorative decal $57.27 1 (1650) usually ships 30-75 days
102b 292-0006 Decorative decal $59.71 1 (1850) usually ships 1-5 days
103 192-1504 Spacer $2.44 4 ships same day
104 192-1505 Retaining ring $3.86 4 ships same day
105 192-9279 Axle $50.55 1 ships same day
106 192-9280 Flanged bearing $9.59 2 ships same day
107 192-0902 Snap ring $2.44 2 ships same day
108 192-9281 Axle $41.22 1 ships same day
110 192-1509 Screw 60 x 25 torx head $4.35 2 ships same day
111 192-9282 Bracket $2.44 1 usually ships 30-75 days
112 192-1561 Screw 60 x 20 torx head $2.44 4 ships same day
113 192-9283 Pressure spring $2.93 1 ships same day
114 192-9284 Suspension axle $25.52 1 ships same day
115 192-1511 Basket filter $11.11 1 ships same day
116 192-1513 Locking plate $3.49 1 usually ships 30-75 days
117 192-9285 Dosing cup $33.58 1 ships same day
118a 292-0096 Cord $2.44 1 (after V3) usually ships 30-75 days
118b 192-0714 Cord (sold by the inch) $2.44 12 in (before V4) ships same day
119a 292-5287 24V 25amp onboard battery charger $949.62 1 (before V5) ships same day
119b 292-5592 24V 25amp charger $858.26 1 (before V5) ships same day
120 192-9286 Diode $30.77 1 (before V5) ships same day
121 192-5931 Screw M6 x 12mm truss head phillips $2.44 2 (before V5) ships same day
122 192-9202 Relay $99.76 1 (before V5) ships same day
123 192-9287 Electronic control board $1,832.64 1 (before V5) ships same day
124 192-9288 Screw M5 x 35mm self threading $2.44 4 (before V5) ships same day
125 192-9289 Grommet $10.99 1 (before V5) ships same day
127 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.99 1 (before V5) ships same day
128 192-9291 Splash guard $5.86 1 (before V5) ships same day
130 192-5845 24V pump $157.47 2 (before V5) ships same day
131 192-9292 Plastic weldment $19.78 1 (before V5) usually ships 30-75 days
132 192-0563 Nut M6 self-locking $2.44 2 (before V5) ships same day
133 192-0101 Screw M5 x 12mm self tapping form $2.44 2 (before V5) ships same day
134 192-9293 Angle bracket $10.57 1 (before V5) usually ships 30-75 days
136 192-9294 Chassis $505.10 1 (before V5) usually ships 1-5 days
139 292-5568 Connection block $8.99 1 (before V5) usually ships 30-75 days
140 192-1521 Caster wheel assembly (brown) $192.12 1 (before V5) ships same day
141 292-0008 Spacer $31.14 1 (before V5) usually ships 30-75 days
142 292-5363 Plate $10.51 1 (before V5) usually ships 30-75 days
143 192-4218 Screw M12 x 30mm hex head $2.44 1 (before V5) ships same day
144 192-6380 Caster replacement wheel (brown) (pkg of 2) $133.83 1 (option) (before V5) ships same day
145 292-0506 Wheel $36.75 2 (option) (before V5) usually ships 30-75 days
150 292-0127 Plate $10.09 1 usually ships 1-5 days
151 192-2979 Screw M6 x 16mm countersunk head cap $2.44 2 (before V5) ships same day
152 192-9352 Screw M5 x 20mm counter head $4.47 2 usually ships 30-75 days
153 292-0128 Disc $10.87 1 usually ships 30-75 days
154 292-0129 O-ring $2.44 1 usually ships 1-5 days
155 292-0130 Connector $98.78 1 usually ships 1-5 days
156 192-6282 Screw KA 30 x 10 $3.54 2 ships same day
157 292-0131 Plate $18.02 1 usually ships 1-5 days
158 292-0132 Water stop $212.89 1 usually ships 30-75 days
159 292-0133 Hose $121.80 1 usually ships 1-5 days
N/S 292-5099 Recommended parts decal $2.44 1 (included with 101) (after V4) usually ships 30-75 days
N/S 192-2981 Screw M6 x 20 head cap counters $3.91 1 (after V4) usually ships 1-5 days
