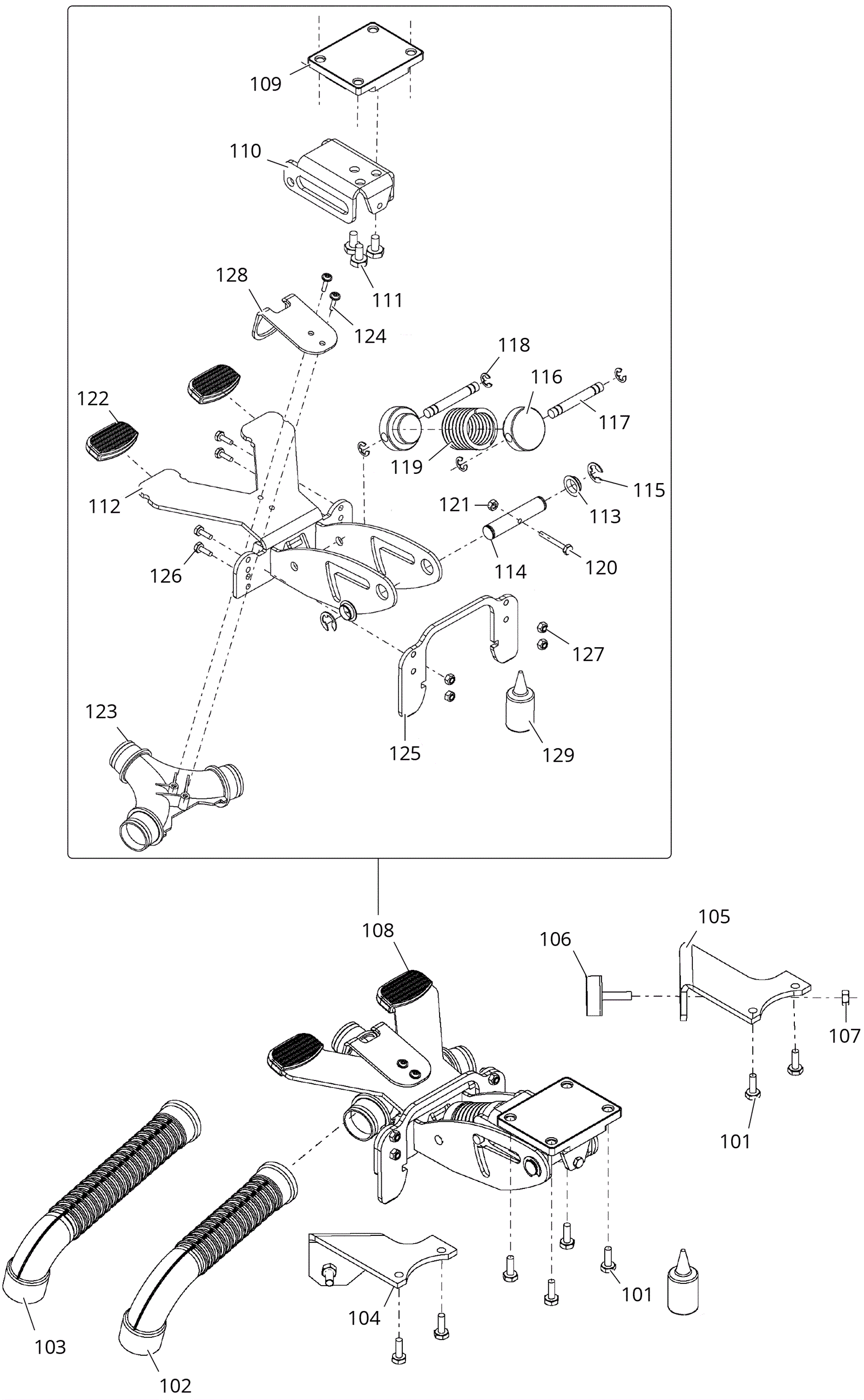

SWINGO 1850 Squeegee Lowering Mechanism Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-0153 Screw M8 x 20mm hex head $0.89 8 ships same day
102 192-8991 Squeegee suction hose $23.88 2 (1650) ships same day
103 192-9331 Squeegee suction hose $27.30 2 (1850) ships same day
104 292-0347 Angle bracket $21.80 1 usually ships 30-75 days
105 292-0348 Angle bracket $23.02 1 usually ships 30-75 days
106 192-1125 Stop buffer $4.84 2 ships same day
107 192-4211 Nut M8 hex $2.44 2 ships same day
108 292-8677 Squeegee Mechanism Complete $511.26 1 (includes 109-129) (after V4) ships same day
109 192-8980 Slide bearing $139.68 1 ships same day
110 192-8981 Bracket $24.78 1 ships same day
111 192-1455 Screw M10 x 16mm hex head $4.22 3 ships same day
112 292-0123 Squeegee bracket $100.93 1 ships same day
113 192-9351 Grommet $2.44 2 ships same day
114 192-8985 Axle $12.69 1 ships same day
115 192-2776 Snap ring $2.44 2 ships same day
116 192-8897 Spring plate $29.43 2 ships same day
117 192-8990 Axle $7.65 2 ships same day
118 192-0086 Snap ring $2.44 4 ships same day
119 192-8989 Pressure spring $42.91 1 ships same day
120 192-9355 Screw M6 x 40mm hex head $5.50 1 ships same day
121 192-0151 Nut M6 hex $2.44 1 ships same day
122 192-8983 Pedal pad $9.50 2 ships same day
123 192-8984 Y-pipe $8.25 1 ships same day
124 192-9147 Screw 50 x 20 $3.78 2 ships same day
125 292-0124 Adapter $21.12 1 ships same day
126 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 4 ships same day
127 192-0563 Nut M6 self-locking $2.44 4 ships same day
128 292-5101 Steel protector $31.26 1 ships same day
129 192-1872 Grease $11.99 1 ships same day
N/S 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.99 4 (before V5) ships same day
