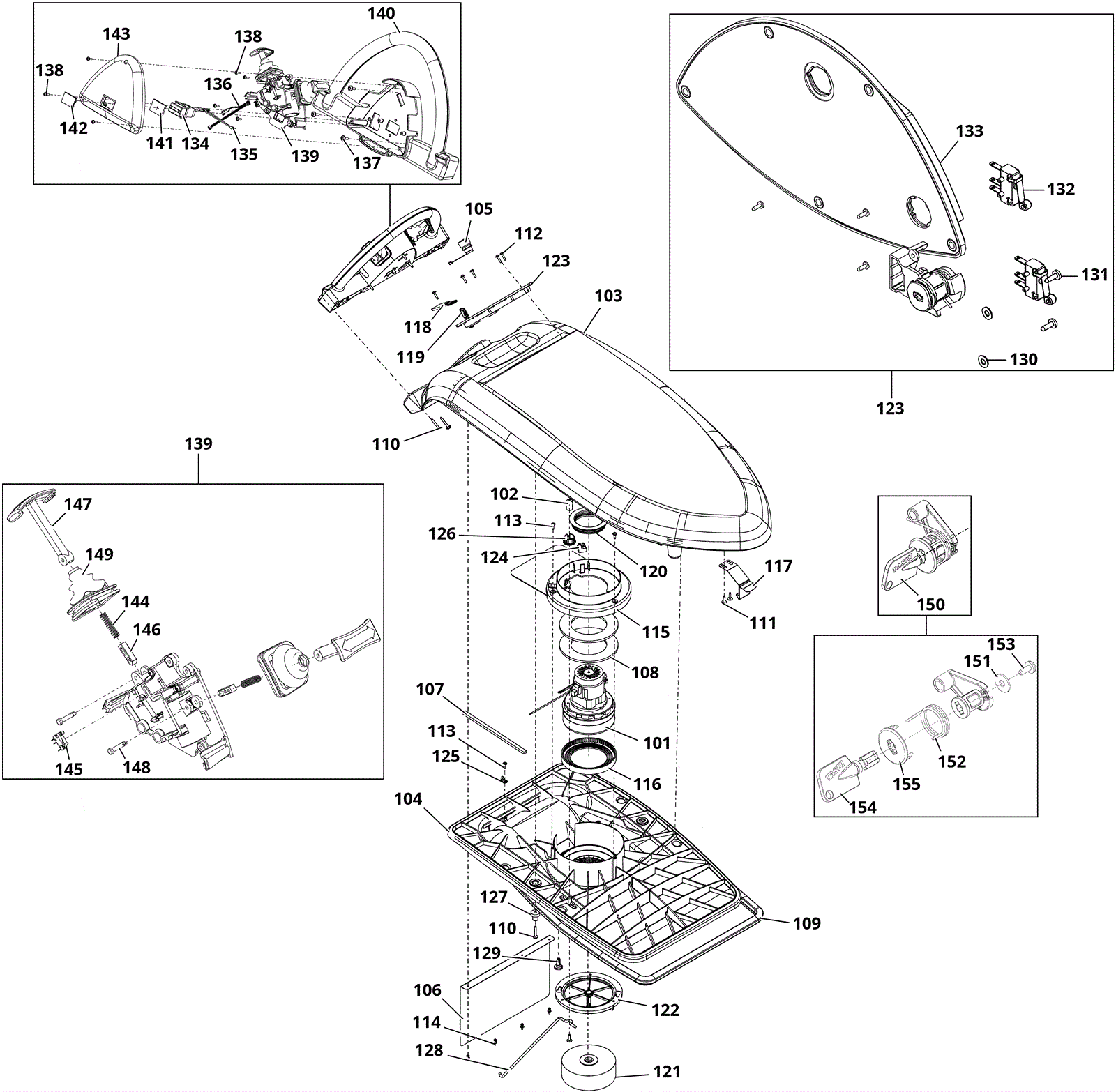

SWINGO 1650 Upper Assembly

#PartDescriptionPriceReqNotesAvailability
101a 292-8095 24V 16amp vacuum motor $95.00 1 (after V5) ships same day
101b 192-0770 24V 2 stage vacuum motor $257.63 1 (before V6) ships same day
102 192-0732 Ferrite bushing $3.00 1 usually ships 30-75 days
103 192-8945 Tank hood $351.07 1 ships same day
104 192-8943 Base plate $191.70 1 (includes 129) ships same day
105 192-8729 Actuator stop button $160.44 1 ships same day
106 192-8942 Protection shield $7.45 1 ships same day
107 192-6310 Seal strip (sold by the inch) $0.99 73 in (after V4) ships same day
108 192-1573 Gasket $2.44 2 ships same day
109 192-6334 Sealing profile (sold by the inch) $0.99 91 in ships same day
110 192-1557 Screw 60 x 35 torx head $2.44 6 ships same day
111 192-1561 Screw 60 x 20 torx head $2.44 6 ships same day
112 192-9147 Screw 50 x 20 $3.78 5 ships same day
113 192-1571 Screw M50 x 16mm $2.44 4 ships same day
114 192-1559 Retaining rivet $4.52 4 ships same day
115 192-1570 Protection plate $22.34 1 ships same day
116 192-1562 Guide ring $7.39 1 ships same day
117 192-8946 Locking lever $22.22 1 usually ships 30-75 days
118 192-4662 Key ring $4.71 1 (after V4) usually ships 30-75 days
119 292-5254 Steel key $3.78 1 (after V4) ships same day
120 192-1569 Sealing ring $6.79 1 ships same day
121 192-1490 Float $31.38 1 ships same day
122 192-3617 Filter $6.91 1 ships same day
123a 292-9850 Control board $509.94 1 (includes 130-133) (after V5) ships same day
123b 192-8999 Dashboard $398.31 1 (includes 144) (before V6) ships same day
124 192-0260 2-way connection block $2.81 1 ships same day
125 192-2501 P clamp $4.59 1 ships same day
126 192-8948 Bushing $2.44 1 usually ships 30-75 days
127 192-1575 Buffer $2.44 2 ships same day
128 192-8947 Support bar $7.57 1 ships same day
129 192-8753 Flange bolt $2.44 2 ships same day
130 192-0677 Washer M3 $2.44 2 (after V5) usually ships 30-75 days
131 192-6283 Screw for plastic KA 30 x 8 $2.44 6 (after V5) usually ships 1-5 days
132 192-8721 Microswitch $27.98 2 ships same day
133 292-8535 Key switch assembly $62.37 1 (after V5) ships same day
134 192-0033 24V hour meter $81.88 1 (option) usually ships 30-75 days
135 192-9486 Wiring harness $7.28 1 (option) usually ships 30-75 days
136a 292-1030 Wire harness $19.36 1 (after V5) usually ships 30-75 days
136b 192-8892 6-way ribbon cable $10.21 1 (before V6) ships same day
137 192-1561 Screw 60 x 20 torx head $2.44 3 ships same day
138 192-1595 Screw M40 x 16mm torx head $2.44 7 ships same day
139 192-5014 Mechanic hall sensor assembly $254.53 1 (includes 144-149) ships same day
140 192-1587 Handle $92.99 1 ships same day
141 192-8944 Cover $2.52 1 (option) ships same day
142 192-3548 False cover $4.10 1 ships same day
143 192-8941 Handle cover $21.37 1 ships same day
144 192-1585 Pressure spring $5.37 2 ships same day
145 192-8721 Microswitch $27.98 1 ships same day
146 192-1584 Grid lever $2.44 2 ships same day
147 192-6954 Switch lever $6.89 2 ships same day
148 192-1582 Bolt $2.44 2 ships same day
149 192-1977 Bellows $9.11 2 ships same day
150 292-5708 Key switch $48.84 1 (includes 151-155) (before V6) ships same day
151 192-0149 Washer $2.44 1 (V5) ships same day
152 192-7068 Tension spring $2.44 1 (V5) ships same day
153 192-8584 Screw 40 x 8 $2.44 1 usually ships 30-75 days
154 292-5254 Steel key $3.78 1 (after V4) ships same day
155 292-5255 Switch cover $2.44 1 (V5) ships same day
N/S 192-0771 Carbon brush plastic (black) (clip in) $8.75 1 (before V6) (ametek) usually ships 30-75 days
N/S 192-6309 Sealing strip (sold by the inch) $7.11 73 in (before V5) usually ships 30-75 days
N/S 192-2658 Carbon brush plastic (red) (screw in) $76.19 2 (EMB) (before V5) usually ships 30-75 days
N/S 192-0973 3 1/4 inch cable tie $2.44 1 (before V5) usually ships 30-75 days
