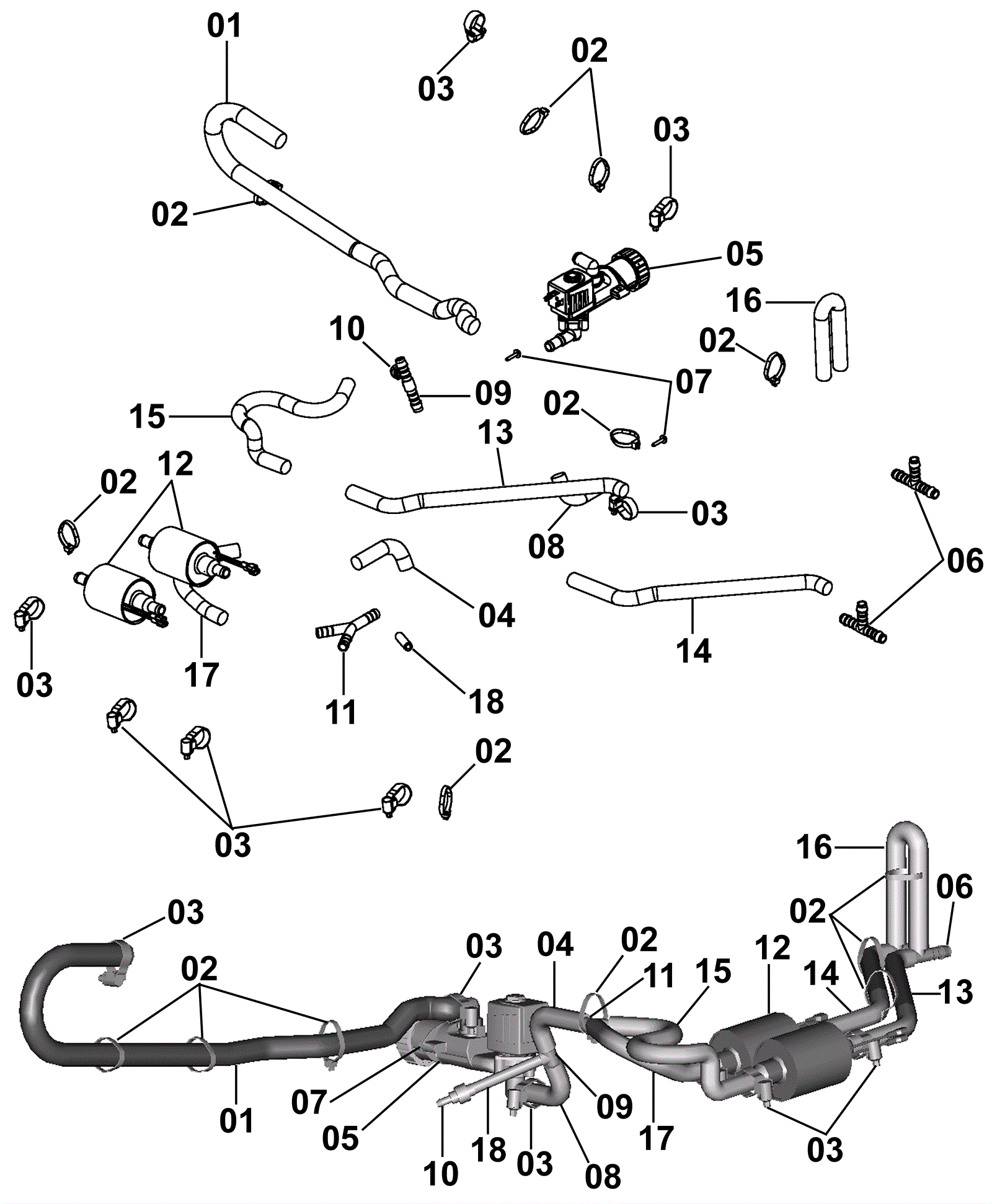

Solution Assembly - Series 3

#PartDescription ReqNotesAvailability
01 192-0400 Wire reinforced hose (sold by the inch) 26 in
02 192-0102 7 3/4 inch cable tie 11
03 192-0334 Hose clamp 7
04 192-0404 Wire reinforced hose (sold by the inch) 3 in
05a 192-9276 Solenoid and filter assembly 1 (includes 05b)
05b 292-0082 Filter kit 1
06 192-7109 T-nipple 2
07 192-1595 Screw M40 x 16mm torx head 2
08 192-4461 Tygon hose (sold by the inch) 3 in
09 192-0894 T-nipple 1
10 192-1601 Check valve 1
11 192-7548 Y-pipe 1
12 192-5845 24V pump 2
13 192-0404 Wire reinforced hose (sold by the inch) 12 in
14 192-0404 Wire reinforced hose (sold by the inch) 12 in
15 192-0404 Wire reinforced hose (sold by the inch) 8 in
16 192-0404 Wire reinforced hose (sold by the inch) 16 in
17 192-0404 Wire reinforced hose (sold by the inch) 7 in
18 192-4344 Hose (sold by the inch) 55 in
