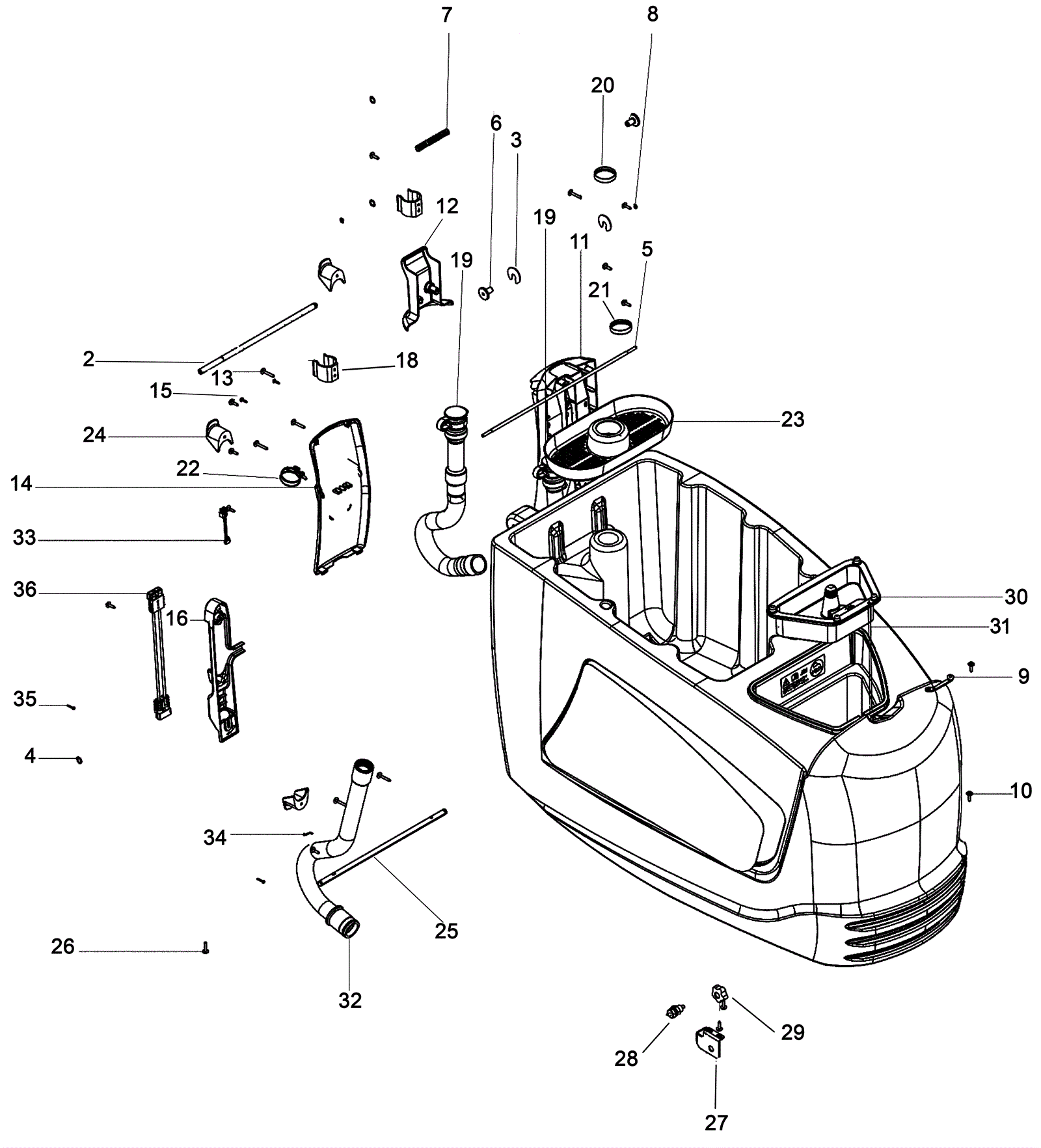

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
192-9017
|
Tank set |
1 |
|
|
2 |
192-9279
|
Axle |
1 |
|
|
3 |
192-1504
|
Spacer |
4 |
|
|
4 |
192-1505
|
Retaining ring |
4 |
|
|
5 |
192-9284
|
Suspension axle |
5 |
|
|
6 |
192-9280
|
Flanged bearing |
2 |
|
|
7 |
192-9283
|
Pressure spring |
1 |
|
|
8 |
192-0902
|
Snap ring |
2 |
|
|
9 |
292-8563
|
Plate |
1 |
|
|
10 |
192-1561
|
Screw 60 x 20 torx head |
13 |
|
|
11 |
292-5408
|
Rear cover |
1 |
|
|
12 |
292-5409
|
Cover |
1 |
|
|
13 |
192-1557
|
Screw 60 x 35 torx head |
6 |
|
|
14 |
292-5410
|
Cover |
1 |
|
|
15 |
192-1595
|
Screw M40 x 16mm torx head |
2 |
|
|
16 |
292-5411
|
Cover |
1 |
|
|
18 |
192-0099
|
Hose holder |
2 |
|
|
19 |
192-8971
|
Drain hose with attached gray cap |
2 |
|
|
20 |
292-0271
|
Rubber ring (red) |
1 |
|
|
21 |
292-5284
|
Rubber ring (blue) |
1 |
|
|
22 |
192-0130
|
Hose clamp |
3 |
|
|
23 |
192-1511
|
Basket filter |
1 |
|
|
24 |
192-2550
|
Holder |
3 |
|
|
25 |
192-9281
|
Axle |
1 |
|
|
26 |
192-1509
|
Screw 60 x 25 torx head |
2 |
|
|
27 |
292-8564
|
Angled bracket |
1 |
|
|
28 |
292-8565
|
Locking pin |
1 |
|
|
29 |
292-8566
|
Star knob |
1 |
|
|
30 |
192-9285
|
Dosing cup |
1 |
|
|
31 |
292-0096
|
Cord |
1 |
|
|
32 |
192-8972
|
Suction hose |
1 |
|
|
33 |
192-9941
|
Wire harness with charger switch |
1 |
|
|
34 |
192-8784
|
Switch lever |
1 |
|
|
35 |
192-0549
|
Screw KA 35 x 20 |
2 |
|
|
36 |
292-0417
|
Wire harness |
1 |
|
|
