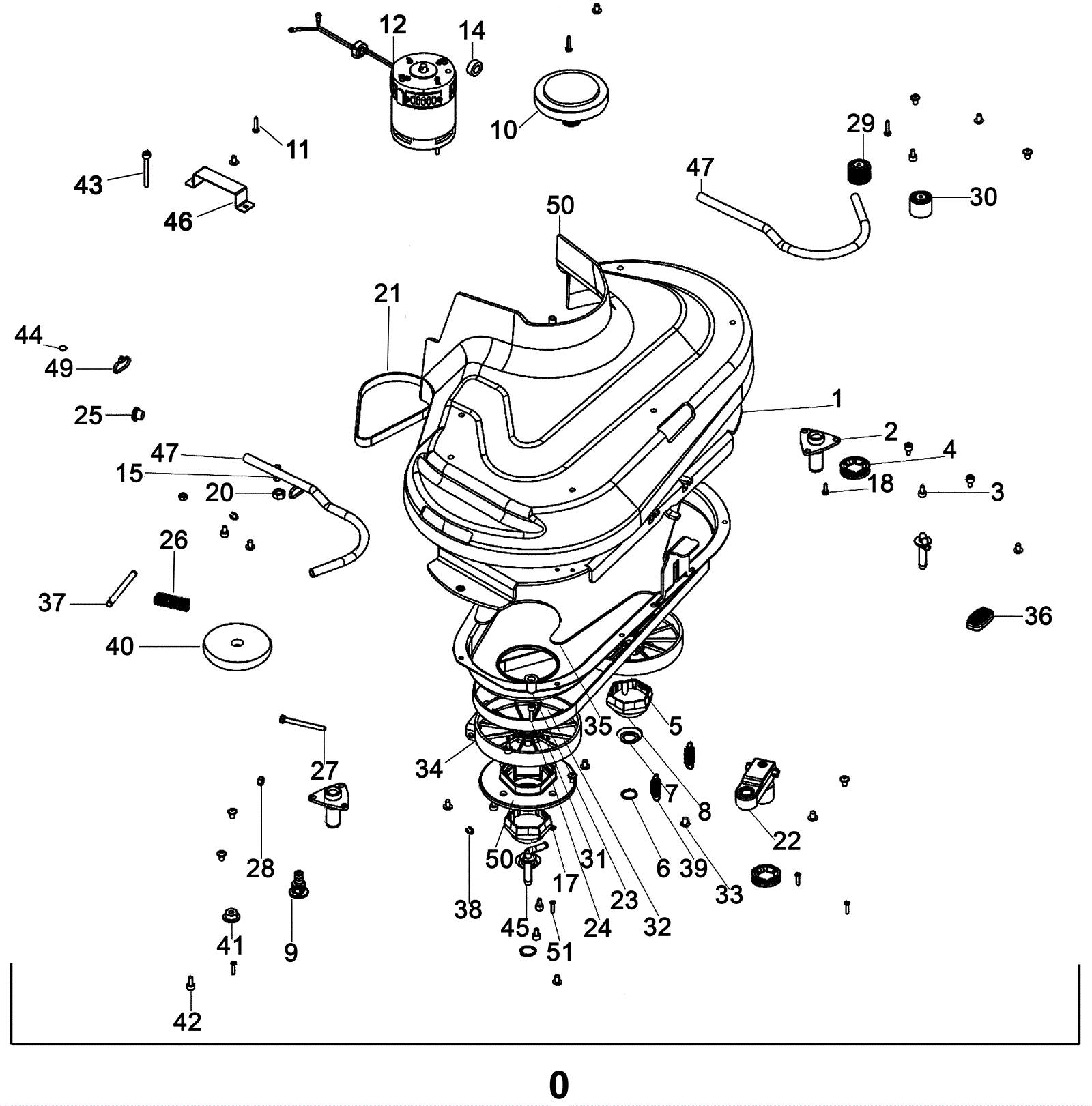

Brush Deck Assembly

#PartDescription ReqNotesAvailability
0 292-8558 Brush drive assembly 1 (includes 1-52)
1 292-0138 Brush base plate 1
2 192-0590 Pulley axle 2
3 192-0364 Screw M8 x 12mm socket head 12
4 192-6321 Sealing ring 2
5 292-0140 Pulley 2
6 192-0503 Retaining ring 2
7 192-6320 Sealing ring 2
8 192-3032 Drive hub 2
9 192-2728 Flanged bushing 2
10 292-0068 Pulley kit (includes bearings and clips) 2 (part updated in 2019 from a six hole flange to a three) (change does not affect part function or fit)
11 192-1285 Screw M6 x 25mm hex head 3
12 192-5078 24V brush motor with noise suppression 1
14 192-0712 Coil with toric core 1
15 192-8633 Stud 3
17 192-0200 Washer M6 3
18 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 3
20 192-0800 Nut M12 left hand thread hex 1
21 192-5626 Poly v-belt 1
22 292-0153 Lever 1
23 192-0602 Bushing 1
24 192-0278 Screw M8 x 25mm socket head 1
25 292-0157 Bolt 1
26 292-0156 Pressure spring 1
27 292-0020 Screw M8 x 80mm hex head 1
28 192-0347 Nut M8 hex 2
29 292-0015 Guide wheel 1
30 292-0014 Guide wheel 1
31 292-0139 Poly v-belt 1
32 292-0141 Cover 1
33 192-0348 Screw M8 x 12mm truss head 16
34 192-9819 Plate bracket 1
35 292-0142 Plate 1
36 192-8983 Pedal pad 1
37 192-9821 Bolt 1
38 192-0086 Snap ring 2
39 192-9265 Tension spring 2
40 292-0135 Wheel 1
41 292-0136 Flanged bushing 1
42 192-0078 Screw M8 x 16mm socket head 1
43 192-9262 Screw M8 x 65mm socket head 1
44 192-9259 Cap 1
45 192-1677 Angled nipple 2
46 192-9396 Bracket 1
47 192-0404 Wire reinforced hose (sold by the inch) 20 in (2 20 inch segments)
49 192-0102 7 3/4 inch cable tie 4
50 292-5105 Brush housing 1
51 192-3469 Clutch plate 2
52 192-0445 Screw M5 x 25mm pan head tap 8
N/S 192-7525 Wire sleeve 2 (included with 0)
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) 1 (included with 0)
N/S 192-5815 Pulley 1 (included with 0)
