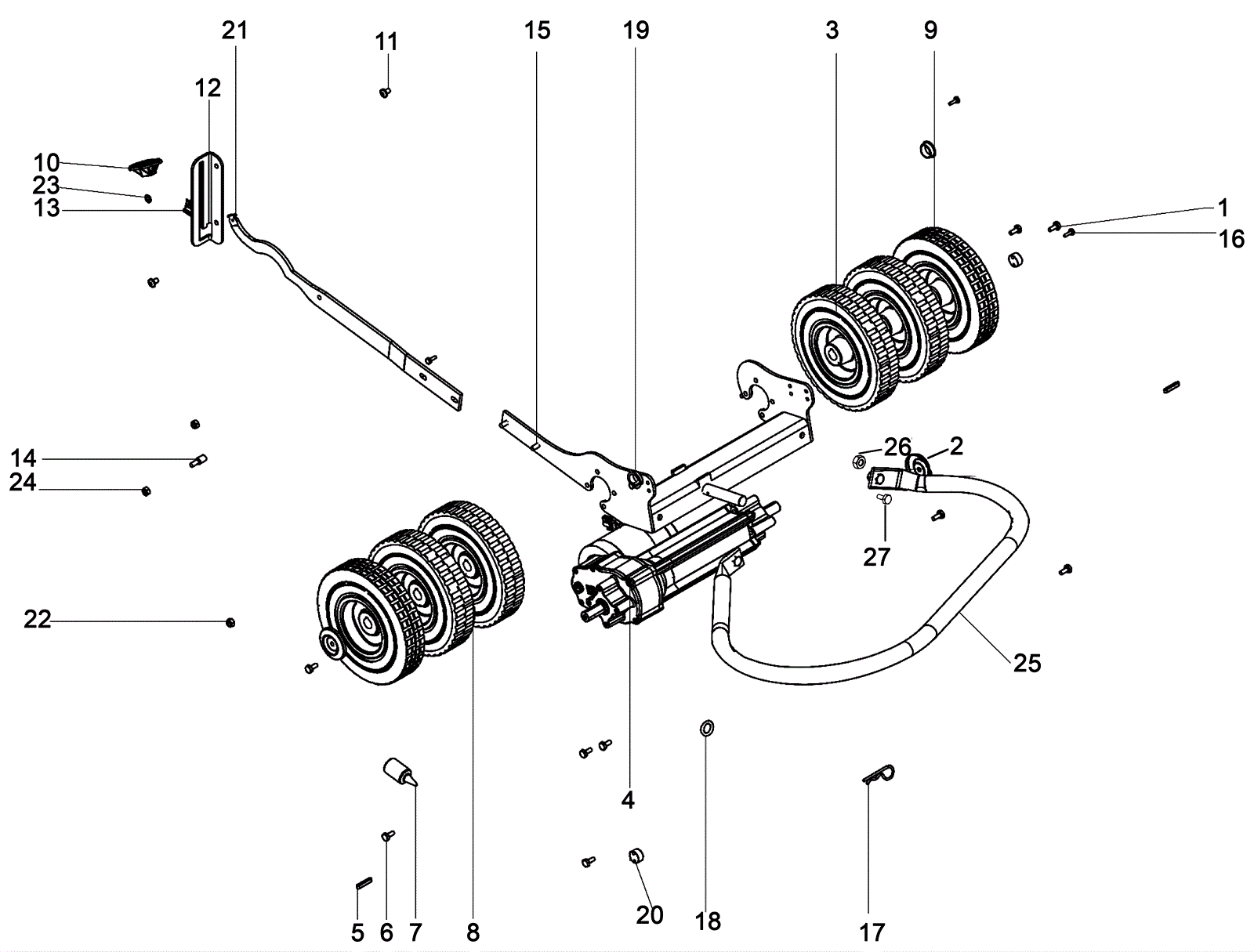

Transaxle Assembly

#PartDescription ReqNotesAvailability
1 999-0783 Screw M8-1.25 x 16mm hex head 2
2 192-3077 Disk 2
3 192-4998 Wheel 2
4 192-8952 Transaxle 1
5 192-8953 Square keyway 2
6 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc 8
7 192-1872 Grease 1
8 192-4998 Wheel 2 (option)
9 192-8951 Wheel (gray) 2 (option)
10 192-8903 Pedal pad 1
11 192-0348 Screw M8 x 12mm truss head 2
12 192-8954 Bracket 1
13 192-0541 Switch 1
14 192-8955 Bushing 1
15 292-0086 Cradle 1
16 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 4
17 192-8957 Clevis pin 1
18 192-8958 O-ring 1
19 192-8959 Slide bearing 2
20 192-8960 Bushing 2
21 192-8956 Brush lever 1
22 999-0471 Nut M8-1.25 nylon insert lock zinc plated 2
23 192-0650 Serrated lock washer 1
24 192-4211 Nut M8 hex 1
25 192-9399 Bumper 1 (includes 26-27) (1655 option)
26 192-1135 Nut M10 hex 2
27 192-0468 Screw M10 x 20 hex 2
