| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
292-8552
|

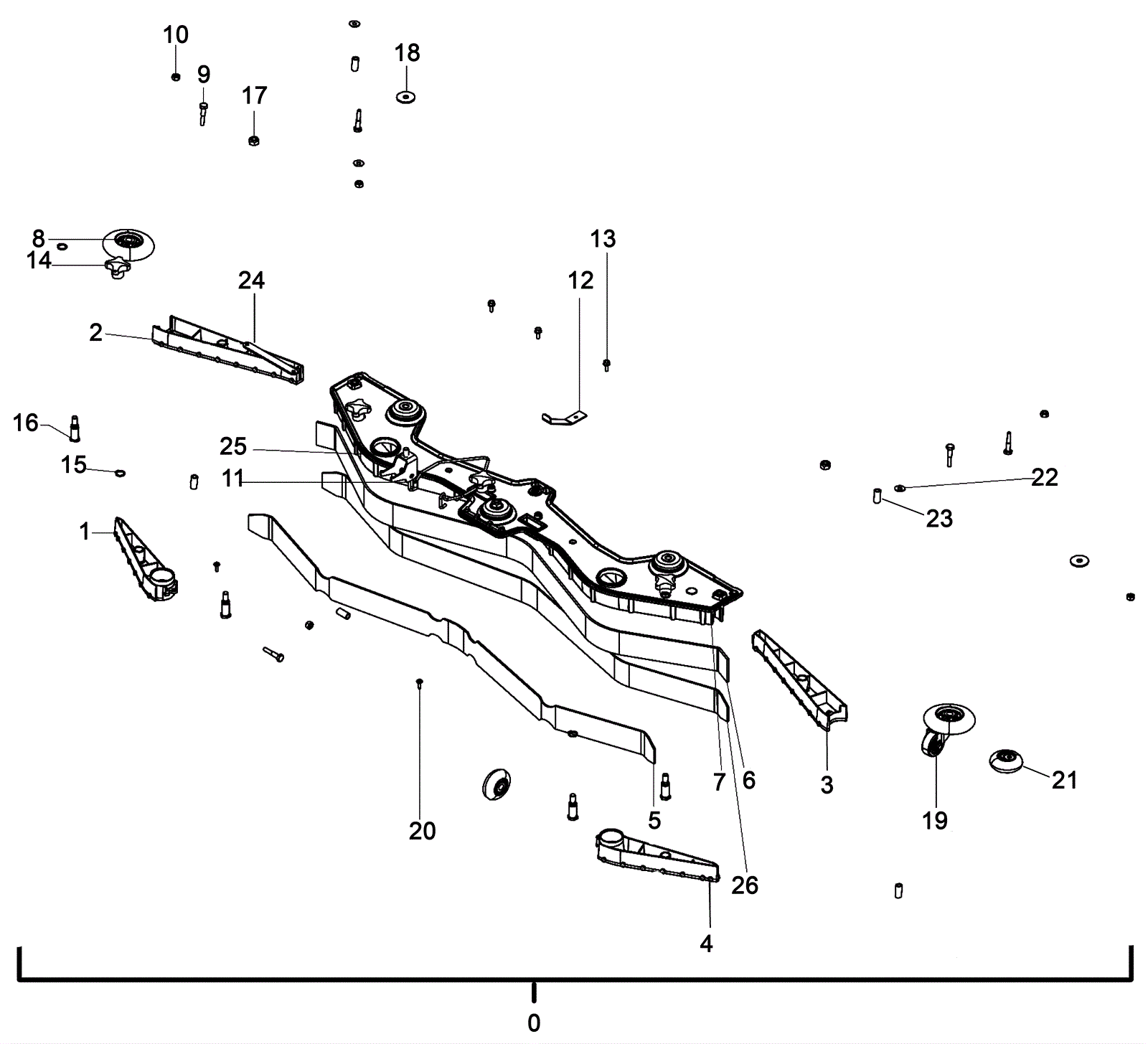

Squeegee assembly |
1 |
(includes 1-26) |
|
3 |
192-8965
|
Left side middle blade retainer |
1 |
|
|
4 |
192-8964
|
Left side blade retainer |
1 |
|
|
6b |
991-4048
|
Squeegee blade rear |
|
(NON-OEM) |
|
7 |
292-0024
|
Squeegee weldment |
1 |
|
|
8 |
192-8744
|
Wheel |
2 |
|
|
11 |
292-0002
|
Wire spring |
1 |
|
|
13 |
192-9360
|
Screw M6 x 16mm self tapping |
3 |
|
|
14 |
292-0004
|
Star knob |
4 |
|
|
17 |
192-6339
|
Nut M10 self locking |
3 |
|
|
18 |
192-0112
|
Washer |
2 |
|
|
19 |
192-9801
|
Castor wheel |
2 |
|
|
20 |
192-1571
|
Screw M50 x 16mm |
2 |
|
|
22 |
192-7424
|
Washer 8.4/20 |
4 |
|
|
24 |
292-0126
|
Holder bar |
1 |
|
|
