| # | Part | Description |
Req | Notes | Availability |
|---|

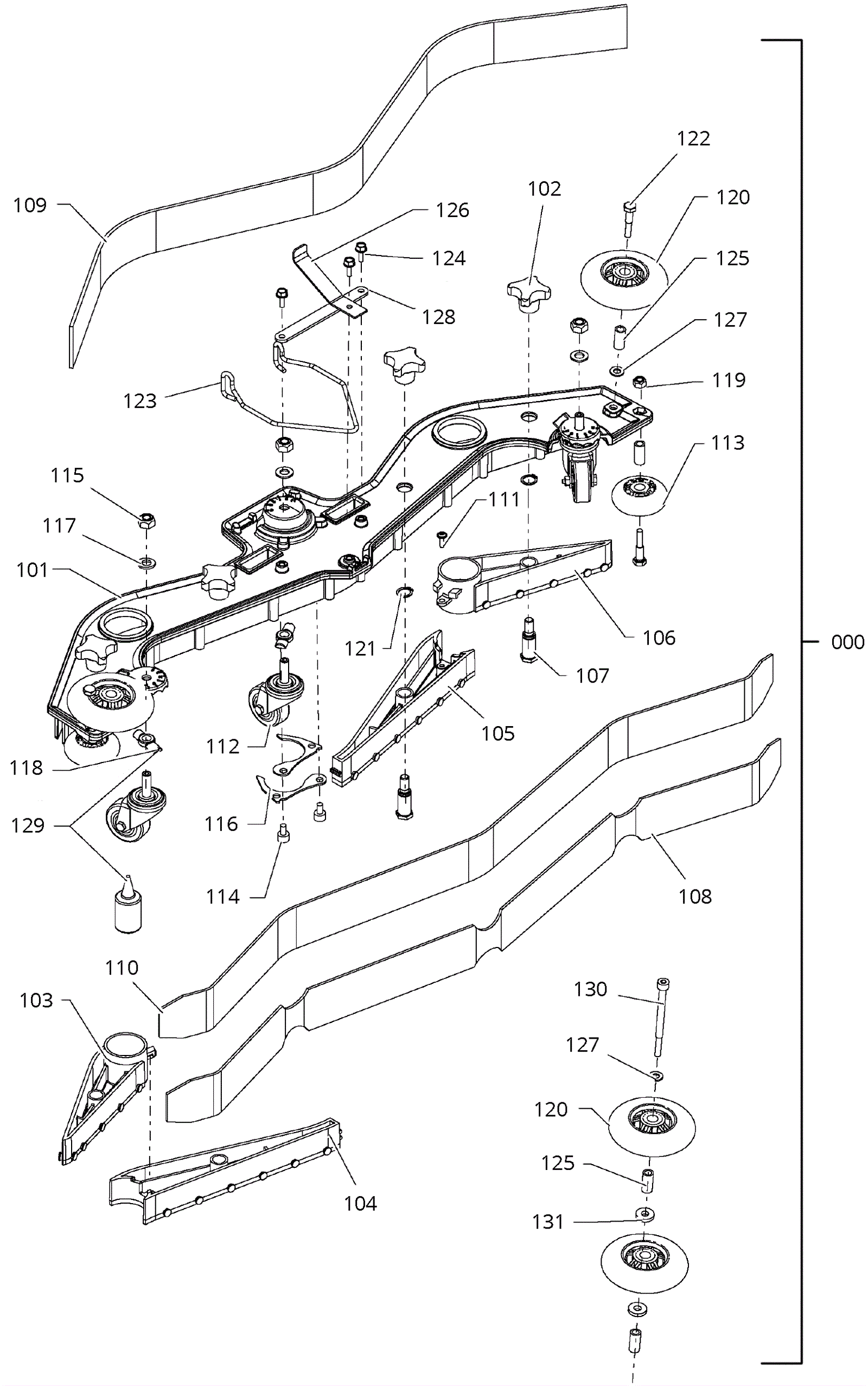

000 |
292-8573
|
Squeegee assembly |
1 |
(includes 101-131) |
|
101 |
292-8541
|
Squeegee weldment |
1 |
|
|
102 |
292-0004
|
Star knob |
4 |
|
|
103 |
292-8542
|
Holder |
1 |
|
|
104 |
292-8543
|
Holder |
1 |
|
|
105 |
292-8544
|
Holder |
1 |
|
|
106 |
292-8545
|
Holder |
1 |
|
|
107 |
292-0005
|
Screw M10 hex head |
4 |
|
|
108 |
292-8546
|
Squeegee blade front |
1 |
|
|
109a |
292-8547
|
Squeegee blade 43 inch rear |
1 |
|
|
109b |
292-1031
|
Squeegee blade rear |
1 |
(option) (1650/1850 after V5) |
|
110 |
292-0507
|
Squeegee blade for tile floors |
1 |
(option) |
|
111 |
192-1571
|
Screw M50 x 16mm |
2 |
|
|
112 |
292-8548
|
Caster wheel |
3 |
|
|
113 |
192-9802
|
Wheel |
2 |
|
|
114 |
192-0364
|
Screw M8 x 12mm socket head |
2 |
|
|
115 |
192-6339
|
Nut M10 self locking |
3 |
|
|
116 |
292-8549
|
Hook |
2 |
|
|
117 |
192-0496
|
Washer M10 |
3 |
|
|
118 |
292-8550
|
Locking bolt |
3 |
|
|
119 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
4 |
|
|
120 |
192-8744
|
Wheel |
2 |
|
|
121 |
192-0075
|
Retaining ring |
4 |
|
|
122 |
192-9212
|
Screw M8 x 40/22mm hex |
4 |
|
|
123 |
292-0002
|
Wire spring |
1 |
|
|
124 |
192-9360
|
Screw M6 x 16mm self tapping |
3 |
|
|
125 |
192-9803
|
Bushing |
4 |
(1650/1650R) |
|
126 |
292-0003
|
Flat spring |
1 |
|
|
127a |
192-0105
|
Washer M8 |
4 |
(1650/1650R before V6) |
|
127b |
192-7424
|
Washer 8.4/20 |
4 |
(1650/1850 after V5) |
|
128 |
292-0126
|
Holder bar |
1 |
|
|
129 |
192-1872
|
Grease |
1 |
|
|
130 |
192-6490
|
Screw M8 x 100mm socket head |
1 |
(1650R) (before V6) |
|
131 |
192-7425
|
Washer |
2 |
(1650R) (before V6) |
|
