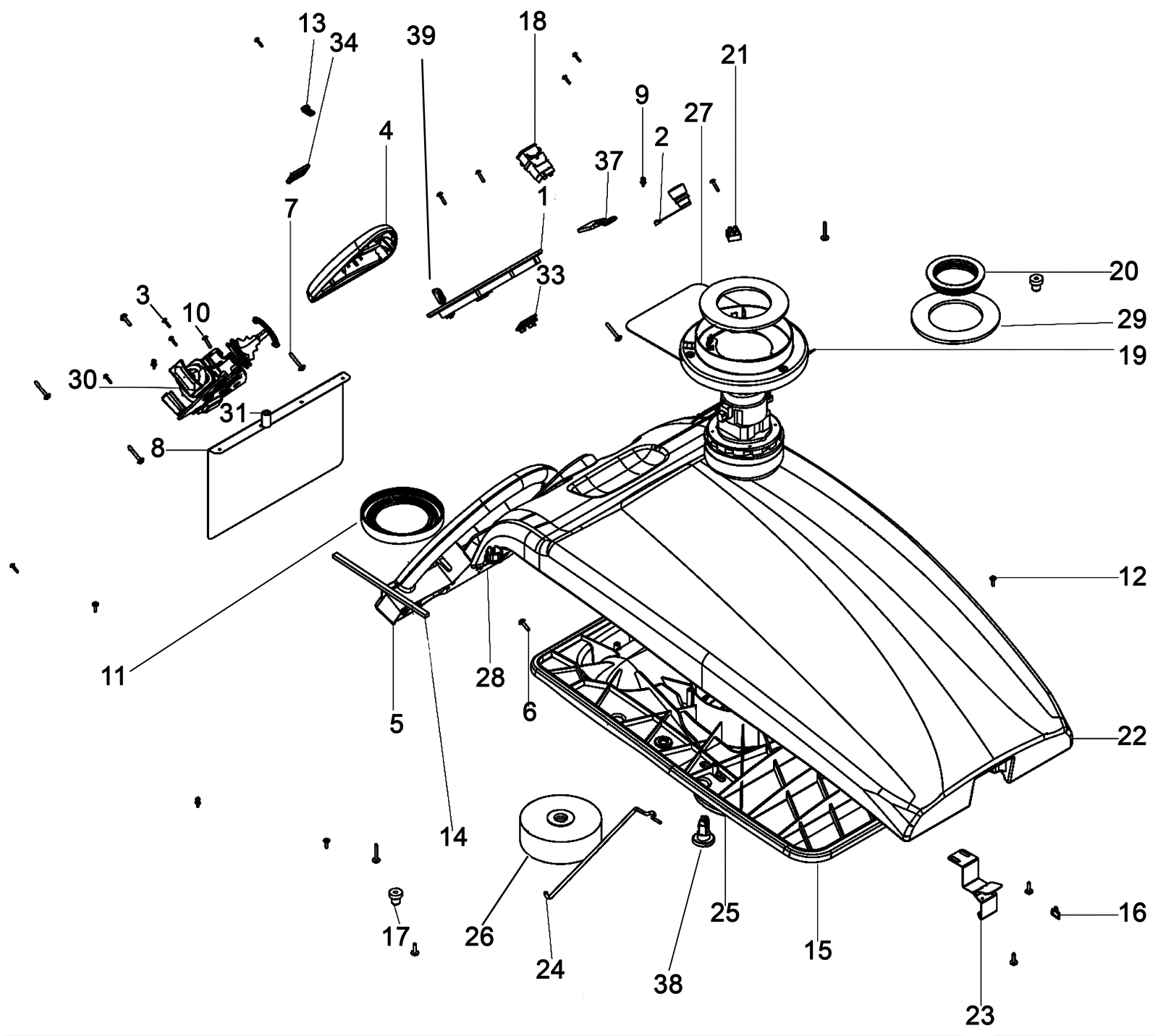

SWINGO 1655 Upper Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 192-8999 Dashboard $398.31 1 (includes 39a-39b) ships same day
2 192-8729 Actuator stop button $160.44 1 ships same day
3 192-1595 Screw M40 x 16mm torx head $2.44 7 ships same day
4 192-8941 Handle cover $21.37 1 usually ships 30-75 days
5 192-1587 Handle $92.99 1 ships same day
6 192-1561 Screw 60 x 20 torx head $2.44 6 ships same day
7 192-1557 Screw 60 x 35 torx head $2.44 6 ships same day
8 192-8942 Protection shield $7.45 1 ships same day
9 192-1559 Retaining rivet $4.52 4 ships same day
10 192-9147 Screw 50 x 20 $3.78 5 ships same day
11 192-1562 Guide ring $7.39 1 ships same day
12 192-1571 Screw M50 x 16mm $2.44 4 ships same day
13 192-2501 P clamp $4.59 1 ships same day
14 192-6310 Seal strip (sold by the inch) $0.99 73 in ships same day
15 192-8943 Base plate $191.70 1 (includes 38) ships same day
16 192-6334 Sealing profile (sold by the inch) $0.99 91 in ships same day
17 192-1575 Buffer $2.44 2 ships same day
18 192-0033 24V hour meter $81.88 1 (optional) usually ships 30-75 days
19 192-0770 24V 2 stage vacuum motor $257.63 1 ships same day
20 192-1569 Sealing ring $6.79 1 ships same day
21 192-0260 2-way connection block $2.81 1 ships same day
22 292-8537 Tank cover $296.14 1 ships same day
23 292-8538 Lock lever $28.16 1 ships same day
24 192-8947 Support bar $7.57 1 usually ships 30-75 days
25 192-3617 Filter $6.91 1 ships same day
26 192-1490 Float $31.38 1 ships same day
27 192-1570 Protection plate $22.34 1 ships same day
28 192-8948 Bushing $2.44 1 usually ships 30-75 days
29 192-1573 Gasket $2.44 2 ships same day
30a 192-5014 Mechanic hall sensor assembly $254.53 1 (includes 30b-30g) ships same day
30b 192-1582 Bolt $2.44 2 ships same day
30c 192-1977 Bellows $9.11 2 ships same day
30d 192-1584 Grid lever $2.44 2 ships same day
30e 192-1585 Pressure spring $5.37 2 ships same day
30f 192-6954 Switch lever $6.89 2 ships same day
30g 192-8721 Microswitch $27.98 1 ships same day
31 192-0732 Ferrite bushing $3.00 1 usually ships 30-75 days
33 192-3548 False cover $4.10 1 ships same day
34 192-8944 Cover $2.52 1 (optional) ships same day
37 192-4662 Key ring $4.71 1 usually ships 30-75 days
38 192-8753 Flange bolt $2.44 2 ships same day
39a 292-5708 Key switch $48.84 1 (includes 39c-39f) ships same day
39b 292-5254 Steel key $3.78 1 ships same day
39c 192-0149 Washer $2.44 1 ships same day
39d 192-8584 Screw 40 x 8 $2.44 1 usually ships 30-75 days
39e 192-7068 Tension spring $2.44 1 ships same day
39f 292-5255 Switch cover $2.44 1 ships same day
N/S 192-0973 3 1/4 inch cable tie $2.44 2 usually ships 30-75 days
N/S 192-9486 Wiring harness $7.28 1 (optional) usually ships 30-75 days
N/S 192-8892 6-way ribbon cable $10.21 1 ships same day
