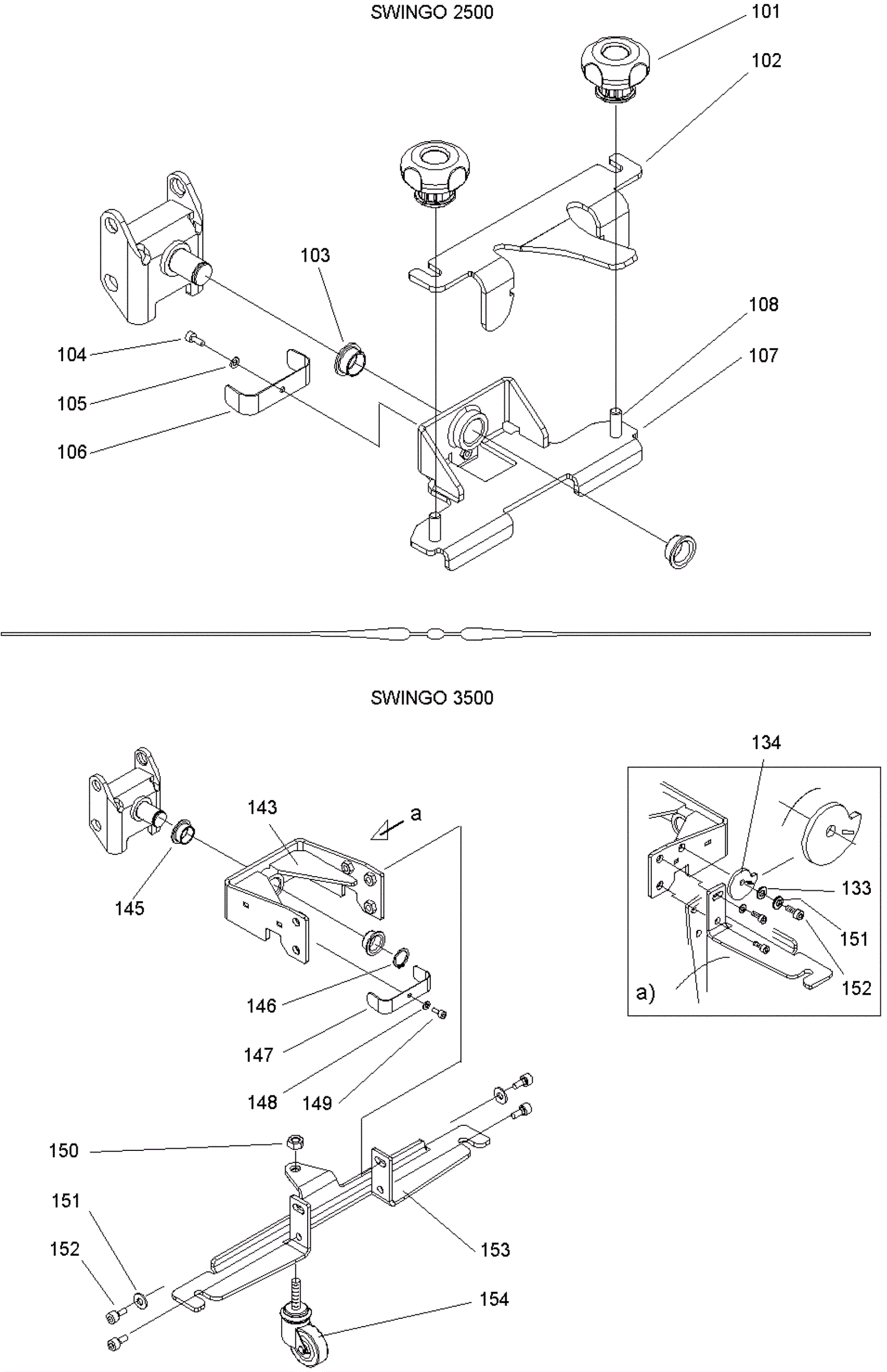

COMBIMATSWINGO3500 Squeegee Mechanism Support Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-0111 Star knob $18.88 2 (2500) ships same day
102 192-8786 Support $94.31 1 (2500) ships same day
103 192-1044 Slide bearing $3.37 2 (2500) ships same day
104 192-0077 Screw M5 x 12mm socket head $0.89 1 (2500) ships same day
105 192-0880 Washer M5 $0.89 1 (2500) ships same day
106 192-1045 Holder $27.93 1 (2500) usually ships 10-39 days
107 192-8785 Bracket $84.09 1 (2500) usually ships 10-39 days
108 192-1872 Grease $11.99 1 (2500) ships same day
133 292-5113 Wave washer (OBSOLETE) $2.22 1 (3500) usually ships 10-39 days
134 192-8750 Cam disk $5.62 1 (3500) usually ships 10-39 days
143 192-1042 Support (OBSOLETE) $79.92 1 (3500) ships same day
145 192-1044 Slide bearing $3.37 2 (3500) ships same day
146 192-0807 Retaining ring $2.44 1 (3500) ships same day
147 192-1045 Holder $27.93 1 (3500) usually ships 10-39 days
148 192-0880 Washer M5 $0.89 1 (3500) ships same day
149 192-0077 Screw M5 x 12mm socket head $0.89 1 (3500) ships same day
150 192-1135 Nut M10 hex $2.22 1 (3500) ships same day
151 192-0079 Washer $0.89 3 (3500) ships same day
152 192-0243 Screw M8 x 20mm socket head $2.22 5 (3500) usually ships 10-39 days
153 192-1046 Squeegee mounting bracket $110.33 1 (3500) ships same day
154 192-1047 Caster wheel $47.80 1 (3500) ships same day
