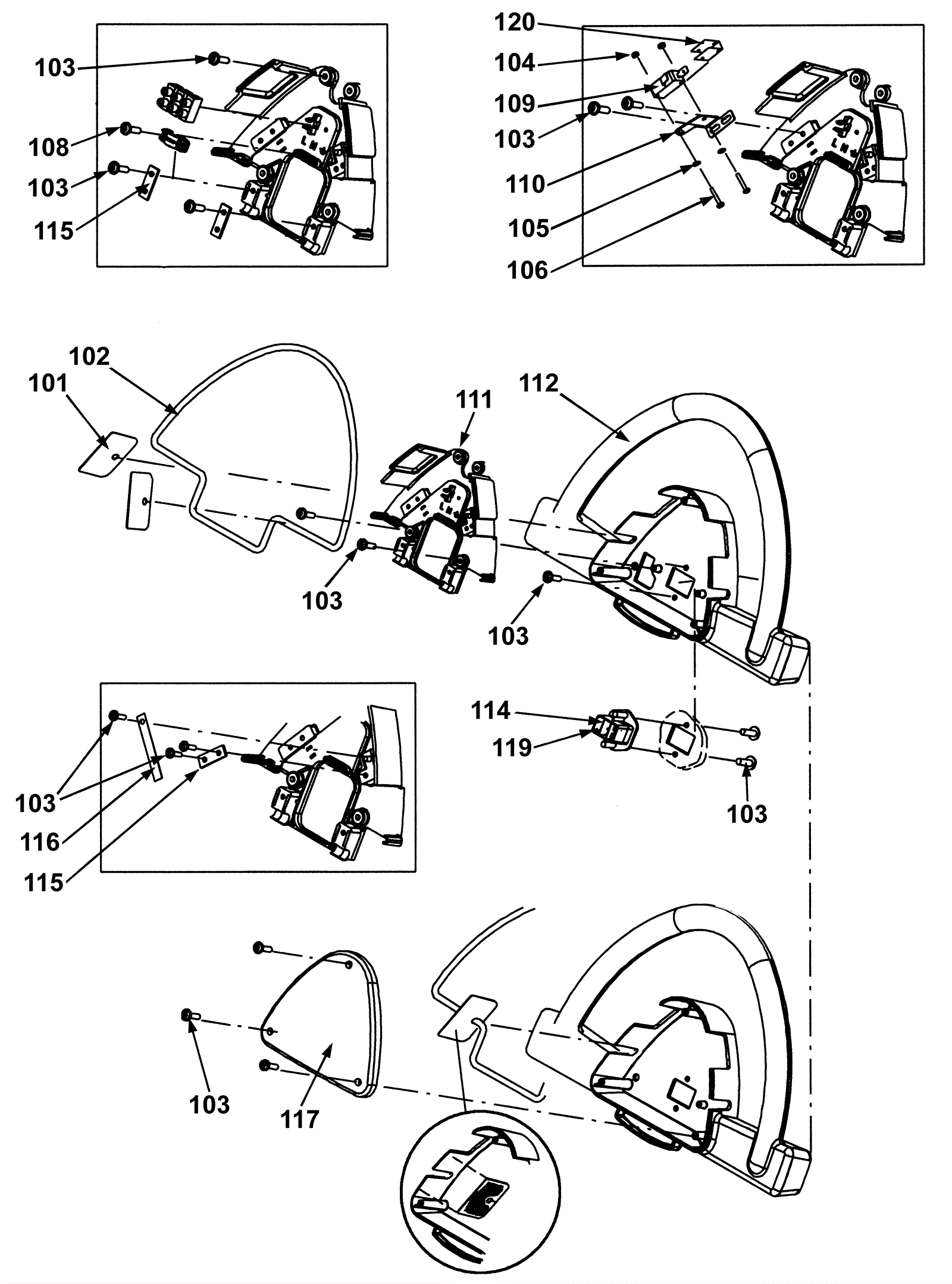

SWINGO 750E Handle Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-1593 Protection shield $2.56 2 usually ships 1-5 days
102 192-1594 Switching bow $17.95 1 usually ships 17-21 days
103 192-1595 Screw M40 x 16mm torx head $2.56 15 ships same day
104 192-0048 Nut M3 hex $2.56 2 usually ships 17-21 days
105 192-0677 Washer M3 $2.56 2 usually ships 17-21 days
106 192-0054 Screw M3 x 16mm raised cheese head $5.01 2 ships same day
108 192-0452 Screw for plastic KA 30 x 16mm $2.56 2 usually ships 17-21 days
109 192-0681 Microswitch $14.18 1 ships same day
110 192-1598 Switch bracket $4.82 1 usually ships 1-5 days
111 192-2166 Bracket $11.92 1 ships same day
112 192-1587 Handle $97.64 1 ships same day
114 192-0938 Socket plug $8.20 1 ships same day
115 192-1596 Clamp $5.47 3 usually ships 17-21 days
116 192-1597 Spring $7.18 1 usually ships 17-21 days
117 192-1588 Cover $28.84 1 usually ships 1-5 days
119 192-3591 Female plate clip $2.56 1 usually ships 1-5 days
120 192-6951 Switch insulation $3.85 1 usually ships 17-21 days
