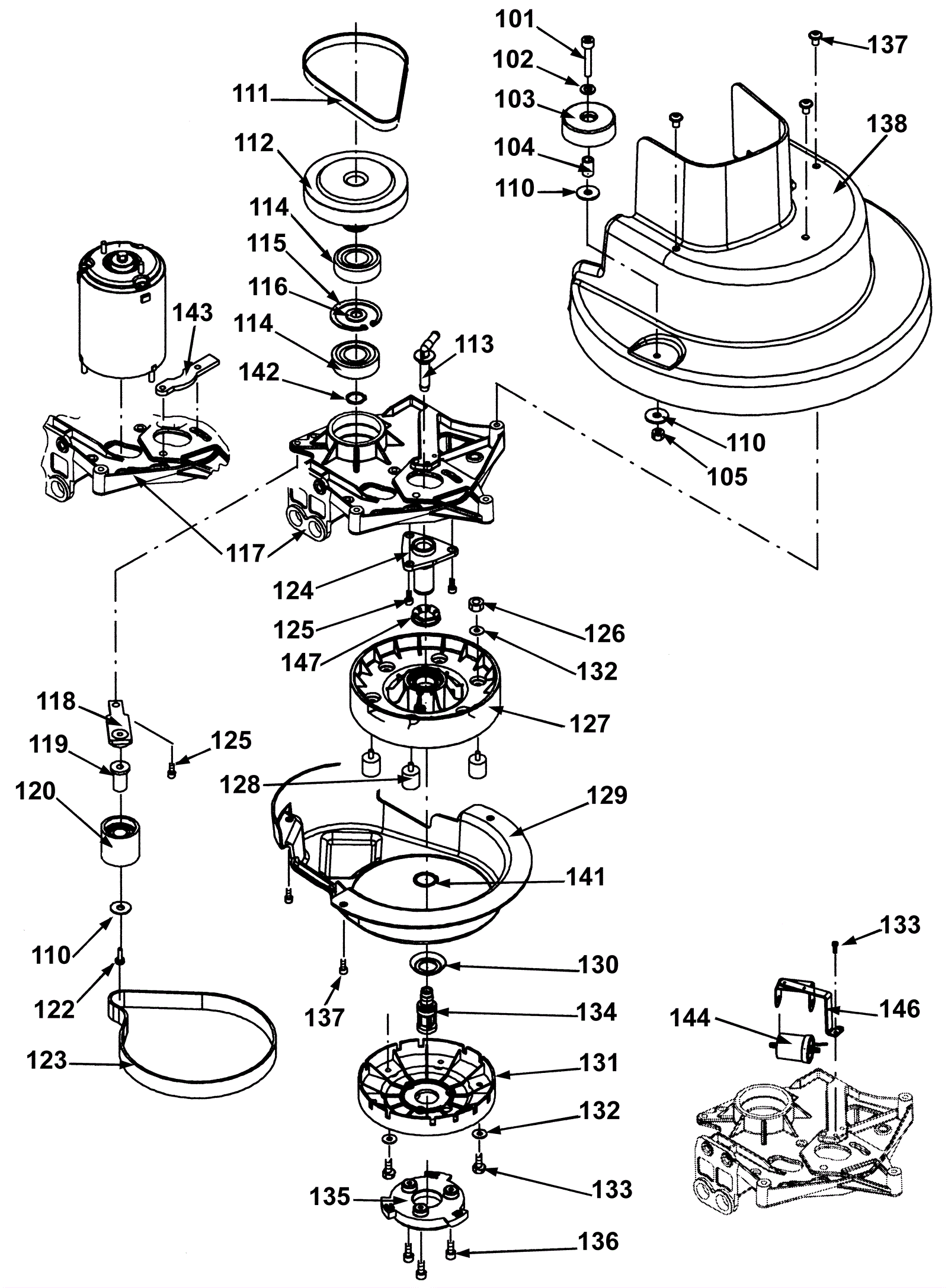

SWINGO 750B Brush Drive Assembly - ECO Series 3/Power Series 2 After 2006

#PartDescriptionPriceReqNotesAvailability
101 192-1289 Screw M8 x 35mm socket head cap $4.74 1 usually ships 24-40 days
102 192-0105 Washer M8 $2.56 1 ships same day
103 192-0329 Bumper wheel $3.66 1 ships same day
104 192-1290 Bushing $5.47 1 ships same day
105 192-4211 Nut M8 hex $2.56 1 ships same day
110 192-0604 Washer M8 $2.56 3 ships same day
111 192-5625 Poly v-belt $21.15 1 ships same day
112 192-4607 Intermediate pulley $20.38 1 ships same day
113 192-1677 Angled nipple $2.56 1 ships same day
114 192-0481 Ball bearing $10.71 2 ships same day
115 192-0483 Retaining ring $2.56 1 ships same day
116 192-0482 Spacer $2.56 1 ships same day
117 192-8632 Brush base plate $83.80 1 usually ships 24-40 days
118 192-2824 Clamping lever $21.36 1 ships same day
119 192-0606 Bushing $7.82 1 ships same day
120 192-0607 Belt tensioner roller $12.77 1 ships same day
122 192-0104 Screw M8 x 45mm socket head cap $2.56 1 ships same day
123 192-5624 Poly v-belt $52.05 1 ships same day
124 192-0590 Pulley axle $13.33 1 ships same day
125 192-0036 Screw M8 x 20mm socket head $2.56 4 ships same day
126 192-0563 Nut M6 self-locking $2.56 6 ships same day
127 192-5836 Pulley with bearings $51.61 1 (earings not available separately) ships same day
128 192-5836 Pulley with bearings $51.61 1 (buffer no longer sold separately) ships same day
129 192-3080 Cover $12.31 1 ships same day
130 192-6320 Sealing ring $2.56 1 ships same day
131 192-9537 Catch $17.90 1 ships same day
132 192-0216 Washer $1.22 12 ships same day
133 192-1109 Screw M6 x 10mm hex head $0.89 8 ships same day
134 192-2727 Center plug $3.72 1 ships same day
135 192-3034 Drive hub $5.84 1 ships same day
136 192-6292 Screw for plastic KA 50 x 40 $4.82 3 ships same day
137 192-0348 Screw M8 x 12mm truss head $2.56 6 ships same day
138a 192-2275 Brush housing $70.97 1 (17 inch) ships same day
138b 192-2278 Brush housing $195.77 1 (20 inch) ships same day
141 192-0503 Retaining ring $2.56 1 ships same day
142 192-0485 Retaining ring $5.34 1 ships same day
143 192-2012 Belt tensioner $4.74 1 ships same day
144 192-5845 24V pump $165.33 1 ships same day
146 192-8583 Pump bracket $32.69 1 usually ships 24-40 days
147 192-6321 Sealing ring $3.93 1 ships same day
N/S 192-1872 Grease $11.99 1 ships same day
