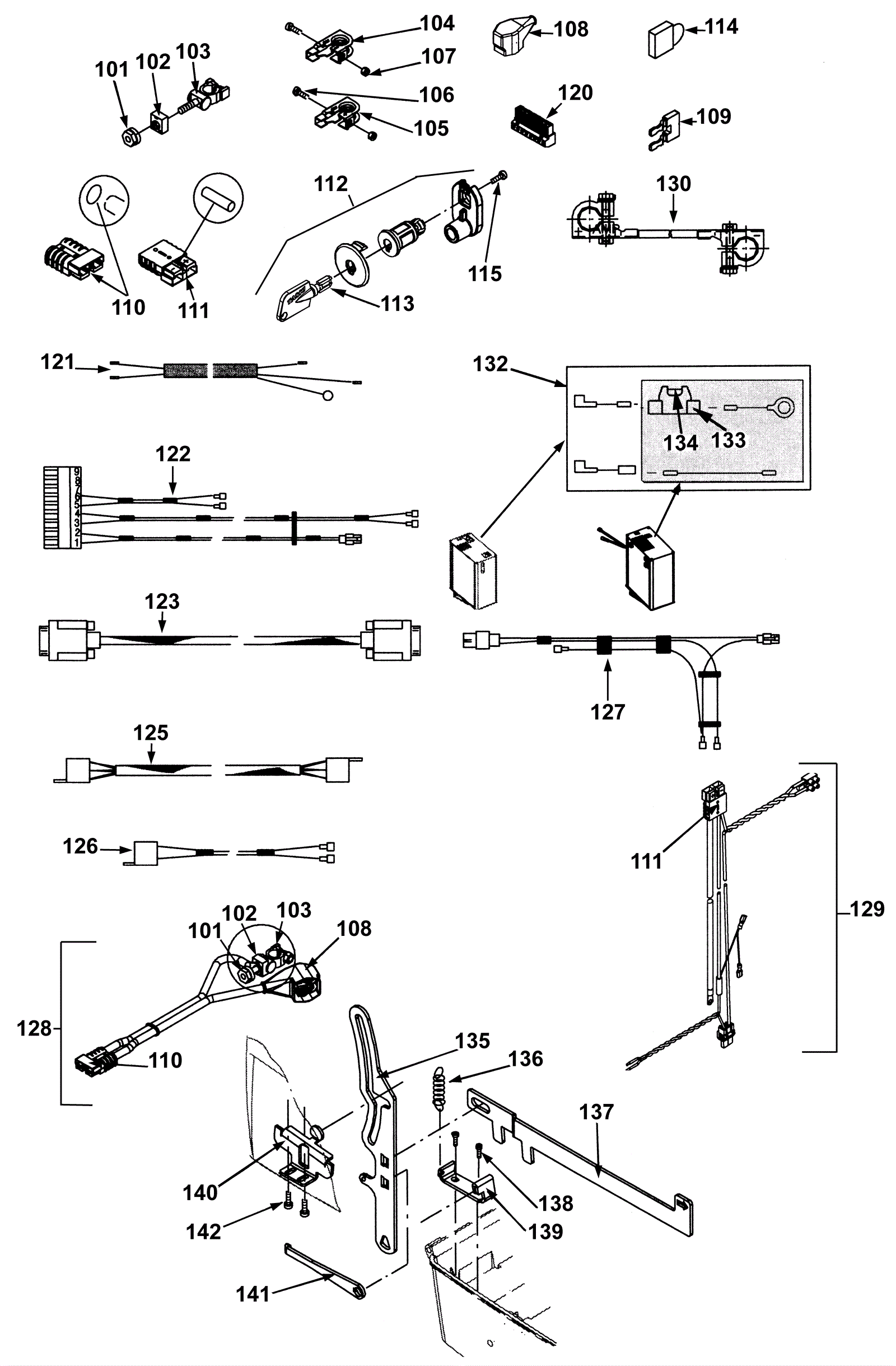

SWINGO 750B Various Spare Parts

#PartDescriptionPriceReqNotesAvailability
101 192-4577 Insulating nut $22.06 1 usually ships 30-75 days
102 192-1420 75amp fuse $16.68 1 ships same day
103 192-2505 Battery cable clamp $22.42 1 ships same day
104 192-1926 Negative battery clamp $5.98 1 ships same day
105 192-1927 Positive battery clamp $7.49 1 ships same day
106 192-4224 Screw M6 x 35mm hex head $2.76 1 usually ships 30-75 days
107 192-0151 Nut M6 hex $2.44 1 ships same day
108 192-0886 Battery post cover $13.31 1 ships same day
109 192-4644 Jumper $7.45 1 usually ships 30-75 days
110 192-0389 50amp charger plug SB50 with hole (gray) $16.68 1 ships same day
111 192-0388 50amp charger plug SB50 with post (gray) $8.86 1 ships same day
112 192-4658 Key switch assembly (OBSOLETE) $48.14 1 (includes 113 and 115) usually ships 30-75 days
113 292-5254 Steel key $3.78 1 ships same day
114 192-8584 Screw 40 x 8 $2.44 1 usually ships 30-75 days
115 192-8584 Screw 40 x 8 $2.44 1 usually ships 30-75 days
120a 192-1622 8 Way plug (OBSOLETE) $41.44 1 (power series 2) (after 2006) usually ships 30-75 days
120b 192-1621 6 Way plug $42.49 1 (eco series 3) (after 2005) usually ships 30-75 days
121a 192-7535 Wiring harness $45.38 1 (power series 2) (after 2006) usually ships 1-5 days
121b 192-7532 Wiring harness (OBSOLETE) $24.08 1 (eco series 3) (after 2005) usually ships 1-5 days
122 192-7534 Wiring harness $58.43 1 (power series 2) (after 2006) usually ships 30-75 days
123 192-1522 Control cable - 750B - Power board to Dash board $13.57 1 usually ships 30-75 days
125 192-2949 Control cable - powerboard to dashboard $133.35 1 usually ships 30-75 days
126 192-2482 Wire assembly with small SB50 red connector $12.09 1 (eco series 3) (after 2006) usually ships 1-5 days
127 192-2512 Cable assembly (OBSOLETE) $32.48 1 (eco series 3) (after 2006) usually ships 30-75 days
128 192-7536 Wiring harness - Anderson to battery $214.60 1 (includes 101-103, 180, 110) usually ships 30-75 days
129 192-7537 Wiring harness - Anderson to board (OBSOLETE) $91.82 1 (includes 11) (eco series 3 after 2006) (only works for board 192-3243) usually ships 30-75 days
130 192-1406 Battery cable $61.29 1 ships same day
132 192-8927 Cable set $54.38 1 usually ships 1-5 days
133 192-3890 Fuse holder $15.87 1 usually ships 30-75 days
134 192-8928 Fuse clip $2.44 1 usually ships 30-75 days
135 192-9248 Bracket Call for price 1 (series 1) usually ships 30-75 days
136 192-0710 Tension spring $2.44 1 (series 1) usually ships 30-75 days
137 192-9249 Tension lever (OBSOLETE) Call for price 1 (series 1) usually ships 1-5 days
138 192-1561 Screw 60 x 20 torx head $2.44 2 (series 1) ships same day
139 N/A Not available Call for price 1 (pillow block) (series 1) usually ships 3-26 days
140 192-9251 Catch (OBSOLETE) Call for price 1 (series 1) usually ships 1-5 days
141 192-9303 Lever (OBSOLETE) Call for price 1 (series 1) usually ships 1-5 days
142 192-1571 Screw M50 x 16mm $2.44 2 (series 1) ships same day
N/S 998-0039 22-18 Nylon Male $0.99 1 usually ships 11-24 days
N/S 998-0040 22-18 Nylon Female Electrical Connector $0.99 1 ships same day
N/S 192-9329 Communication cable (dashboard to power electronic) $13.43 1 ships same day
N/S 192-6014 Reset key set $313.24 1 (to reset service hours) usually ships 30-75 days
N/S 192-1592 Plastic key $2.44 1 (does not work with metal key machines) ships same day
N/S 192-2573 Cable strand (OBSOLETE) $260.88 1 (power) usually ships 30-75 days
N/S 192-2948 Communication cable $60.17 1 (power) usually ships 30-75 days
N/S 192-0712 Coil with toric core $6.79 1 (power) usually ships 30-75 days
