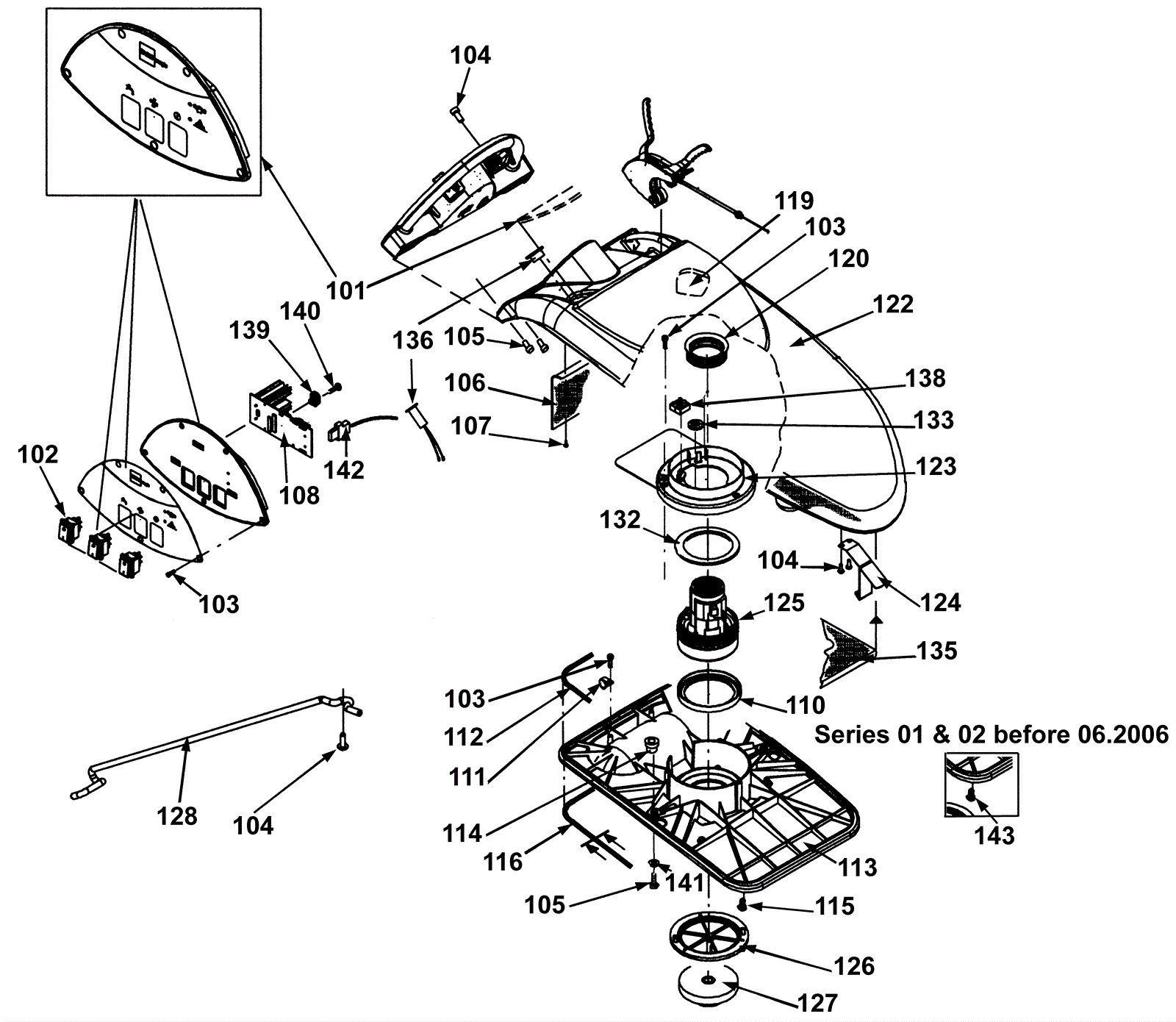

SWINGO 1250E Upper Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-2945 Control board $156.33 1 usually ships 1-5 days
102 192-6107 2 position rocker switch $10.46 3 ships same day
103 192-1571 Screw M50 x 16mm $2.56 10 ships same day
104 192-1561 Screw 60 x 20 torx head $2.56 5 ships same day
105 192-1557 Screw 60 x 35 torx head $2.56 6 usually ships 17-21 days
106 192-1560 Protective shield $14.89 1 usually ships 1-5 days
107 192-1559 Retaining rivet $4.74 4 ships same day
108a 192-5707 Circuit board (OBSOLETE) $490.45 1 usually ships 17-21 days
108b 192-1589 Fuse (slow blow) $2.56 1 ships same day
110 192-1562 Guide ring $7.77 1 ships same day
111 192-2501 P clamp $4.82 1 ships same day
112 192-6310 Seal strip (sold by the inch) $0.99 62in ships same day
113 192-1908 Base plate $179.36 1 usually ships 17-21 days
114 192-1575 Buffer $2.56 2 usually ships 17-21 days
115 192-8753 Flange bolt $2.56 2 ships same day
116 192-6334 Sealing profile (sold by the inch) $0.99 78 in usually ships 17-21 days
119 192-1590 Noise absorbing plate $13.21 1 usually ships 17-21 days
120 192-1569 Sealing ring $7.13 1 ships same day
122 192-3149 Tank cover $308.25 1 usually ships 17-21 days
123 192-1570 Protection plate $18.07 1 ships same day
124 192-4811 Lock lever $35.95 1 usually ships 17-21 days
125a 192-1489 120V vacuum motor $378.80 1 ships same day
125b 192-2656 Carbon brush (pkg of 2) $8.72 2 usually ships 1-5 days
125c 192-3370 Double female plate clip $6.23 2 usually ships 1-5 days
126 192-3617 Filter $7.26 1 ships same day
127 192-1490 Float $32.95 1 ships same day
128 192-1566 Support bar (OBSOLETE) $44.22 1 usually ships 17-21 days
132 192-1573 Gasket $2.56 2 ships same day
133 192-0112 Washer $2.56 1 ships same day
135 192-5255 Noise absorbing plate $22.00 1 usually ships 17-21 days
136a 192-6775 Plug $2.56 1 usually ships 17-21 days
136b 192-7543 Hour meter 120V 60 hz (OBSOLETE) $269.50 1 usually ships 1-5 days
138 192-0260 2-way connection block $2.95 1 ships same day
139 192-8932 Bracket $3.33 1 usually ships 17-21 days
140 192-8584 Screw 40 x 8 $2.56 1 usually ships 17-21 days
141 N/A Not available Call for price 2 Washer, Series 01 usually ships 3-26 days
142 192-1578 Cable adjustment set $1,000.98 1 Series 01 usually ships 17-21 days
143 192-1561 Screw 60 x 20 torx head $2.56 4 Series 01 and Series 02 before 06.2006 ships same day
N/S 192-6014 Reset key set $328.90 1 (to reset service hours) usually ships 17-21 days
