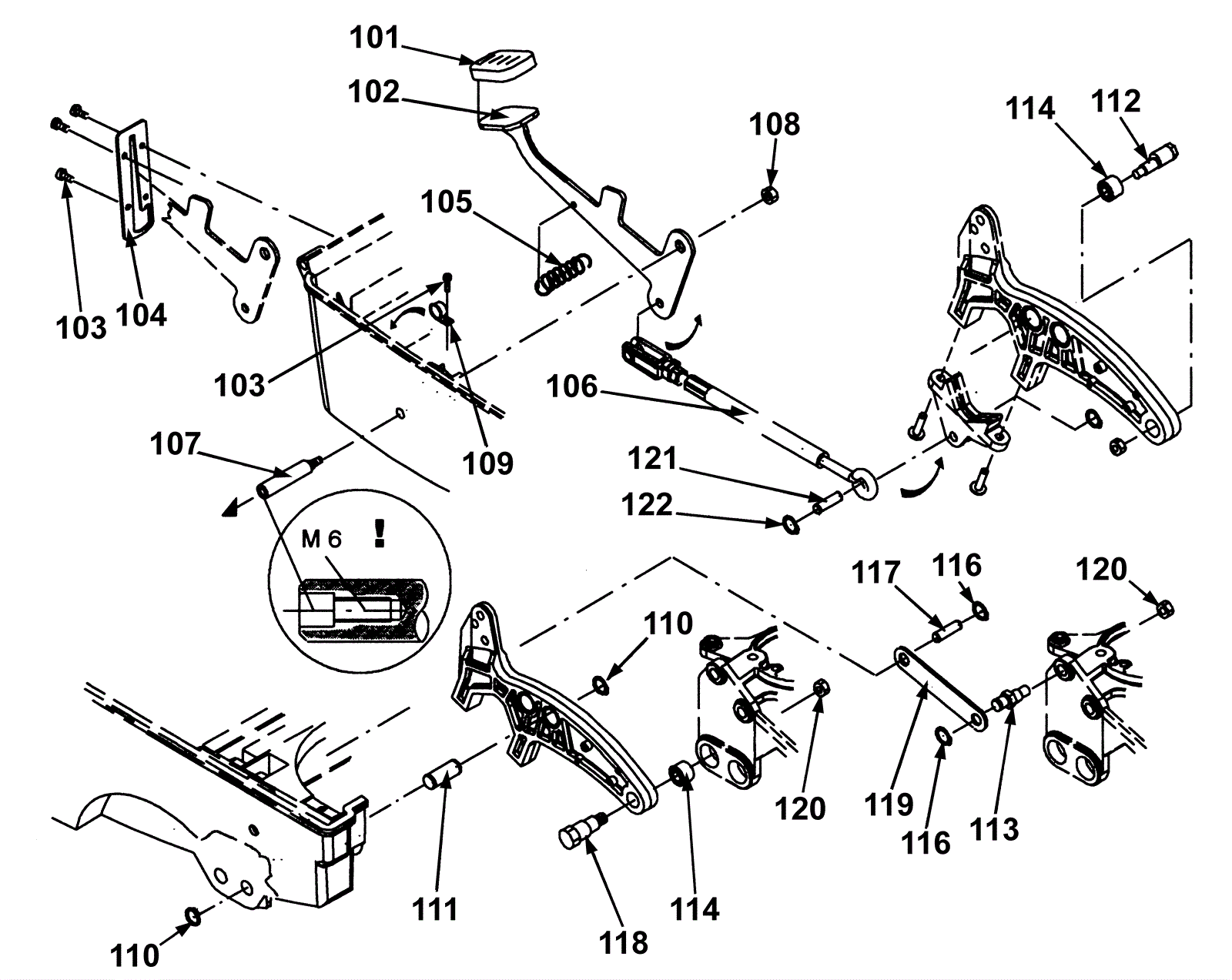

SWINGO 1250E Tool Lowering Assembly - Series 01

#PartDescriptionPriceReqNotesAvailability
101 192-1096 Pedal pad $25.76 1 usually ships 30-75 days
102 192-3822 Foot lever $31.09 1 ships same day
103 192-1571 Screw M50 x 16mm $2.44 5 ships same day
104 192-4018 Bracket $8.25 1 usually ships 30-75 days
105 192-7071 Tension spring $5.86 1 usually ships 30-75 days
106 192-5894 Rack pusher $96.66 1 usually ships 30-75 days
107 192-8754 Clevis pin $13.67 1 usually ships 30-75 days
108 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
109 192-2501 P clamp $4.59 1 ships same day
110 192-0075 Retaining ring $5.81 4 ships same day
111 192-1775 Axle $8.99 2 ships same day
112 192-3443 Eccentric shaft (OBSOLETE) $27.03 1 usually ships 1-5 days
113 192-3442 Eccentric shaft (OBSOLETE) $41.33 1 usually ships 1-5 days
114 192-1953 Bushing $18.93 2 ships same day
116 192-0086 Snap ring $2.44 3 ships same day
117 192-1774 Axle $5.81 1 usually ships 30-75 days
118 192-1780 Axle $12.10 1 usually ships 30-75 days
119 192-4760 Lever (OBSOLETE) $4.69 1 usually ships 1-5 days
120 192-0347 Nut M8 hex $0.89 1 ships same day
121 192-1779 Axle $5.20 3 ships same day
122 192-6050 Retaining ring $3.25 1 ships same day
130 192-4228 Screw M8 x 16mm hex head $2.44 2 usually ships 30-75 days
131 192-3077 Disk $4.03 2 ships same day
132 192-2672 Wheel $85.59 2 ships same day
135 192-5690 Pressure spring 4/29 x 185 $32.60 2 usually ships 1-5 days
136 N/A Not available Call for price 1 Axle usually ships 3-26 days
137 192-2168 Bracket $8.91 1 ships same day
138 192-1509 Screw 60 x 25 torx head $4.35 2 ships same day
139 192-3209 Cradle $14.29 4 ships same day
140 192-3078 Cover (OBSOLETE) $6.84 2 ships same day
141 192-5507 Pipe $9.28 2 usually ships 1-5 days
