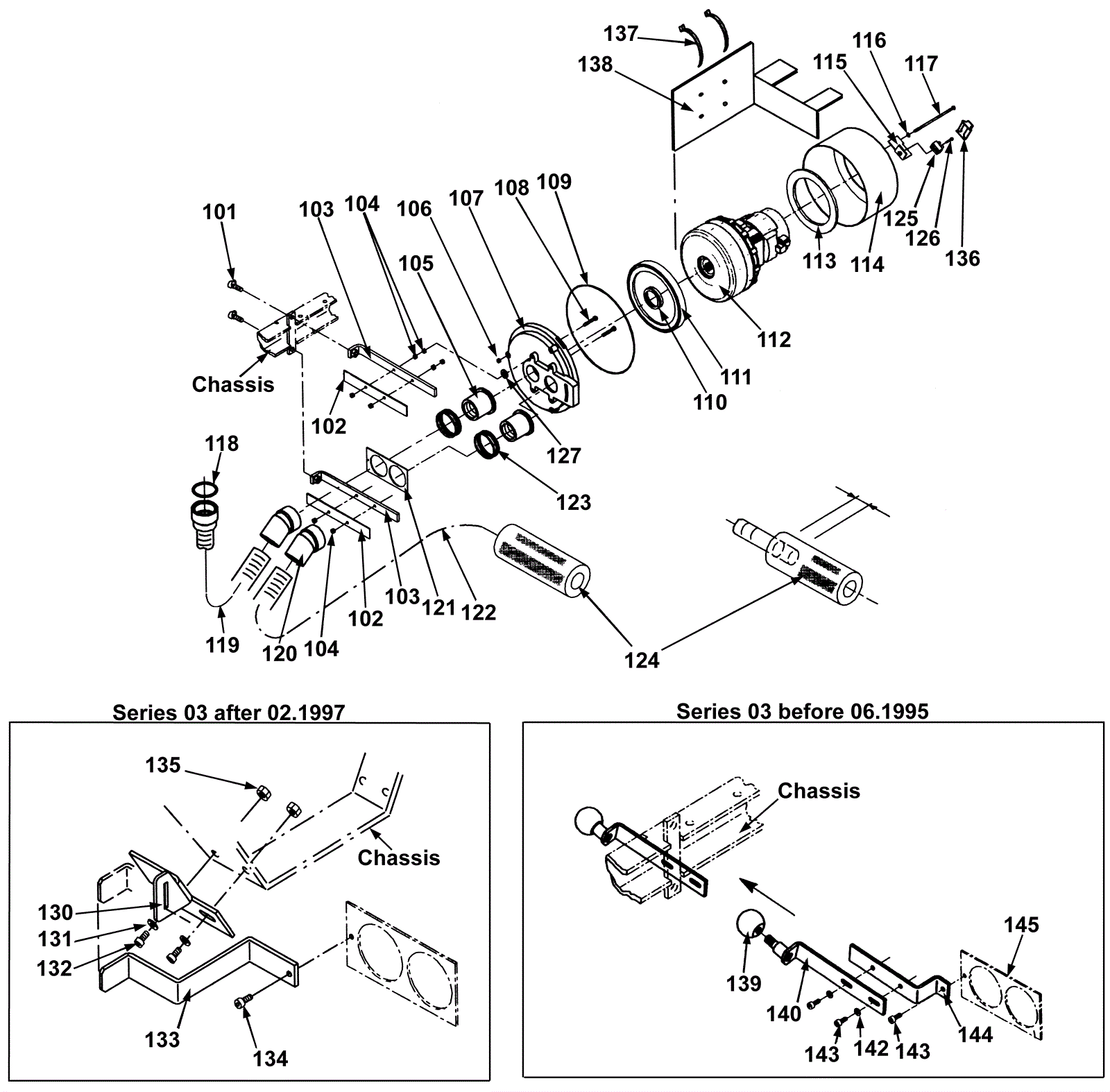

COMBIMAT 1900 Vacuum Unit Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-0078 Screw M8 x 16mm socket head $2.44 2 ships same day
102 192-0408 Guiding strip $6.89 2 usually ships 1-5 days
103 192-0409 Bracket $26.22 2 usually ships 1-5 days
104 192-0383 Nut M5 hex $0.89 12 ships same day
105 192-0251 Hose socket $17.34 2 usually ships 30-75 days
106 192-0039 Nut M4 hex $4.10 3 usually ships 30-75 days
107 192-0411 Motor flange $27.18 1 usually ships 1-5 days
108 192-0412 Screw M5-1 x M30 hex head $2.44 4 usually ships 1-5 days
109 192-0413 Gasket (sold by the inch) $0.99 22 in usually ships 30-75 days
110 192-0414 Valve seal $14.61 1 ships same day
111 192-0253 Gasket (OBSOLETE) $6.47 1 usually ships 30-75 days
112a 192-0956 24V 3 stage vac motor $241.00 1 ships same day
112b 192-0255 Carbon brush (sold individually) $8.31 2 usually ships 30-75 days
113 192-0415 Seal $12.31 1 usually ships 30-75 days
114 192-0416 Motor cover (OBSOLETE) $80.07 1 usually ships 30-75 days
115 192-0417 Holder $59.21 1 usually ships 30-75 days
116 192-1195 Washer M4 $2.44 3 ships same day
117 192-0418 Screw 4mm cylindrical $11.01 3 usually ships 30-75 days
118 192-0115 O-ring $2.68 1 usually ships 30-75 days
119 192-0258 Hose $20.12 1 usually ships 30-75 days
120 192-0259 Angled hose cuff (OBSOLETE) $22.88 2 usually ships 30-75 days
121 192-0419 Slider $22.59 1 usually ships 1-5 days
122a 192-0420 Hose (sold by the inch) $0.99 22 in (1500/1700/1900) (series 3 after 02.1997) ships same day
122b 192-0420 Hose (sold by the inch) $0.99 24 in (1500/1900) (series 1, 2, 3 before 06.1995) ships same day
122c 192-0420 Hose (sold by the inch) $0.99 28 in (1700) (series 1, 2, 3 before 06.1995) ships same day
123 192-0421 Pressure spring $9.97 2 usually ships 1-5 days
124 192-0422 Noise absorbing hose $35.95 1 usually ships 1-5 days
125 192-0260 2-way connection block $2.81 1 ships same day
126 192-0054 Screw M3 x 16mm raised cheese head $4.76 1 ships same day
127 192-0880 Washer M5 $0.89 4 ships same day
130 192-0423 Guide bracket (OBSOLETE) $19.54 1 (series 3 after 02.1997) usually ships 30-75 days
131 192-0079 Washer $0.89 2 (series 3 after 02.1997) ships same day
132 192-0036 Screw M8 x 20mm socket head $2.44 2 (series 3 after 02.1997) ships same day
133 192-0424 Lever $21.08 1 (series 3 after 02.1997) usually ships 1-5 days
134 192-0425 Screw M4 x 10mm socket head cap $2.44 1 (series 3 after 02.1997) usually ships 30-75 days
135 192-0347 Nut M8 hex $0.89 2 (series 3 after 02.1997) ships same day
136 N/A Not available Call for price 1 (cover) (series 4 after 05.2003) usually ships 3-26 days
137 192-0794 Cable tie $0.89 2 (series 4 after 05.2003) ships same day
138 192-8638 Bracket Call for price 1 (series 4 after 05.2003) usually ships 1-5 days
139 192-4155 Handle ball $6.91 1 (series 1, 2, 3 before 06.1995) usually ships 30-75 days
140 192-2171 Bracket (OBSOLETE) $28.09 1 (series 1, 2, 3 before 06.1995) usually ships 1-5 days
142 192-7416 Washer 4. 3/8 $2.44 2 (series 1, 2, 3 before 06.1995) usually ships 30-75 days
143 192-0425 Screw M4 x 10mm socket head cap $2.44 3 (series 1, 2, 3 before 06.1995) usually ships 30-75 days
144 192-2172 Bracket (OBSOLETE) $15.74 1 (series 1, 2, 3 before 06.1995) usually ships 1-5 days
145 192-0419 Slider $22.59 1 (series 1, 2, 3 before 06.1995) usually ships 1-5 days
