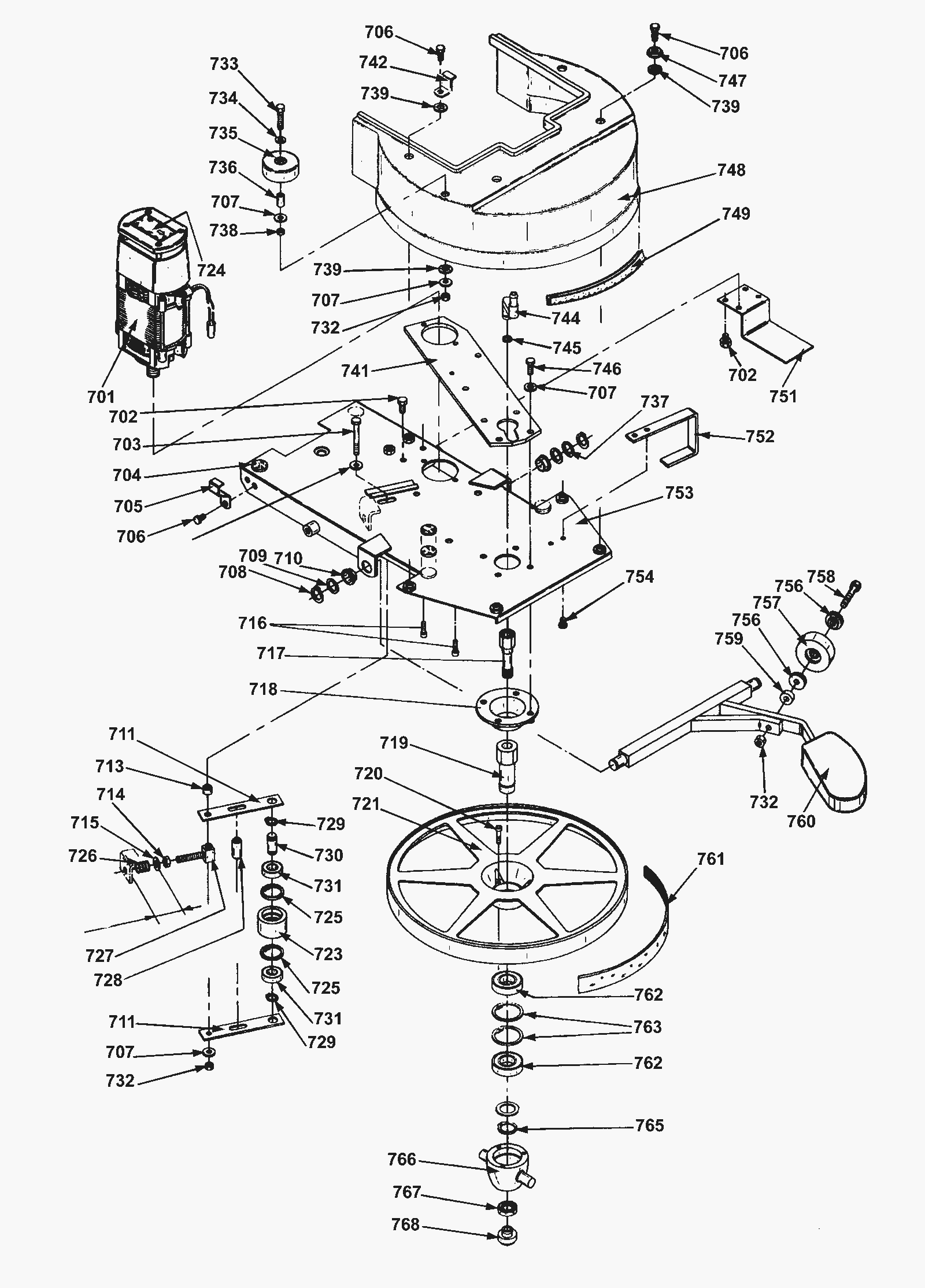

| # | Part | Description |
Req | Notes | Availability |
|---|
701 |
192-1273
|
Brush motor assembly (OBSOLETE) |
1 |
|
|
702 |
192-0509
|
Screw M8 x 12mm hex head |
2 |
|
|
703 |
192-1039
|
Screw M8 x 60mm hex head |
2 |
|
|
704 |
192-1192
|
Disc (OBSOLETE) |
2 |
|
|
706 |
999-0517
|
Bolt M8-1.25 x 16mm hex head full thread zinc |
2 |
|
|
707 |
192-0079
|
Washer |
6 |
|
|
708 |
192-1283
|
Retaining ring (OBSOLETE) |
11 |
|
|
709 |
192-1282
|
Leveling disc (OBSOLETE) |
2 |
|
|
710 |
192-1281
|
Slide bearing (OBSOLETE) |
2 |
|
|
711 |
N/A
|
Not available |
2 |
Bracket |
|
713 |
N/A
|
Not available |
2 |
Bushing |
|
714 |
192-0151
|
Nut M6 hex |
2 |
|
|
715 |
192-0200
|
Washer M6 |
1 |
|
|
716 |
192-0158
|
Screw M6 x 20mm socket head cap |
1 |
|
|
717 |
192-0841
|
Nipple (OBSOLETE) |
2 |
|
|
718 |
192-1300
|
Flange (OBSOLETE) |
1 |
|
|
719 |
192-0844
|
Axle |
1 |
|
|
720 |
192-1405
|
Screw M6 x 35 socket head cap |
1 |
|
|
721 |
192-1296
|
Pulley (OBSOLETE) |
3 |
|
|
723 |
192-0812
|
Tensioner pulley (OBSOLETE) |
1 |
|
|
724 |
192-1293
|
Battery installation guide |
1 |
|
|
725 |
192-0489
|
Retaining ring |
1 |
|
|
726 |
N/A
|
Not available |
2 |
Pressure spring |
|
727 |
N/A
|
Not available |
1 |
Belt tightener |
|
728 |
N/A
|
Not available |
1 |
Bushing |
|
729 |
192-0075
|
Retaining ring |
1 |
|
|
731 |
192-0488
|
Ball bearing |
1 |
|
|
732 |
192-0347
|
Nut M8 hex |
2 |
|
|
733 |
192-1289
|
Screw M8 x 35mm socket head cap |
5 |
|
|
734 |
192-0105
|
Washer M8 |
1 |
|
|
735 |
192-0329
|
Bumper wheel |
1 |
|
|
736 |
192-1290
|
Bushing |
1 |
|
|
737 |
192-0721
|
Washer waved |
1 |
|
|
738 |
192-1292
|
Bushing |
1 |
|
|
739 |
192-1299
|
Gasket (OBSOLETE) |
1 |
|
|
741 |
192-1295
|
Plate (OBSOLETE) |
5 |
|
|
742 |
192-1298
|
Bracket (OBSOLETE) |
1 |
|
|
744 |
192-1303
|
Nipple (OBSOLETE) |
2 |
|
|
745 |
192-0820
|
O-ring |
1 |
|
|
746 |
192-0153
|
Screw M8 x 20mm hex head |
1 |
|
|
747 |
192-1301
|
Washer (OBSOLETE) |
6 |
|
|
748 |
192-1302
|
Brush housing (OBSOLETE) |
2 |
|
|
749 |
192-2351
|
Bumper (sold by the inch) |
37 in |
|
|
751 |
192-1305
|
Bracket (OBSOLETE) |
1 |
|
|
752 |
192-1304
|
Bracket (OBSOLETE) |
1 |
|
|
753 |
192-1309
|
Base plate (OBSOLETE) |
1 |
|
|
754 |
192-1109
|
Screw M6 x 10mm hex head |
1 |
|
|
756 |
192-0828
|
Bushing (OBSOLETE) |
2 |
|
|
757 |
192-0829
|
Pulley (OBSOLETE) |
1 |
|
|
758 |
999-0178
|
Bolt 5/16-18 x 2 hex head grade 5 zinc plated |
1 |
|
|
759 |
192-1306
|
Bushing |
1 |
|
|
760 |
192-1308
|
Lever (OBSOLETE) |
1 |
|
|
761 |
192-1307
|
Drive belt |
1 |
|
|
762 |
192-0501
|
Ball bearing |
1 |
|
|
763 |
192-0500
|
Retaining ring |
2 |
|
|
765 |
192-0503
|
Retaining ring |
2 |
|
|
766 |
192-0814
|
Coupling |
1 |
|
|
767 |
192-0815
|
Shaft seal |
1 |
|
|
768 |
192-0816
|
Supporting plug |
1 |
|
|
