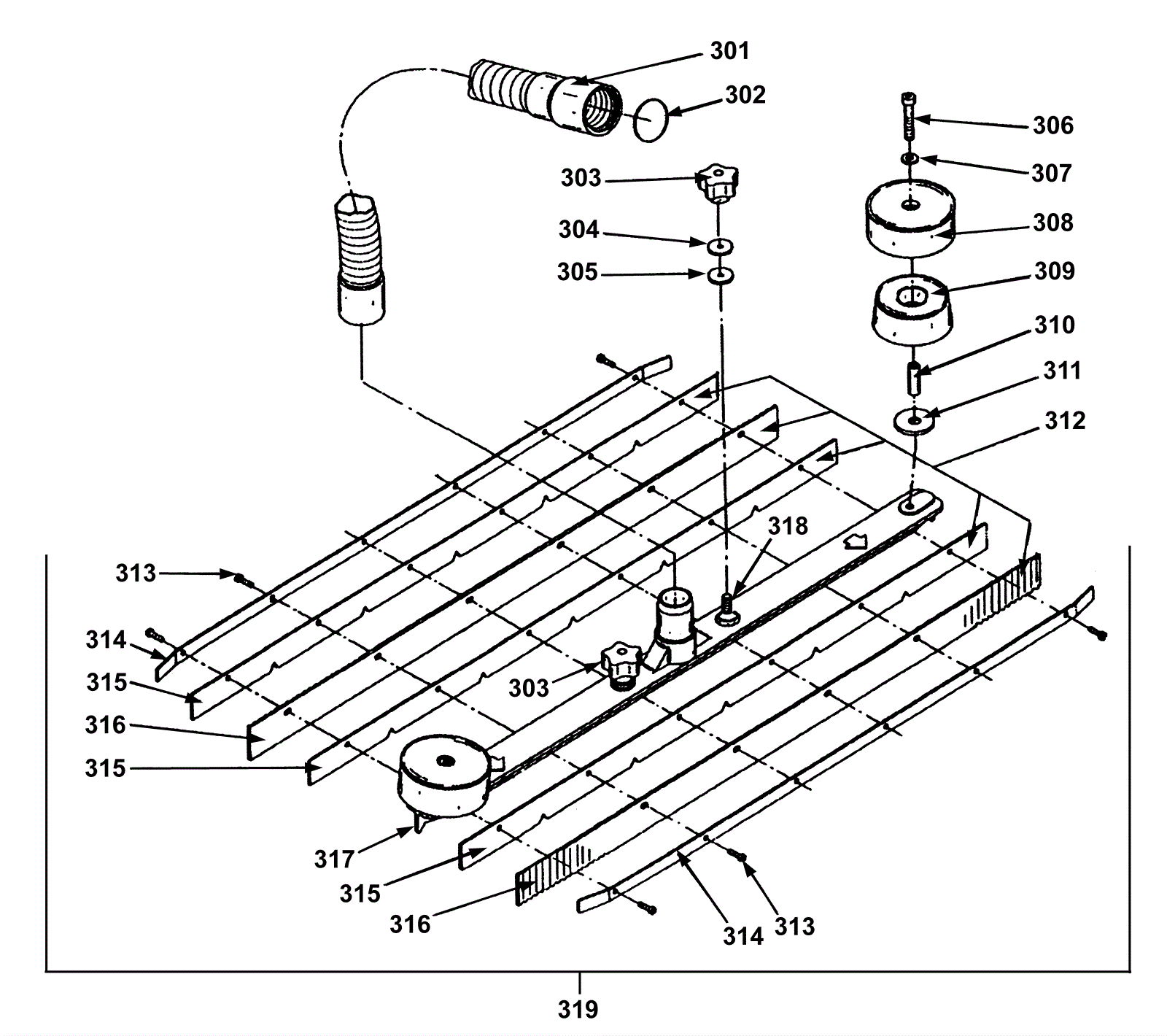

| # | Part | Description |
Req | Notes | Availability |
|---|
301 |
192-1356
|
Hose |
1 |
|
|
302 |
192-0115
|
O-ring |
1 |
|
|
303 |
192-1355
|
Star knob M6 |
2 |
|
|
304 |
192-0965
|
Washer |
2 |
|
|
305 |
192-3980
|
Gasket |
2 |
|
|
306 |
192-0104
|
Screw M8 x 45mm socket head cap |
2 |
|
|
307 |
192-0105
|
Washer M8 |
2 |
|
|
308 |
192-1397
|
Guide wheel |
2 |
|
|
309 |
192-1404
|
Weight (OBSOLETE) |
2 |
|
|
310 |
192-2377
|
Bushing (OBSOLETE) |
2 |
|
|
311 |
192-1078
|
Washer |
2 |
|
|
312 |
192-6361
|
Sggy blades 25 9/10 in (2 red & 3 black) (OBSELETE) |
1 |
|
|
313 |
192-0723
|
Screw M5 x 6mm |
12 |
|
|
314 |
192-3191
|
Covering rail (OBSOLETE) |
2 |
|
|
315 |
192-6892
|
Squeegee blade supporting |
3 |
|
|
316 |
N/A
|
Not available |
2 |
(Squeegee blade) |
|
317 |
192-6630
|
Squeegee weldment (OBSOLETE) |
1 |
|
|
318 |
192-4068
|
Grub screw M6 x 20 |
2 |
|
|
319 |
192-1358
|
Squeegee assembly (OBSOLETE) |
1 |
|
|
