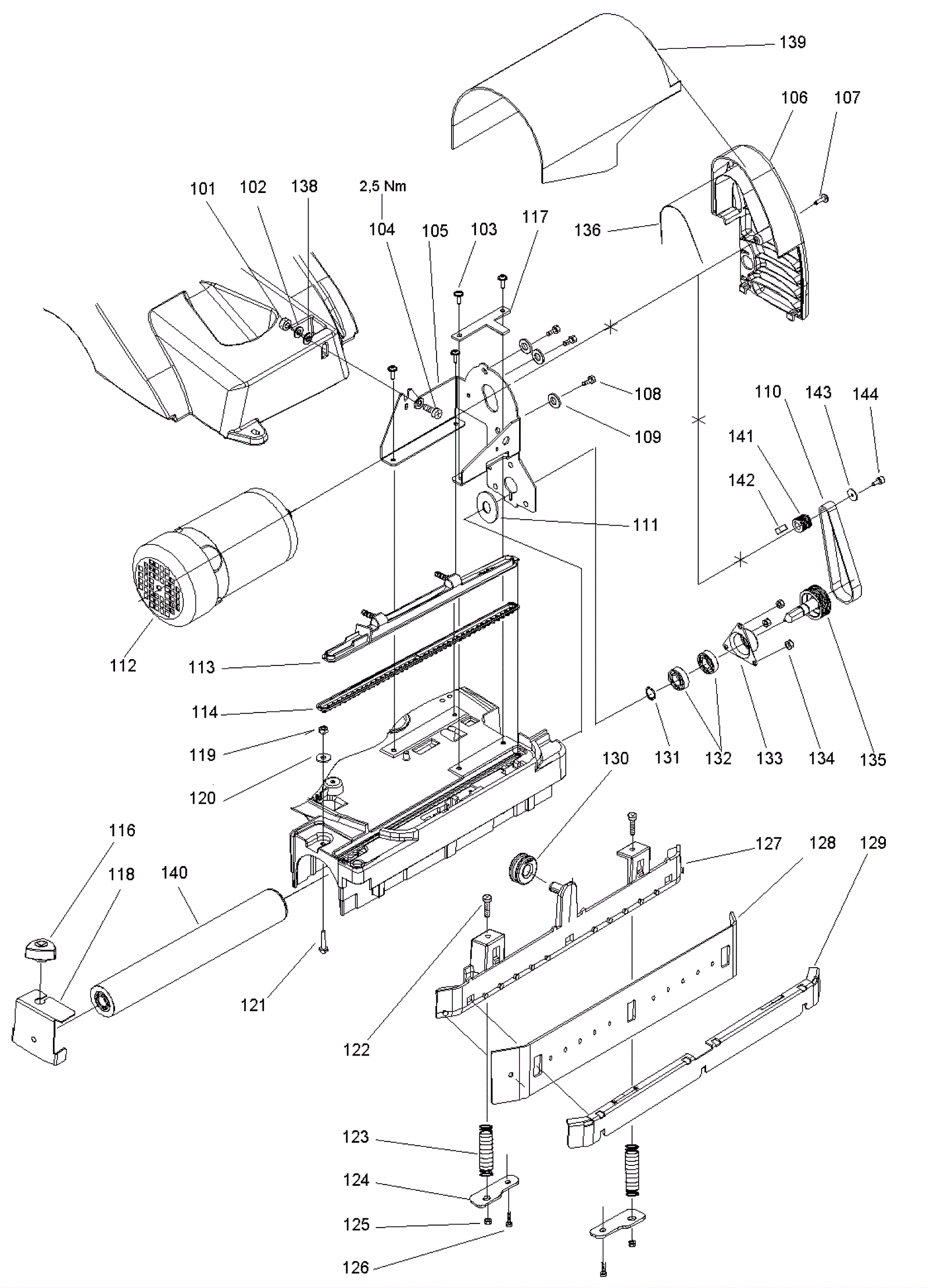

Brush Motor and Scrub Head Assembly

#PartDescription ReqNotesAvailability
101 192-0510 Nut M8 self locking 1
102 192-0079 Washer 2
103 192-0968 Screw KA 60 x 16 4
104 192-0835 Screw M8 x 35mm hex head 1
105 292-0098 Bracket 1
106 292-0099 Cover 1
107 192-0377 Screw M5 x 10mm self-tapping 1
108 192-0506 Screw M6 x 12mm socket head 3
109 192-7421 Washer 3
110 192-8862 Poly v belt 1
111 192-8863 Gasket 1 (350E)
112a 292-0100 Brush motor 1 (350E)
112b 192-8864 24V brush motor 1 (350B)
113 192-8865 Disturbulator cover 1 (350E)
114 192-8866 Disturbulator 1
116 292-5146 Knob with plug 1
117 192-8867 Plate 1
118 192-8868 End cap 1
119 999-1308 Nut M6-1 hex stainless steel 1
120 192-0216 Washer 1
121 192-0899 Screw M6 x 25mm hex head 1
122 192-8869 Screw M5 x 55mm socket head 2
123 192-8870 Pressure spring 2
124a 292-0931 Holder 2 (After 04.2021)
124b 192-8871 Plate 2 (Before 04.2021)
125 192-6343 Nut M5 self locking 2
126 192-1066 Screw 40 x 12 2
127 192-8874 Rear blade housing 1
128 192-8873 Wiping blade 1
129 192-8872 Front blade housing 1
130 192-8875 Wheel 1
131 192-6039 Retaining ring 1
132 192-1873 Ball bearing 2
133 192-3736 Flanged bearing 1
134a 192-6345 Nut M6 self locking 3 (version 2 and version 3)
134b 192-0563 Nut M6 self-locking 3 (version 1)
135 192-8876 Pulley 1
136a 192-8877 Seal (sold by the inch) 7 in
136b 192-8877 Seal (sold by the inch) 39 in (350E)
138 192-1294 Rubber washer 1
139 292-0102 Cover 1 (350E)
140a 192-8781 Standard scrubbing brush with bearing (red wear bristle) 1 (standard)
140b 192-8782 Hard scrubbing brush (black) (yellow wear bristle) 1 (hard)
141 292-0103 Pulley 1 (350E)
142 192-4648 Square keyway 1 (350E)
143 192-0705 Washer 1 (350E)
144 192-0407 Screw M5 x 10mm socket head cap 1 (350E)
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) 1
N/S 192-0325 Washer 1 (350B)
N/S 292-0116 Torsion spring 1 (350B)
N/S 192-1153 Toroidal choke 1 (350B)
N/S 192-0148 Screw M4 x 10mm raised cheese head 1 (350B)
N/S 292-0117 Lever 1 (350B)
