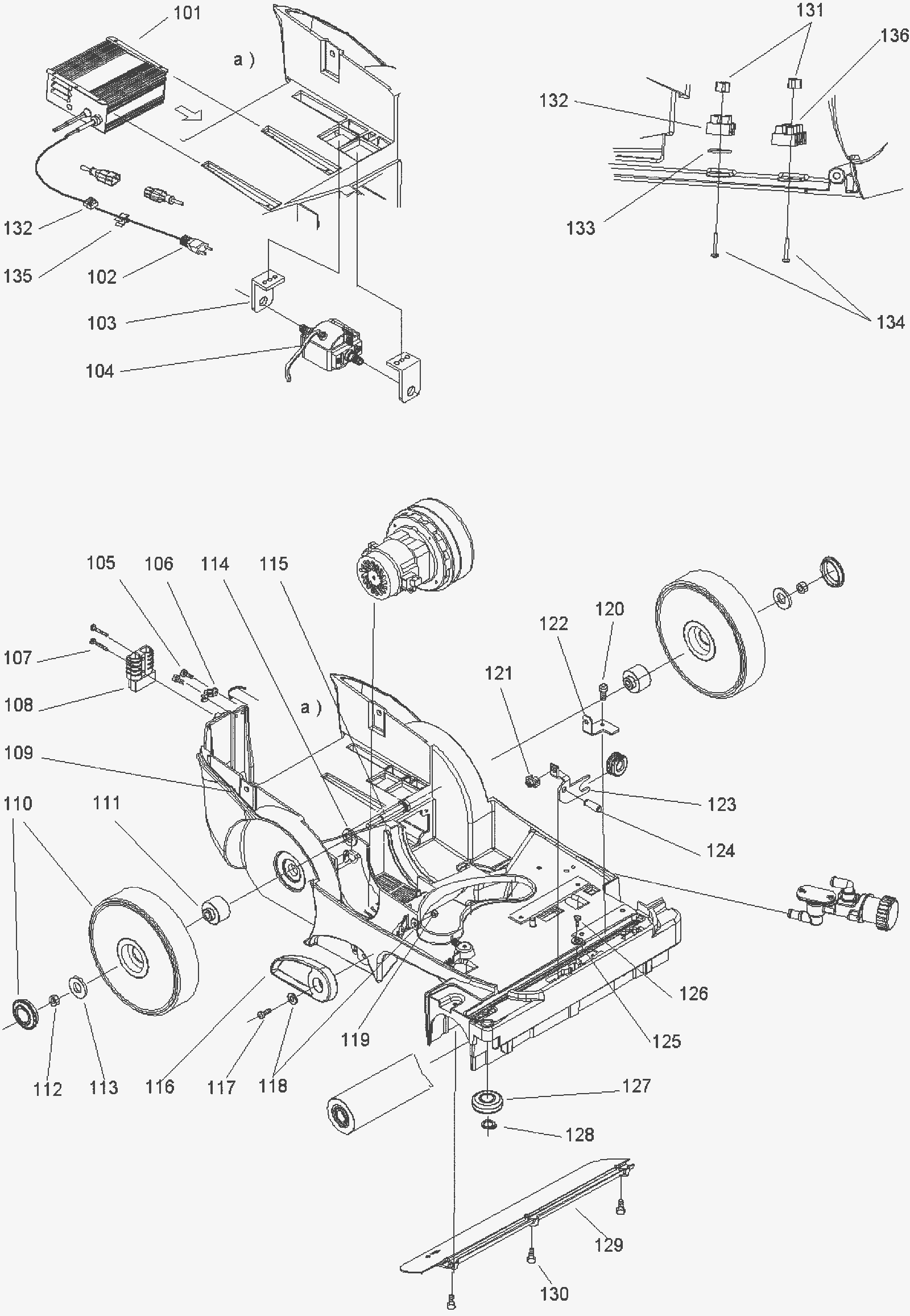

Base Assembly

#PartDescription ReqNotesAvailability
101a 292-8595 24V 13Ah onboard battery charger - Lithium 1 (series 1 and series 2)
101b 192-8833 220V/24V 5amp battery charger (OBSOLETE) 1 (series 1 and series 2)
101c 192-9973 Onboard charger cord 1 (series 1 and series 2)
102 292-0238 Charger cord (OBSOLETE) 1 (series 1 and series 2)
103 192-8835 Bracket 2
104 192-8836 24V pump 1
105 192-1066 Screw 40 x 12 2
106 192-2496 Cable clamp 1
107 192-0730 Screw KA 30 x 18 2 (series 1 and series 2)
108 192-0388 50amp charger plug SB50 with post (gray) 1
109 192-8837 Chassis 1
110 192-8838 Wheel 2
111 192-8839 Bushing 2
112 192-6339 Nut M10 self locking 2
113 192-0496 Washer M10 2
114 192-0619 Washer 2
115 192-0865 Screw M10 x 70 hex head 2
116 192-8840 Lever (kick stand) 1
117 192-0194 Screw M6 x 20mm socket head cap 1
118 192-0216 Washer 2
119 192-6345 Nut M6 self locking 1
120a 192-0767 Screw KA 40 x 10 1 (before 2014)
120b 192-1066 Screw 40 x 12 1 (after 2013)
121 192-1883 Ball socket 1
122 192-8841 Bracket 1
123 192-8842 Lever 1
124 192-9183 Axle 1
125 192-0149 Washer 1
126a 192-0767 Screw KA 40 x 10 1 (before 2014)
126b 192-1066 Screw 40 x 12 1 (after 2013)
127 192-8823 Guide wheel 1
128 192-2776 Snap ring 3
129 192-8843 Protection shield 1
130a 192-0767 Screw KA 40 x 10 3 (before 2014)
130b 192-1066 Screw 40 x 12 3 (after 2013)
131 192-8844 Bushing 1
132 192-2895 2 way connection block 1 (series 1 and series 2)
133 192-0705 Washer 1
134 192-0549 Screw KA 35 x 20 3
135 192-2500 Cable clamp 1
136 192-1224 4 way connection block 1
N/S 192-0102 7 3/4 inch cable tie 7
N/S 192-0973 3 1/4 inch cable tie 5
N/S 192-9238 Spacer set 1
N/S 192-0278 Screw M8 x 25mm socket head 1 (series 3)
N/S 192-0105 Washer M8 2 (series 3)
N/S 192-0510 Nut M8 self locking 1 (series 3)
N/S 192-8863 Gasket 1 (series 3)
N/S 192-8865 Disturbulator cover 1 (series 3)
N/S 192-8866 Disturbulator 1 (series 3)
N/S 999-1694 Screw #8-15 x 1/2 inch phillips drive pan head zinc (holds onboard charger to to the back panel)
