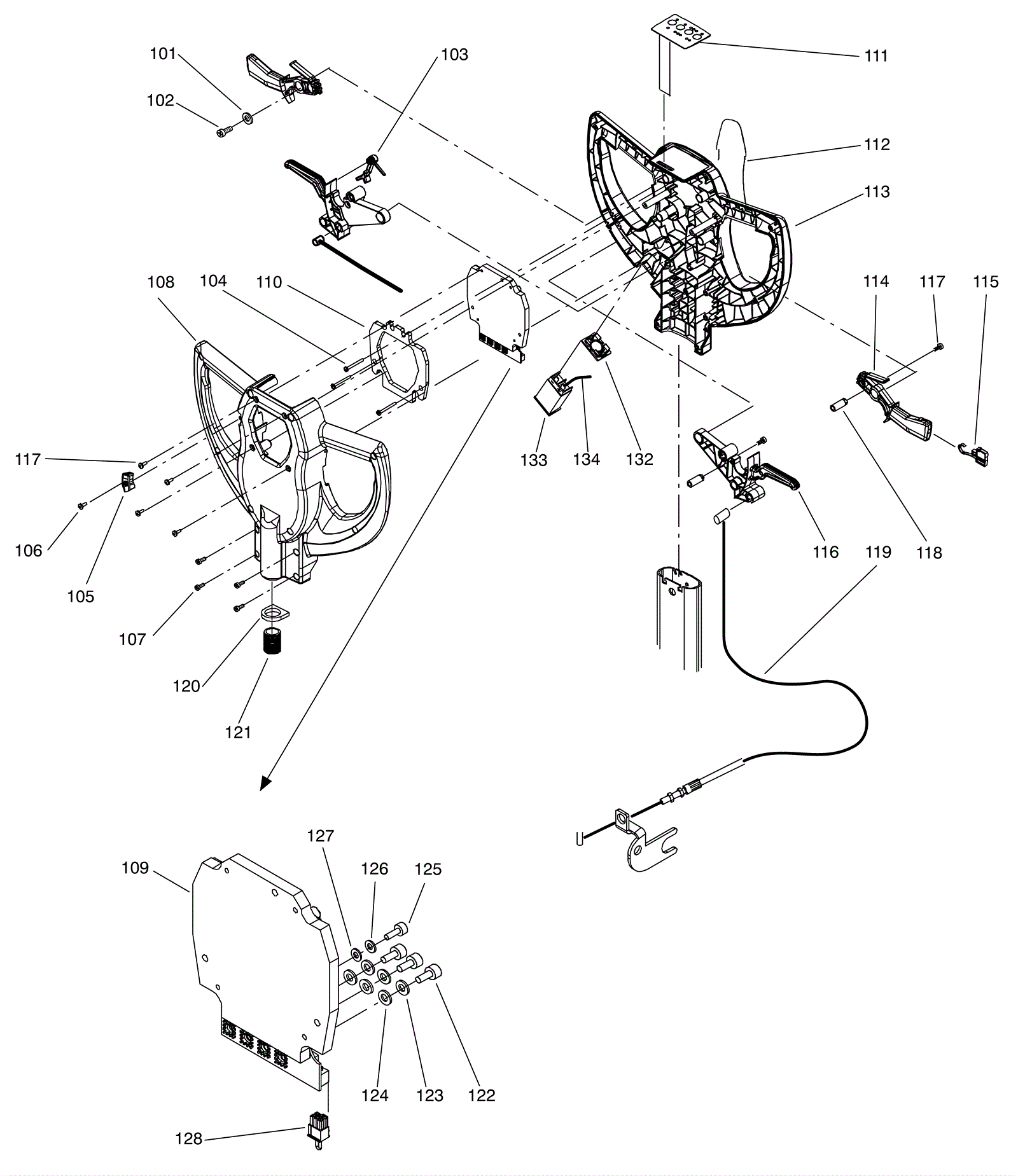

SWINGO 350B Handle Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-0705 Washer $2.44 2 usually ships 24-40 days
102a 192-6291 Screw 50 x 30 for plastic handle lever $3.54 2 (series 1) ships same day
102b 192-9948 Screw KA 50 x 30 $2.44 2 (series 2 and series 3) ships same day
103 192-8791 Locking lever $2.44 1 ships same day
104 192-6281 Screw KA 40 x 35 $5.98 3 usually ships 24-40 days
105 192-8792 Cover $2.44 1 usually ships 24-40 days
106 192-6282 Screw KA 30 x 10 $3.54 1 ships same day
107 192-0539 Screw 50 x 20 $2.44 13 ships same day
108a 292-0066 Front and rear handle assembly (OBSOLETE) $198.36 1 (series 1) usually ships 24-40 days
108b 192-8793 Rear handle $40.41 1 (series 2 and series 3) usually ships 24-40 days
109 192-8794 Control board (eco) $549.25 1 ships same day
110 192-8796 Gasket $4.10 1 usually ships 24-40 days
111 192-8795 Control panel with ribbon cable $46.96 1 ships same day
112 192-8797 Decorative decal $5.81 1 ships same day
113 192-8798 Front handle $40.41 1 ships same day
114 192-8799 Trigger lever $6.06 2 usually ships 24-40 days
115 192-8800 Push button $2.44 2 ships same day
116a 192-8801 Lever (OBSOLETE) $9.11 2 (series 1) usually ships 24-40 days
116b 192-9951 Lever $6.42 2 (series 2 and series 3) ships same day
117 192-0148 Screw M4 x 10mm raised cheese head $2.44 6 usually ships 24-40 days
118 192-8802 Bolt with magnet $15.51 2 usually ships 24-40 days
119 192-8803 Lever cable $53.63 1 ships same day
120 192-8804 Gasket $3.78 1 usually ships 24-40 days
121 192-8805 Hose $16.49 1 (31 inches) usually ships 24-40 days
122 192-0407 Screw M5 x 10mm socket head cap $0.89 3 ships same day
123 192-1537 Washer M5 serrated lock $2.44 3 ships same day
124 192-0880 Washer M5 $0.89 3 ships same day
125 192-0425 Screw M4 x 10mm socket head cap $2.44 1 usually ships 24-40 days
126 999-0315 Washer #8 external star lock zinc plated $0.99 1 ships same day
127 192-1195 Washer M4 $2.44 1 ships same day
128 192-8806 Jumper $15.75 1 (series 2) (non BMS) ships same day
132 192-3548 False cover $4.10 1 ships same day
133 192-0033 24V hour meter $81.88 1 (optional) (series 2) usually ships 24-40 days
134 192-9486 Wiring harness $7.28 1 (optional) (series 2) usually ships 24-40 days
N/S 192-1872 Grease $11.99 1 ships same day
N/S 292-8528 .5ml capsule loctite medium strength thread lock (red) $55.00 1 usually ships 12-18 days
