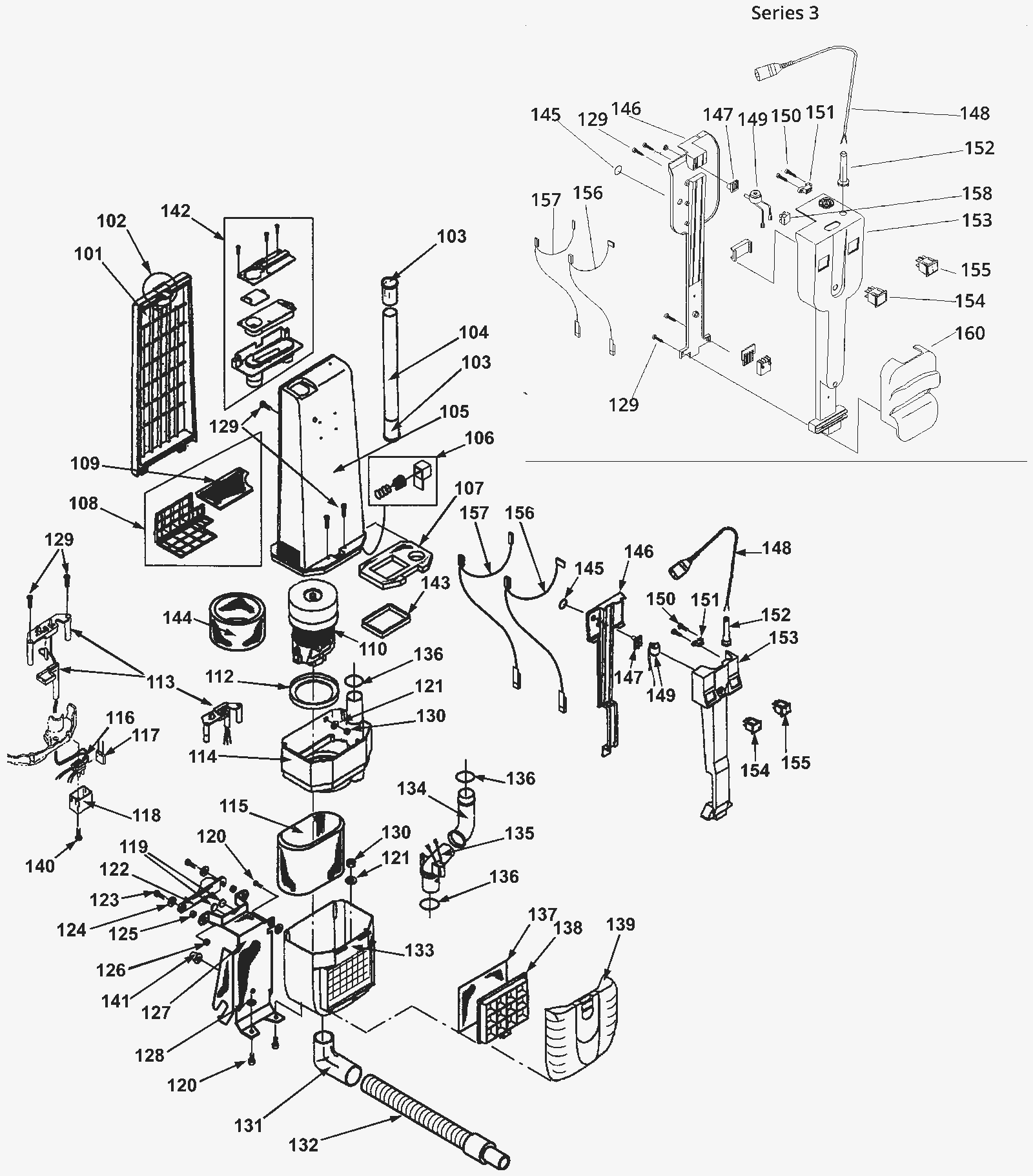

Vacuum Unit Assembly

#PartDescription ReqNotesAvailability
101 192-3108 Cover 1
102 192-2717 Catch with spring 1
103 192-6162 Rubber bushing 2
104 192-5509 Pipe 1
105a 192-4500 Housing (OBSOLETE) 1 (series 1 and 2)
105b 292-8674 Housing 1 (series 3)
106 192-5695 Pressure valve 1
107 192-3623 Filter 1
108 192-3682 Filter cartridge 1 (includes 109)
109a 192-3621 Filter 1
109b 192-9458 Motor protection filter (pkg of 5) (OBSOLETE) 1
110a 192-7252 120V vacuum motor 1
110b 292-5458 Vacuum motor 1
110c 272-6297 Carbon brush 2
112 181-1215 Gasket (OBSOLETE) 1
113 192-4258 Cord clamp 1
114a 192-4501 Housing 1 (series 1 and 2)
114b 292-8675 Housing 1 (series 1)
115 192-5226 Foam motor filter 1
116 192-2895 2 way connection block 1
117 192-5279 Noise support condenser 1
118 192-3110 Cover (OBSOLETE) 1
119 192-2327 Buffer 2
120 192-6489 Screw M6 x 16 socket head cap 3
121 192-0216 Washer 3
122 192-4780 Lever 1
123 192-0035 Screw M5 x 16mm socket head cap 2
124 192-0971 Washer 2
125 192-2420 Bushing 2
126 192-6343 Nut M5 self locking 2
127 192-2139 Bracket 1
128 192-6164 Rubber disc 3
129 192-5443 Screw 3.5 x 25 pan head tapping 5
130 192-6345 Nut M6 self locking 2
131 192-5515 Pipe bend 1
132 192-4300 Bottom suction hose 1
133a 192-5115 Motor housing 1 (series 1 and 2)
133b 292-8676 Motor housing 1 (series 3)
134 192-2887 Connecting pipe (OBSOLETE) 1
135 N/A Not available 3 (connecting piece)
136 192-9409 O-ring 3
137a 192-1433 Filter (pkg of 5) (OBSOLETE) 1
137b 192-9456 Micro-filter (pkg of 5) 1
138 192-4052 Grid 1
139 192-3113 Cover 1
140 192-5460 Screw C 3 1/2 x 32 pan head tapping 1
141 192-6159 Rubber buffer 1
142 192-4592 Intake 1
143 192-3833 Frame 1
144 192-5272 Noise absorbing strip 1
145 192-5393 O-ring 1
146a 192-2197 Bracket 1 (series 1 and 2)
146b 192-2198 Bracket 1 (series 3)
147 192-1630 Adapter 1
148 192-4928 120V main cord 1
149 192-7296 Vacuum switch 1
150 192-5458 Screw pan head tapping 2
151 192-2793 Clamp 1
152 192-2541 Strain relief 1
153a 192-3112 Cover 1 (series 1 and 2)
153b 192-9534 Cover 1 (series 3)
154 192-7053 Control light 1
155 192-6091 Rocker switch 1
156 192-2905 Connector 1
157 192-2906 Connector 1
158 192-0954 3 way connection block 1 (series 3)
160 192-9535 Central handle hook 1 (series 3)
N/S 192-9410 Vacuum bag (pkg of 10) 1 (OEM)
N/S 991-9096 Vacuum bag (pkg of 10) 1 (NON-OEM)
N/S 292-0093 Cloth vacuum bag 1
N/S 192-9456 Micro-filter (pkg of 5) 1
N/S 192-9457 HEPA filter 1
N/S 192-9455 Vacuum unit 1 (includes 101-157)
