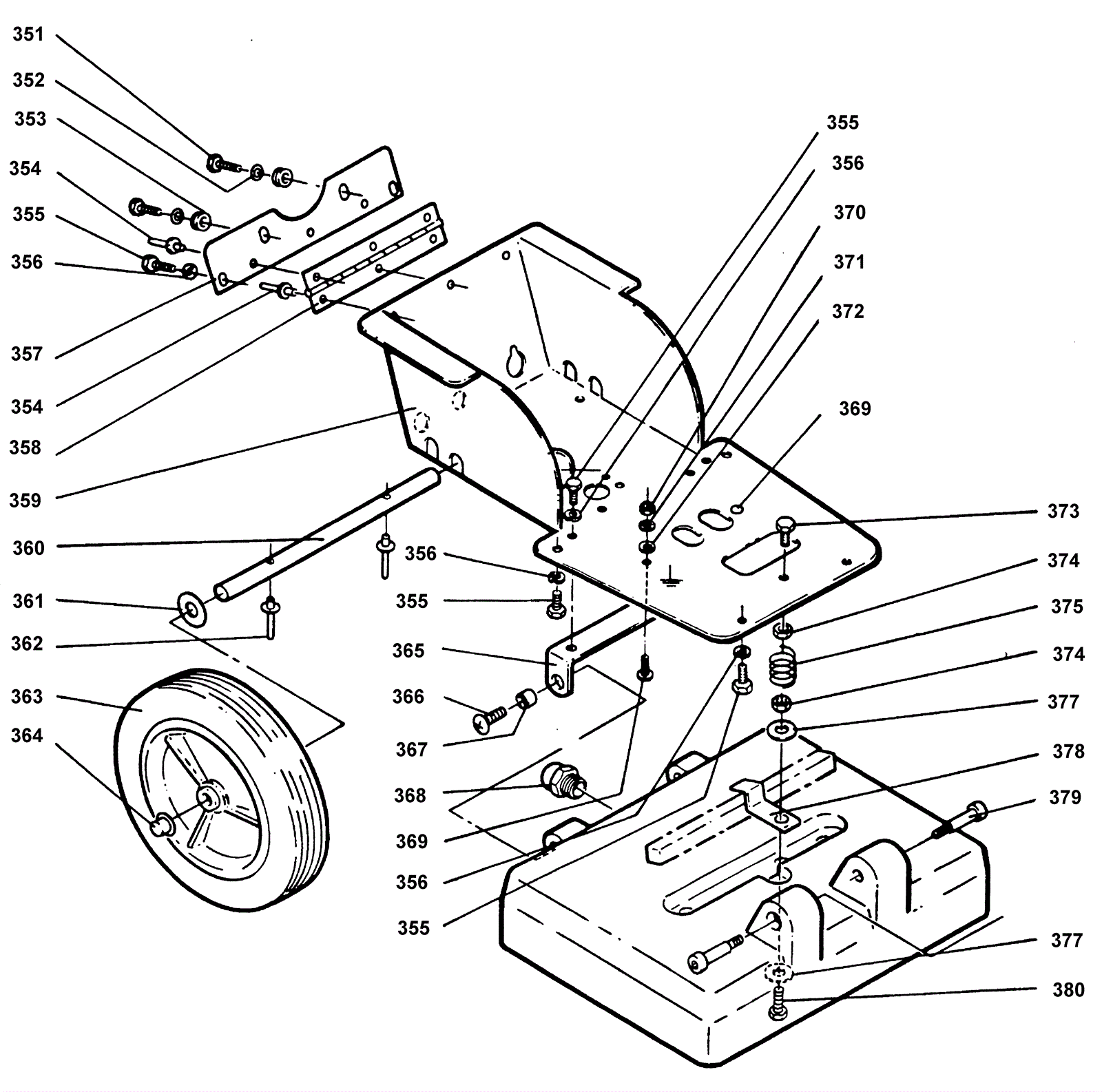

AQUAMAT 35 Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
351 192-8268 Screw 1/4-20 x 3/4 hexagon (OBSOLETE) Call for price 6 usually ships 1-5 days
352 192-8271 Washer 7/16 Call for price 4 usually ships 1-5 days
353 192-8272 Rubber ring (OBSOLETE) Call for price 2 usually ships 30-75 days
354 192-8273 Pop rivet 3/16 (OBSOLETE) Call for price 6 usually ships 30-75 days
355 192-4213 Hexagon screw 1/4-20 x 1/2 $3.91 8 usually ships 1-5 days
356 192-0179 Washer M6 serrated lock $2.44 8 usually ships 30-75 days
357 192-8274 Plate Call for price 1 usually ships 1-5 days
358 192-8275 Hinge Call for price 1 usually ships 1-5 days
359 N/A Not available Call for price 1 Base plate usually ships 3-26 days
360 192-8276 Axle Call for price 1 usually ships 1-5 days
361 192-1050 Washer $3.62 2 usually ships 30-75 days
362 192-8277 Pop rivet 3/16 Call for price 2 usually ships 1-5 days
363 192-7482 Wheel 10 inch (OBSOLETE) $339.93 2 usually ships 1-5 days
364 192-2610 Cap (OBSOLETE) $7.41 2 usually ships 1-5 days
365 192-2202 Bracket (OBSOLETE) $24.45 1 usually ships 1-5 days
366 192-6274 Screw 3/8-16 x 3/4 (OBSOLETE) $4.99 2 usually ships 1-5 days
367 192-3326 Spacer bushing (OBSOLETE) $3.33 2 usually ships 1-5 days
368 192-2489 Cable bushing (OBSOLETE) $45.66 1 usually ships 1-5 days
369a 192-0148 Screw M4 x 10mm raised cheese head $2.44 2 usually ships 30-75 days
369b 192-1195 Washer M4 $2.44 2 ships same day
369c 192-0715 P clamp $2.44 1 usually ships 1-5 days
370 192-0039 Nut M4 hex $4.10 6 usually ships 30-75 days
371 999-0315 Washer #8 external star lock zinc plated $0.99 1 ships same day
373 192-4238 Screw 3/8-16 x 1/2 Hexagon (OBSOLETE) $2.27 1 usually ships 1-5 days
374 192-6337 Nut 3/8-16 self locking $3.98 2 usually ships 30-75 days
375 192-6602 Spring (OBSOLETE) $6.89 1 usually ships 1-5 days
377 192-7408 Washer $2.44 2 usually ships 30-75 days
378 192-2796 Clamp (OBSOLETE) $31.65 1 usually ships 1-5 days
379 192-6261 Screw (OBSOLETE) $6.60 2 usually ships 1-5 days
380 192-4214 Hexagon screw 3/8-16 x 1/2 (OBSOLETE) $3.55 1 usually ships 1-5 days
