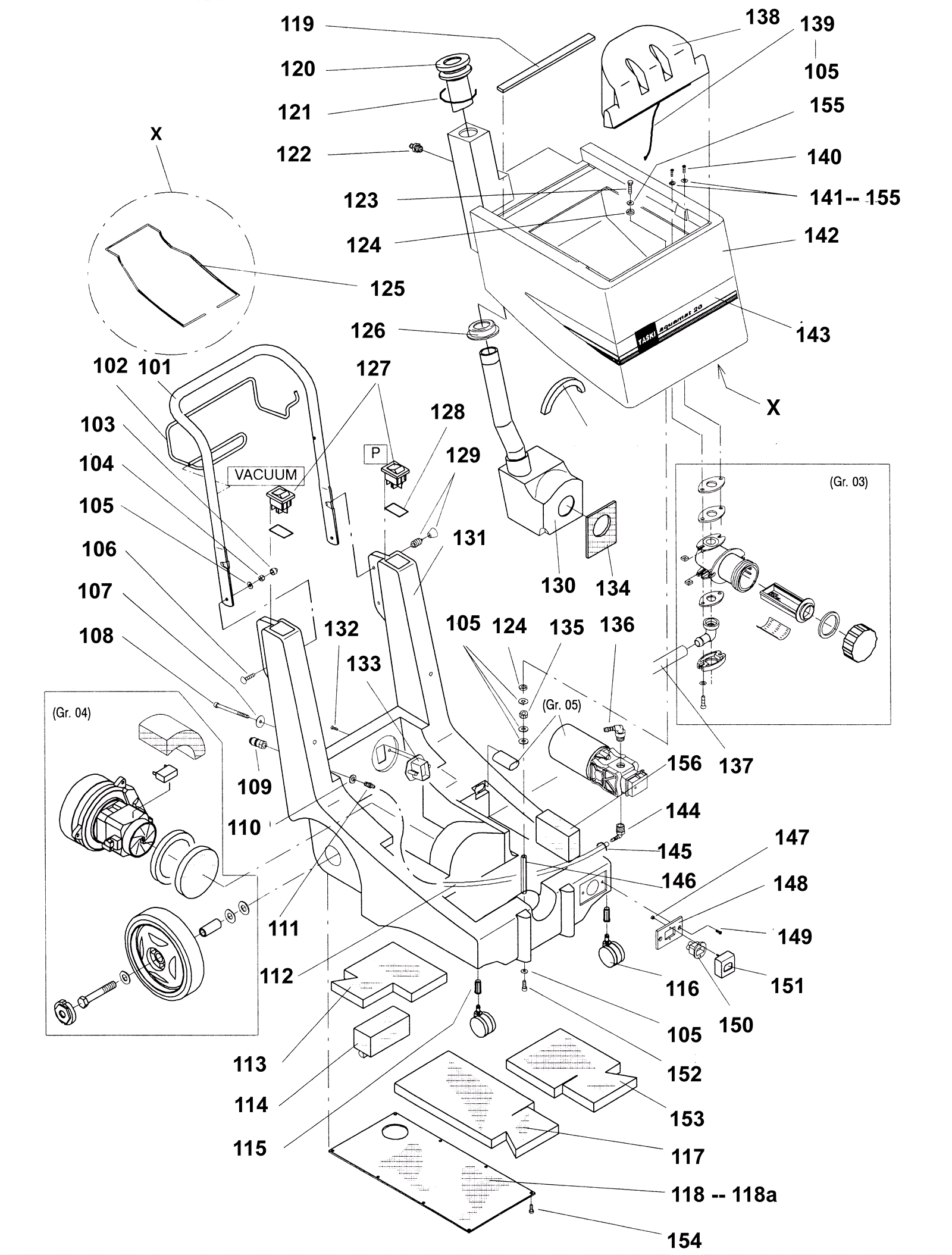

AQUAMAT 20 Base Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-4147 Handle (OBSOLETE) $73.07 1 usually ships 1-5 days
102 192-4291 Hoop $39.07 1 usually ships 1-5 days
103 192-5731 Protecting cap 6 $4.76 2 usually ships 1-5 days
104 192-0563 Nut M6 self-locking $2.44 2 ships same day
105 192-0964 Washer $2.44 7 ships same day
106 192-2670 Bolt with nut hex carriage m6 X 30 $4.15 2 usually ships 30-75 days
107 192-0216 Washer $1.22 2 ships same day
108 192-6486 Screw M6 x 100 socket head cap $2.44 2 usually ships 1-5 days
109 192-3605 Female quick connector 9 $34.39 1 usually ships 30-75 days
110 192-0496 Washer M10 $2.44 1 ships same day
111 192-5003 Male connector 6-R3/8 inch $12.03 1 usually ships 1-5 days
112 192-4346 Hose (sold by the inch) $6.50 40 in usually ships 30-75 days
113 192-5236 Noise absorbing $8.01 1 usually ships 1-5 days
114 192-5239 Noise absorbing $8.18 1 usually ships 1-5 days
115 192-4821 Locking bushing $25.76 2 usually ships 1-5 days
116 192-2707 Caster $35.89 2 usually ships 1-5 days
117 192-5238 Noise absorbing $10.25 1 usually ships 1-5 days
118a 192-2121 Bottom grid (OBSOLETE) $26.96 1 usually ships 1-5 days
118b 192-5240 Noise absorbing $21.32 1 usually ships 1-5 days
119 192-6307 Seal strip $10.25 1 usually ships 1-5 days
120 192-3773 Flex hose $68.50 1 usually ships 1-5 days
121 192-0102 7 3/4 inch cable tie $2.44 2 usually ships 30-75 days
122 192-5898 Quick connector $10.25 1 usually ships 30-75 days
123 192-0899 Screw M6 x 25mm hex head $3.62 1 ships same day
124 192-6312 Sealing $5.57 2 usually ships 30-75 days
125 192-6309 Sealing strip (sold by the inch) $7.11 80 in usually ships 30-75 days
126 192-5421 Packing ring $27.72 1 usually ships 1-5 days
127 192-6098 Rocker switch $4.28 2 usually ships 30-75 days
128 192-5367 O-ring 19 x 2 $2.44 2 usually ships 30-75 days
129 192-0863 Bolt $19.86 2 usually ships 1-5 days
130 192-1656 Air guiding box $56.49 1 usually ships 1-5 days
131 192-1914 Base set $527.43 1 usually ships 1-5 days
132 192-6285 Screw KA 40 x 16 $2.44 2 usually ships 1-5 days
133 192-5610 Plug socket $19.61 1 usually ships 30-75 days
134 192-3969 Gasket $13.31 1 usually ships 1-5 days
135 999-1308 Nut M6-1 hex stainless steel $0.99 1 ships same day
136 192-1688 Angled hose nipple 8-3/8 inch $10.45 1 usually ships 1-5 days
137 192-0892 Silicone hose (sold by the inch) $18.49 40 in usually ships 30-75 days
138 192-3142 Cover $52.09 1 usually ships 1-5 days
139 192-0714 Cord (sold by the inch) $2.44 40 in ships same day
140 192-1105 Screw M4 x 20mm socket head $2.44 2 usually ships 1-5 days
141 192-0325 Washer $2.44 2 usually ships 30-75 days
142 192-3839 Fresh water tank set $382.73 1 ships same day
144 192-1683 Angled connector 6-R 3/8 inch $12.57 1 usually ships 1-5 days
145 192-4366 Hose clamp $2.44 2 ships same day
146 192-3320 Spacer bolt $19.36 1 usually ships 1-5 days
147 192-0048 Nut M3 hex $2.44 2 usually ships 30-75 days
148 192-5575 Plate (OBSOLETE) $9.31 1 usually ships 1-5 days
149 192-2988 Counters tapp screw B 4-13/16 x 16 $2.44 2 usually ships 1-5 days
150 192-5958 Receptacle (OBSOLETE) $36.27 1 usually ships 1-5 days
151 192-3160 Cover for receptacle (OBSOLETE) $33.76 1 usually ships 1-5 days
152 192-0066 Screw M6 x 25mm socket head cap $3.49 1 ships same day
153 192-5237 Noise absorbing $10.25 1 usually ships 1-5 days
154 192-5448 Screw B 4 1/2 x 13 pan head self tapping $2.44 8 usually ships 1-5 days
155 192-0219 Silicone sealer $95.56 usually ships 30-75 days
156 192-6570 Splash protection $9.97 1 usually ships 1-5 days
