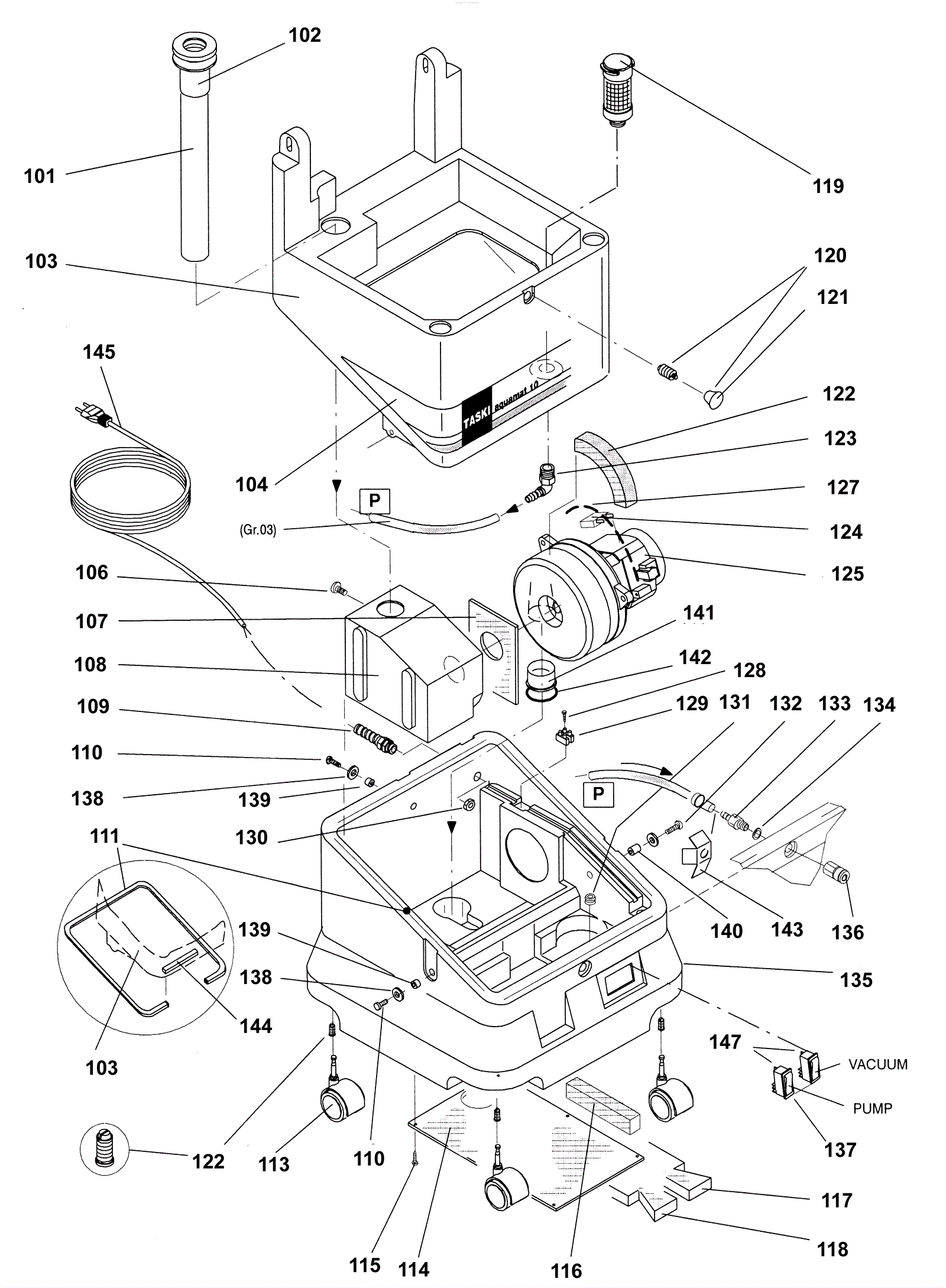

AQUAMAT 10 Lower Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
101 192-6836 Suction tube $66.54 1 usually ships 1-5 days
102 192-3772 Flex hose $34.83 1 usually ships 1-5 days
103 192-3838 Fresh water tank set $331.74 1 usually ships 1-5 days
104 192-3253 Decorative strip aquamat 10.1 (OBSOLETE) $18.77 1 usually ships 1-5 days
106 192-4222 Screw M6 x 20 hex head $3.33 1 ships same day
107 192-3969 Gasket $13.97 1 usually ships 1-5 days
108 192-1655 Air guiding box $47.43 1 usually ships 1-5 days
109 192-0890 Cable grommet $5.47 1 usually ships 17-21 days
110 192-1105 Screw M4 x 20mm socket head $2.56 2 usually ships 1-5 days
111 192-6310 Seal strip (sold by the inch) $0.99 1 ships same day
112 192-4822 Locking bushing $18.54 4 usually ships 1-5 days
113 192-2706 Caster wheel $4.74 4 ships same day
114a 192-3141 Cover $18.21 1 usually ships 1-5 days
114b 192-5231 Noise absorbing (OBSOLETE) $12.64 1 usually ships 1-5 days
115 192-5444 Screw 3 1/2 x 9 1/2 pan head self tapping $5.76 6 usually ships 1-5 days
116 192-5235 Noise absorbing $13.41 1 usually ships 1-5 days
117 192-5234 Noise absorbing $15.00 1 usually ships 1-5 days
118 192-5233 Noise absorbing $15.51 1 usually ships 1-5 days
119 192-3628 Filter $41.42 1 usually ships 1-5 days
120 192-0863 Bolt $20.85 1 usually ships 1-5 days
121 192-0862 Knob $9.05 1 usually ships 1-5 days
122 192-6335 Self adhesive strip $22.64 1 usually ships 1-5 days
123 192-1683 Angled connector 6-R 3/8 inch $13.20 1 usually ships 1-5 days
124 192-0783 Noise support condenser $23.54 1 usually ships 17-21 days
127 192-0102 7 3/4 inch cable tie $2.56 2 usually ships 17-21 days
128 192-5458 Screw pan head tapping $5.20 1 usually ships 1-5 days
129 192-2895 2 way connection block $2.56 1 usually ships 17-21 days
130 192-5333 Nut $5.13 1 usually ships 17-21 days
131 192-4061 Grommet 9,5 $2.56 1 usually ships 1-5 days
132 192-5925 Screw M4 x 40 raised cheese head $5.01 1 usually ships 17-21 days
133 192-5003 Male connector 6-R3/8 inch $12.64 1 usually ships 1-5 days
134 192-0496 Washer M10 $2.56 1 usually ships 17-21 days
135 192-6357 Set base AQ 10.1 $330.02 1 usually ships 1-5 days
136 192-3605 Female quick connector 9 $36.10 1 usually ships 17-21 days
137 192-6098 Rocker switch $4.49 2 usually ships 17-21 days
138 192-7417 Washer 4-5/16 / 9 $3.72 3 usually ships 1-5 days
139 192-2413 Bushing $6.53 2 usually ships 1-5 days
140 192-2414 Bushing $5.34 1 usually ships 17-21 days
141 192-2415 Bushing $60.01 1 usually ships 1-5 days
142 192-5378 O-ring 44 11/16 x 2 5/8 $4.10 1 usually ships 17-21 days
143 192-5785 Protection shield $20.98 1 usually ships 1-5 days
144 192-6309 Sealing strip (sold by the inch) $0.90 1 usually ships 17-21 days
145a 192-4945 Main cord 2P SEV 10 m $30.21 1 usually ships 17-21 days
145b 192-4944 Main cord 2P schuko $30.21 1 usually ships 1-5 days
147 192-0219 Silicone sealer $95.56 usually ships 17-21 days
N/S 192-1136 Strong locking adhesive $265.08 usually ships 1-5 days
