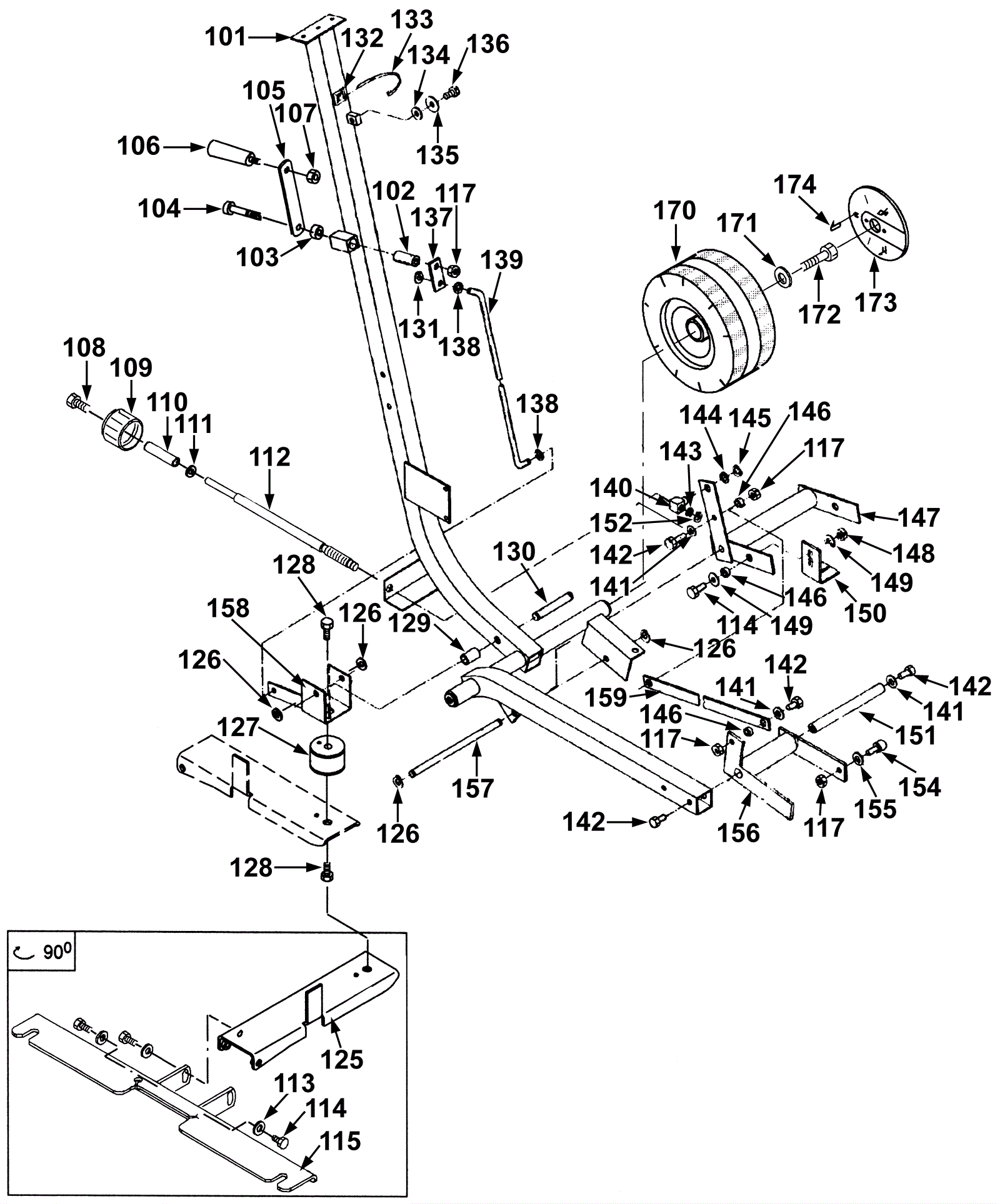

COMBIMAT 1000E Chassis Assembly - Series 03

#PartDescriptionPriceReqNotesAvailability
101 192-2754 Chassis (OBSOLETE) $943.07 1 usually ships 1-5 days
102 192-2371 Bushing (OBSOLETE) $4.77 1 usually ships 1-5 days
103 192-1306 Bushing $7.38 1 usually ships 1-5 days
104 192-1039 Screw M8 x 60mm hex head $0.89 1 ships same day
105 192-4749 Lever (OBSOLETE) $6.60 1 usually ships 1-5 days
106 192-4132 Handle (OBSOLETE) $4.30 1 usually ships 1-5 days
107 192-0151 Nut M6 hex $2.56 1 ships same day
108 192-1285 Screw M6 x 25mm hex head $2.56 1 ships same day
109 192-1338 Knob $14.92 1 usually ships 19-25 days
110 192-2370 Bushing (OBSOLETE) $10.59 1 usually ships 1-5 days
111a 192-0496 Washer M10 $2.56 2 After 04.2001 usually ships 19-25 days
111b 192-8712 Washer 10/20 Call for price 2 Before 04.2001 usually ships 1-5 days
112 192-6561 Spindle (OBSOLETE) $24.39 1 usually ships 1-5 days
113 192-0105 Washer M8 $2.56 3 ships same day
114a 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.99 4 After 04.2001 ships same day
114b 192-0646 Screw M8 x 90 hex head $2.56 1 Before 04.2001 usually ships 19-25 days
115a 192-0697 Squeegee mounting bracket (OBSOLETE) $83.13 1 After 04.2001 usually ships 1-5 days
115b 192-2146 Bracket (OBSOLETE) $6.82 1 Before 04.2001 usually ships 1-5 days
117 192-0347 Nut M8 hex $0.89 4 ships same day
125 192-6845 Support (OBSOLETE) $68.89 1 (If ordering for machines before 04.2001 you will also need to purchase 113, 114, 115, 127 and 128) usually ships 1-5 days
126 192-1348 Retaining ring $6.49 4 usually ships 19-25 days
127 192-2323 Buffer $64.64 1 usually ships 1-5 days
128 192-1115 Screw M12 x 14 hex head $2.56 2 usually ships 19-25 days
129 192-2373 Bushing $4.69 1 usually ships 19-25 days
130 192-2076 Bolt (OBSOLETE) $6.82 1 usually ships 1-5 days
131 192-6050 Retaining ring $3.41 2 usually ships 19-25 days
132 192-0008 Self-adhesive plate (OBSOLETE) $0.61 5 usually ships 19-25 days
133 192-0102 7 3/4 inch cable tie $2.56 9 usually ships 19-25 days
134 192-1294 Rubber washer $2.56 1 ships same day
135 192-0248 Washer M8 $2.70 1 ships same day
136 192-4228 Screw M8 x 16mm hex head $2.44 1 usually ships 19-25 days
137 192-4750 Lever (OBSOLETE) $6.67 1 usually ships 1-5 days
138 192-1362 Elastic ring (OBSOLETE) $2.20 2 usually ships 1-5 days
139 192-4797 Traction lever (OBSOLETE) $20.75 1 usually ships 1-5 days
140 192-4089 Guide nut (OBSOLETE) $25.74 1 usually ships 1-5 days
141 192-0079 Washer $0.89 3 ships same day
142 192-0153 Screw M8 x 20mm hex head $0.89 4 ships same day
143 192-7426 Washer 8/12 $2.20 1 usually ships 19-25 days
144 192-7409 Washer 12/16 (OBSOLETE) $2.20 1 usually ships 1-5 days
145 192-6037 Retaining ring $0.89 1 ships same day
146 192-2369 Bushing $3.47 3 usually ships 19-25 days
147 192-6986 Swiveling lever (OBSOLETE) $143.10 1 usually ships 1-5 days
148 192-0240 Nut M8 hex $2.56 1 usually ships 19-25 days
149 192-0105 Washer M8 $2.56 2 ships same day
150 192-2147 Bracket (OBSOLETE) $4.94 1 usually ships 1-5 days
151 192-1769 Axle (OBSOLETE) $12.64 1 usually ships 1-5 days
152 192-6049 Retaining ring (OBSOLETE) $2.20 1 usually ships 1-5 days
154 192-1880 Pivot ball $6.28 1 usually ships 1-5 days
155 192-7425 Washer $4.70 1 usually ships 19-25 days
156 192-6985 Swiveling lever (OBSOLETE) $196.83 1 usually ships 1-5 days
157 192-1768 Axle (OBSOLETE) $8.33 1 usually ships 1-5 days
158 192-6090 Rocker arm (OBSOLETE) $33.22 1 usually ships 1-5 days
159 192-6116 Rod (OBSOLETE) $41.65 1 usually ships 1-5 days
170a 192-7465 Wheel $251.04 2 usually ships 1-5 days
170b 192-7554 Pneumatic wheel $134.26 usually ships 1-5 days
170c 192-4560 Inner tube $29.82 usually ships 1-5 days
171 192-7408 Washer $2.44 4 usually ships 19-25 days
172 192-4216 Screw M10 x 55 hex $2.56 2 usually ships 1-5 days
173 192-0279 Wheel cover w/springs (OBSOLETE) $12.09 2 usually ships 19-25 days
174 192-0280 Spring (OBSOLETE) $2.20 2 x 3 usually ships 1-5 days
