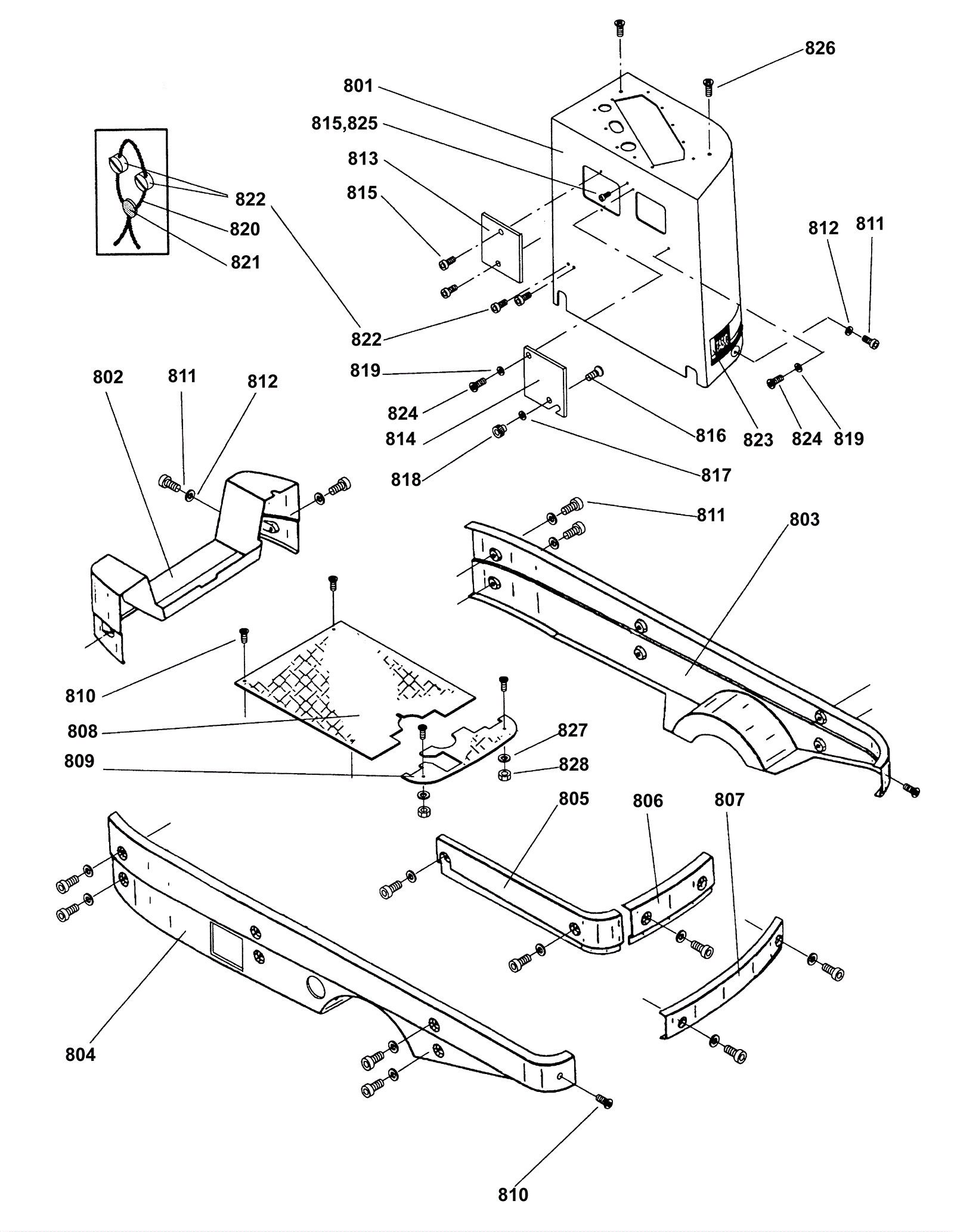

COMBIMAT 3000 Machine Fairing Assembly

#PartDescriptionPriceReqNotesAvailability
801 192-4272 Hood (OBSOLETE) $3,582.41 1 usually ships 1-5 days
802 192-5948 Rear cover (OBSOLETE) $316.24 1 usually ships 1-5 days
803 192-6423 Left hand side plate (OBSOLETE) $446.23 1 usually ships 1-5 days
804 192-6424 Right hand side plate (OBSOLETE) $341.44 1 usually ships 1-5 days
805 192-3188 Covering profile (OBSOLETE) $217.58 1 usually ships 1-5 days
806 192-3187 Covering profile (OBSOLETE) $195.70 1 usually ships 1-5 days
807 192-3186 Covering profile (OBSOLETE) $142.19 1 usually ships 1-5 days
808 192-2124 Bottom plate (OBSOLETE) $307.97 1 usually ships 1-5 days
809 192-2125 Bottom plate (OBSOLETE) $191.30 1 usually ships 1-5 days
810 192-2996 Screw M6 x 16 countersunk head (OBSOLETE) $2.20 8 usually ships 1-5 days
811 192-0036 Screw M8 x 20mm socket head $2.44 23 ships same day
812 192-0079 Washer $0.89 24 ships same day
813 192-3093 Cover (OBSOLETE) $10.53 1 usually ships 1-5 days
814 192-3094 Cover (OBSOLETE) $15.15 1 usually ships 1-5 days
815 192-0077 Screw M5 x 12mm socket head $0.89 3 ships same day
816 192-5961 Screw M4 x 12 recessed countersunk head $2.44 1 usually ships 30-75 days
817 192-0880 Washer M5 $0.89 1 ships same day
818 192-4681 Knurled nut M4 (OBSOLETE) $5.43 1 usually ships 1-5 days
819 192-2404 Bushing (OBSOLETE) $5.16 2 usually ships 1-5 days
820 192-0166 Spiral sealing wire (sold by the inch) (OBSOLETE) $1.66 20 in usually ships 1-5 days
821 192-0167 Lead seal (OBSOLETE) $2.20 1 usually ships 1-5 days
822 192-6242 Screw M6 x 16 safety (OBSOLETE) $2.64 2 usually ships 1-5 days
823 192-3252 Decorative strip 3 parts (OBSOLETE) $73.36 1 usually ships 1-5 days
824 192-1185 Screw M5 x 16mm countersunk head $2.44 2 usually ships 1-5 days
825 192-0383 Nut M5 hex $0.89 1 ships same day
826 192-0348 Screw M8 x 12mm truss head $2.44 1 ships same day
827 192-0216 Washer $1.22 2 ships same day
828 192-0151 Nut M6 hex $2.44 2 ships same day
