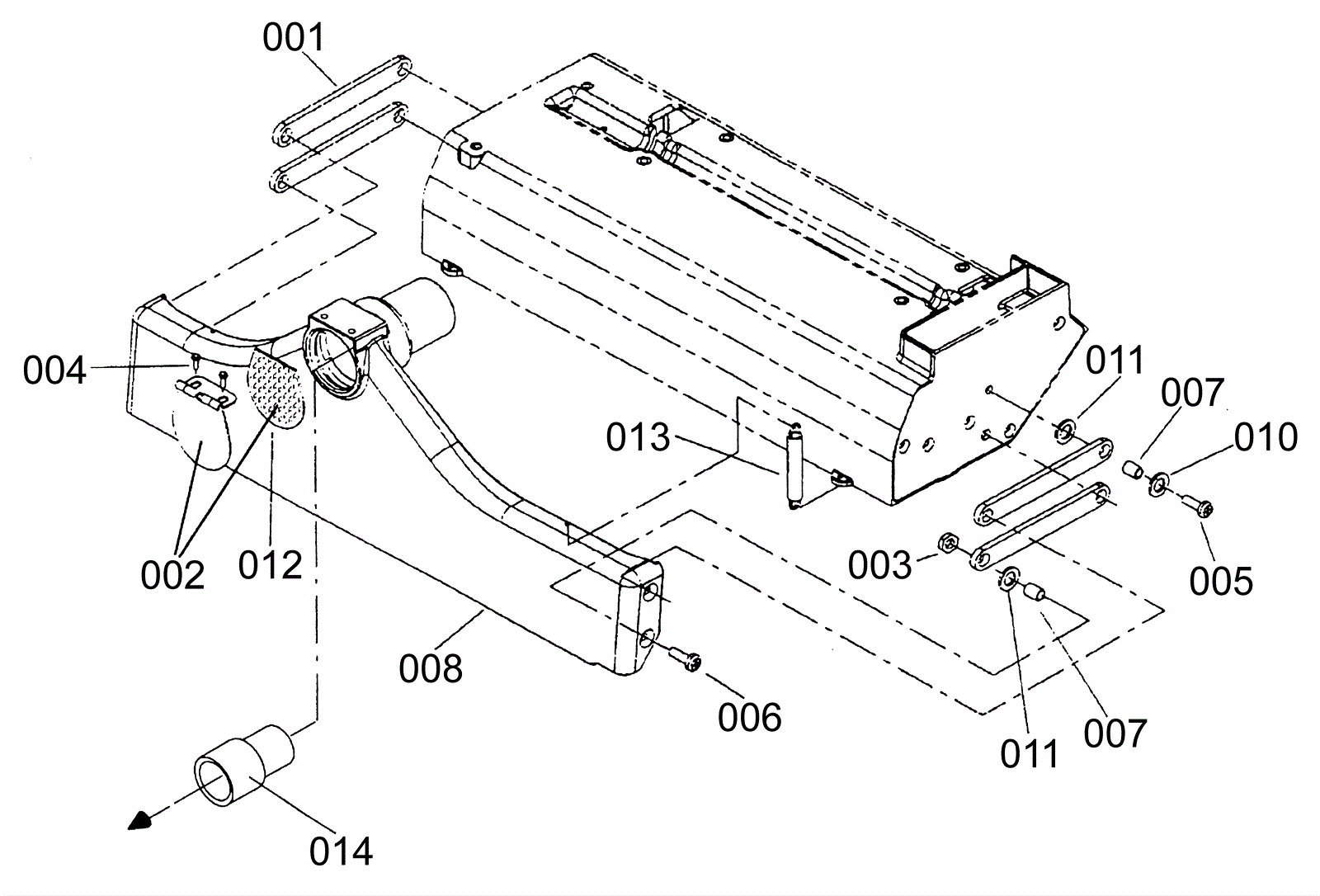

AQUAMAT 45 Vacuum Shoe Assembly

#PartDescriptionPriceReqNotesAvailability
001 192-7668 Vacuum shoe parallel arm $57.12 4 usually ships 1-5 days
002 192-3177 Cover with gasket $165.03 1 usually ships 1-5 days
003 192-0609 Intermediate ring $66.30 4 usually ships 30-75 days
004 192-7669 Screw10-32 x 3/8 hex head truss with star Call for price 2 usually ships 1-5 days
005 192-6264 Screw 1/4 - 20 x 3/4 inch screw head $2.44 4 usually ships 30-75 days
006 192-7670 Screw 1/4-20 x1 flat head cap screw plated Call for price 4 usually ships 1-5 days
007 192-2423 Bushing $46.88 8 usually ships 1-5 days
008 192-7238 Vacuum shoe AQ 45 $615.34 1 usually ships 1-5 days
010 192-0216 Washer $1.22 4 ships same day
011 192-7443 Washer 3/8 waved $8.87 8 usually ships 1-5 days
012 192-3983 Gasket $15.70 1 usually ships 1-5 days
013 192-6613 Spring 3/8 x 2-3/4 $19.24 2 usually ships 1-5 days
014 192-2430 Bushing $23.44 usually ships 1-5 days
