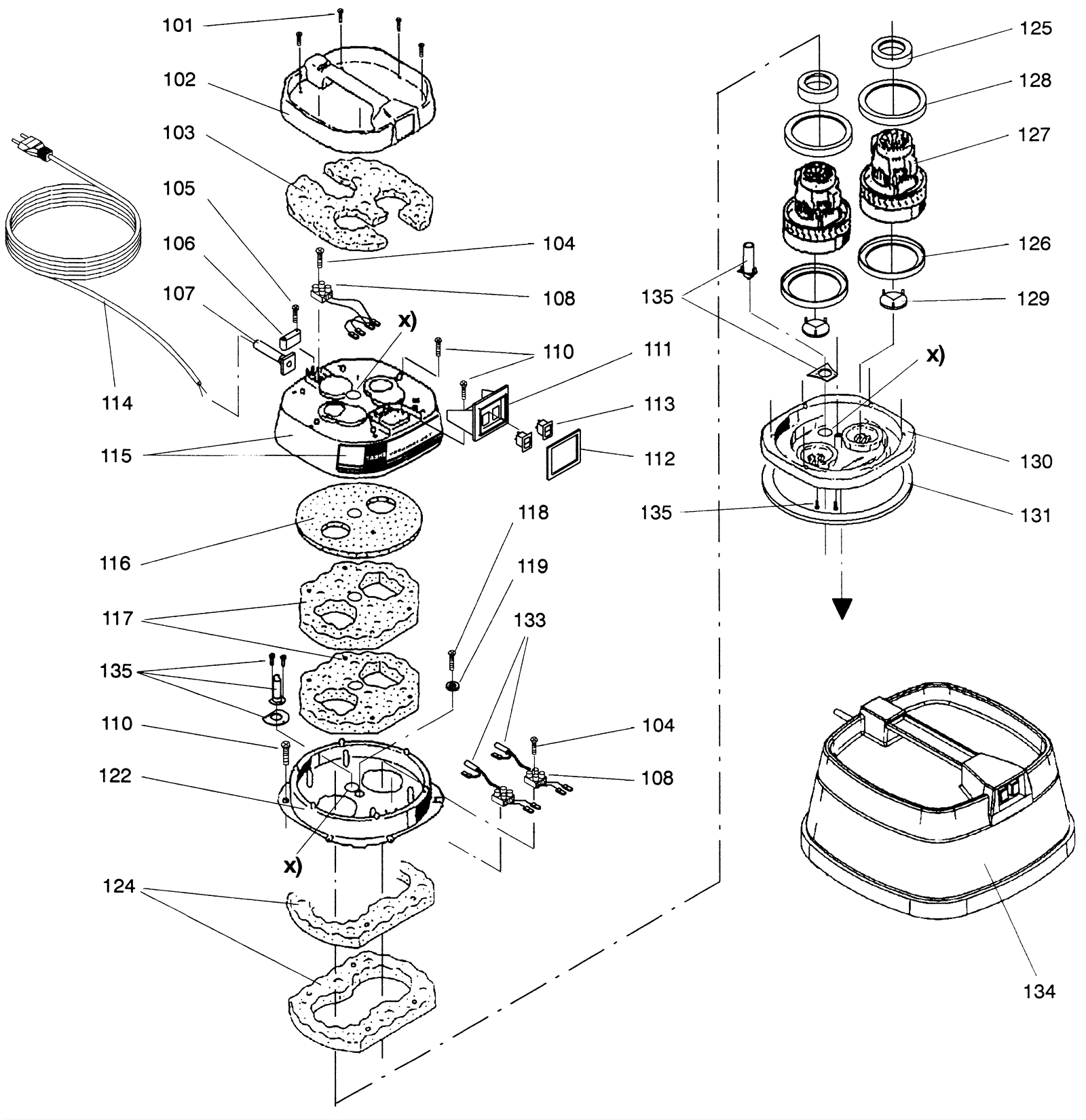

| # | Part | Description |
Req | Notes | Availability |
|---|
101 |
192-0539
|
Screw 50 x 20 |
6 |
|
|
102 |
192-3117
|
Cover |
1 |
|
|
103 |
192-5227
|
Noise absorbing foam |
1 |
|
|
104 |
192-0730
|
Screw KA 30 x 18 |
3 |
|
|
105 |
192-0054
|
Screw M3 x 16mm raised cheese head |
2 |
|
|
106 |
192-2797
|
Clamp |
1 |
|
|
107 |
192-2543
|
Cable grommet |
1 |
|
|
108 |
192-0260
|
2-way connection block |
3 |
|
|
110 |
192-0706
|
Screw M50 x 16mm for plastic |
12 |
|
|
111 |
192-6867
|
Switch housing |
1 |
|
|
112 |
192-3948
|
Gasket |
1 |
|
|
113 |
192-6924
|
Switch |
2 |
|
|
114a |
192-4921
|
120V 16/2 power cord (black) |
1 |
(OEM) |
|
114b |
991-5002
|
16/3 extension cord 50 foot (orange) |
1 |
(NON-OEM) |
|
115 |
192-4493
|
Housing |
1 |
|
|
116 |
192-5228
|
Noise absorbing foam |
1 |
|
|
117 |
192-5229
|
Noise absorbing foam |
2 |
|
|
118 |
192-6291
|
Screw 50 x 30 for plastic handle lever |
1 |
|
|
119 |
192-7421
|
Washer |
1 |
|
|
122 |
192-5114
|
Motor housing |
1 |
|
|
124 |
192-5230
|
Noise absorbing foam |
2 |
|
|
125 |
192-6202
|
Rubber ring |
2 |
|
|
126 |
192-6198
|
Rubber ring |
2 |
|
|
127 |
192-7255
|
120V vacuum motor |
2 |
|
|
128 |
192-6199
|
Rubber ring |
2 |
|
|
129 |
192-7323
|
Disc valve |
2 |
|
|
130 |
192-4494
|
Housing |
1 |
|
|
131 |
192-3949
|
Gasket |
1 |
|
|
133 |
192-5408
|
Overload switch |
2 |
|
|
134 |
192-7239
|
Upper part SEA vacuum cleaner 44T |
1 |
(includes 101-133 and 135) |
|
135 |
192-7336
|
Valve set |
1 |
(after 03/2005) |
|
