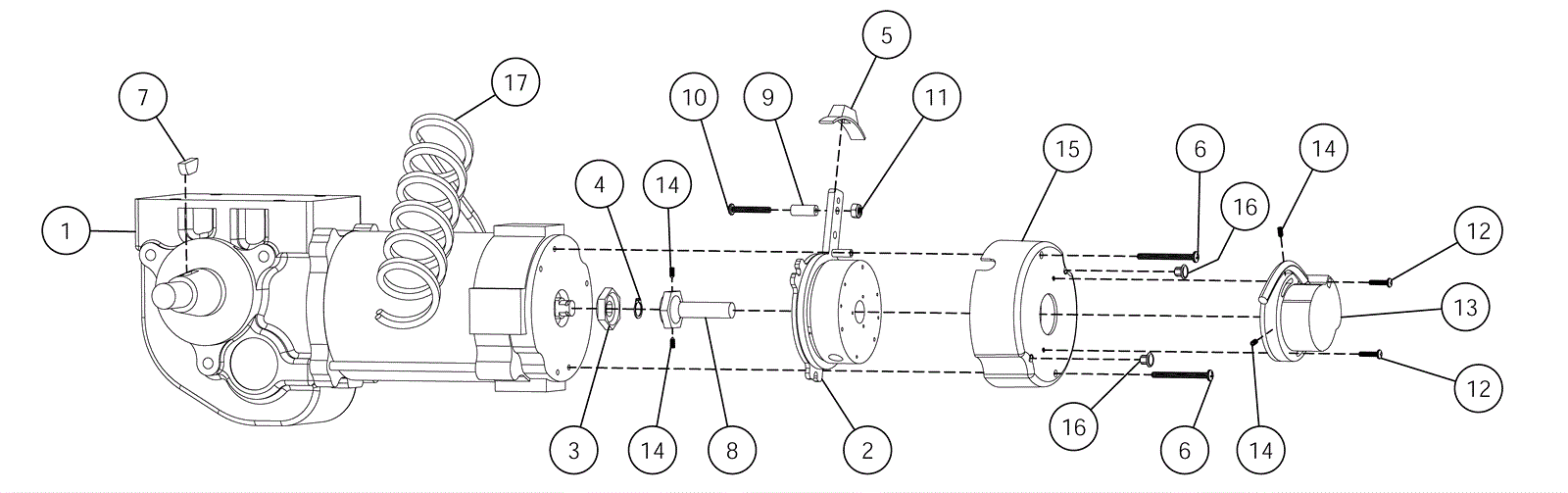

AEROBOT Rolling Chassis - Motor Left Assembly (1100040)

#PartDescriptionPriceReqNotesAvailability
1 N/A Not available Call for price 1 (drive motor) usually ships 3-26 days
2 N/A Not available Call for price 1 (brake) usually ships 3-26 days
3 N/A Not available Call for price 1 (hex nut) usually ships 3-26 days
4 N/A Not available Call for price 1 (snap ring) usually ships 3-26 days
5 N/A Not available Call for price 1 (brake cover) usually ships 3-26 days
6 N/A Not available Call for price 2 (screw) usually ships 3-26 days
7 292-9067 #606 woodruff key Call for price 1 usually ships 30-75 days
8 292-9080 Brake extension shaft Call for price 1 usually ships 30-75 days
9 292-9081 Female threaded round standoff Call for price 1 usually ships 30-75 days
10 292-8965 Screw machine pan phillips #6-32 x 1" Call for price 1 usually ships 30-75 days
11 292-8937 Nut nylon insert #6-32 Call for price 1 usually ships 30-75 days
12 292-9082 Screw machine pan phillips #4-40 x 1/2 inch Call for price 2 usually ships 30-75 days
13 292-9083 Optical encoder Call for price 1 usually ships 30-75 days
14 292-9084 Set screw Call for price 4 usually ships 30-75 days
15 292-9085 Brake end cap Call for price 1 usually ships 30-75 days
16 292-8853 Cap (black) $1.25 2 usually ships 30-75 days
17 292-9086 Wire Call for price 1 usually ships 30-75 days
