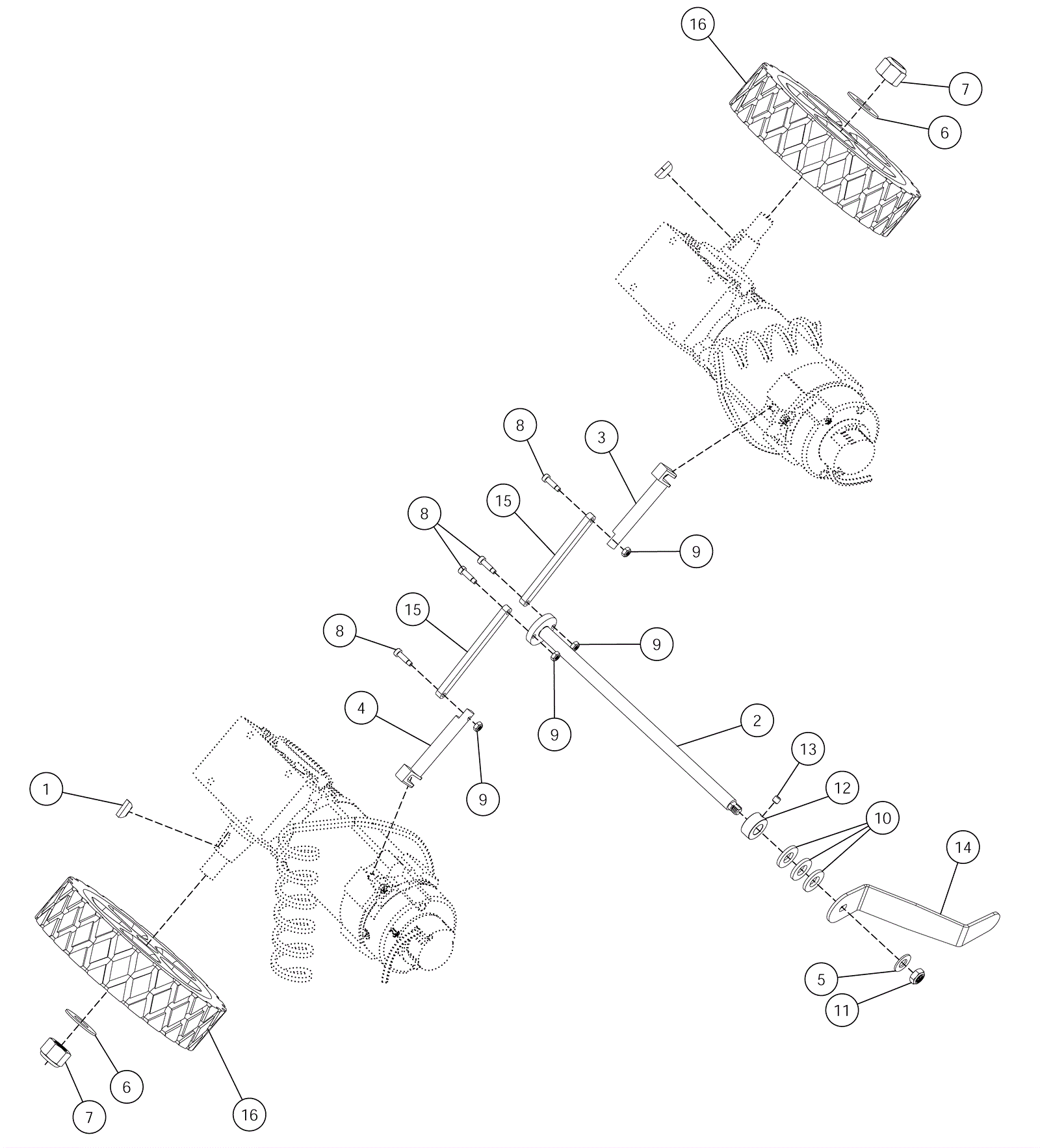

AEROBOT Rolling Chassis Subframe Assembly (2100025) - Brake and Motor

#PartDescriptionPriceReqNotesAvailability
1 292-9067 #606 woodruff key Call for price 2 usually ships 30-75 days
2 292-9068 Brake connecting rod weldment Call for price 1 usually ships 30-75 days
3 292-9069 Right hand brake pin Call for price 1 usually ships 30-75 days
4 292-9070 Left hand brake pin Call for price 1 usually ships 30-75 days
5 292-9059 3/8 inch Washer flat Call for price 2 usually ships 30-75 days
6 292-9037 1/4 inch washer flat Call for price 2 usually ships 30-75 days
7 292-9071 Nut nylon inseer 0.625 inch -18 Call for price 2 usually ships 30-75 days
8 292-9072 Shoulder bolt slottedd #8-32 x 0.5 inch Call for price 4 usually ships 30-75 days
9 292-9073 Nut nylon insert #8-32 Call for price 4 usually ships 30-75 days
10 292-9074 Bearing oil impregnated 1/2 inch Call for price 3 usually ships 30-75 days
11 292-9027 Nylon insert nut 3/8-16 inch Call for price 1 usually ships 30-75 days
12 292-9075 Shaft collar Call for price 1 usually ships 30-75 days
13 292-9075 Shaft collar Call for price 1 usually ships 30-75 days
14 292-9077 Brake handle Call for price 1 usually ships 30-75 days
15 292-9078 Brake link - overcenter Call for price 2 usually ships 30-75 days
16 292-9079 8 inch drive wheel Call for price 2 usually ships 30-75 days
